NEC DT20 Multifunction XGA 2800
ANSI Lumen LCD Video Projector
OVERVIEW

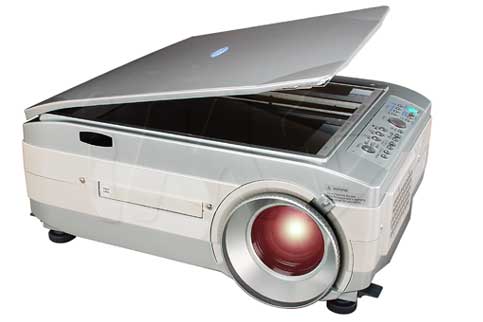

- NEC dt-20 Multifunction LCD Video Projector
Unconventional presentations emerge more often than expected.
Just knowing that actual product prototypes can easily be projected
in 3D for detailed critiquing or important evidence will get the
point across in the courtroom can benefit you and your audience.
NEC’s DT20 multifunction projector is a 5 in 1 solution for
increased presentation power. Display catalogs and other printed
materials. View transparencies, X-rays and more. Connect and project
slides from your PC. Show multimedia presentations from a VCR, DVD
and even video cameras. Plus place 3D objects onto the flatbed and
view the dimensions all in real time.
True XGA resolution and has a light output up to 2800 ANSI lumens.
You also have the added benefit of zooming in on even the smallest
of details, up to 625%. This one-touch projector is perfect for
manufacturing, engineering, government, courtrooms and schools.
Reveal the details from all sides with the DT20.
SPECIFICATIONS
- nec DT-20 XGA LCD video projector
Users manual, wireless
remote control, power cable, signal cable, registration card
Lens
Manual
Zoom and Focus F1.8-2.3, f=51.0-64.3mm
External
Controls
RS232, IR
Power Requirments
100-120VAC/220-240VAC, 50/60Hz
Power
Consumption
390W average
Warranty
Registered owners receive a 2-year limited, parts and labor
warranty including InstaCare. InstaCare provides the original
owner with 3 business day repair and return of your projector.
Lamp life is 6 months or 1500 hours
Contrast
Ratio
350:1
Resolution
1024x768 pixels native, up to UXGA with Advanced AccuBlend ™
RGB -1024dots (H) x 768dots (V)
Light
Output
2800 ANSI lumens 2500
ANSI (ECO mode)
Lamp
260W
NSH
Size
30-300 inches
Keystone Correction - type
±
15°vertical, + 10° horizontal electronic
Input
Current
4.5A (100-120VAC), 2.2A
(200-240VAC)
Pixel Clock Frequency
102MHz
Horizontal Resolution
NTSC/PAL/NTSC4.43 500TV
lines, SECAM 300 TV lines,
Installation Orientation
Floor/Front, Floor/Rear,
Dimensions (WxHxD)
15.7”x 12.4”x 5.7”,
400x315x145mm excluding feet and lens
