NEC HT1100 Home Theater HDTV DLP
Video Projector With
Anamorphic Lens , Da-Lite 106" Model
B With CSRScreen
and Ceiling Mount.
OVERVIEW -

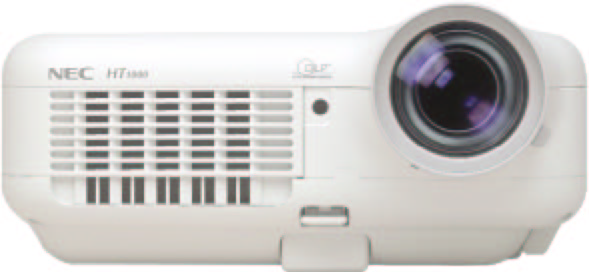

NEC HT1100 Home Theater Projector
The
award winning Showcase Series NEC HT1100 Home theater DLP video
projector, with phenomenal 3500:1 contrast ratio truly brings you into the
action with film like images. The intense color palette, sharp contrast and
fine details combine to create the ultimate sensory experience. From HDTV,
satellite and cable TV to DVDs, computers and video games, NEC’s HT1100
transforms your living room into an entertainment extravaganza. The HT-1100
supports 16:9, 4:3 and other popular aspect ratios. With uncompromising
image display, extraordinary picture quality and unsurpassed compatibility,
the HT1100 is the home theater video projector that will knock your socks off!
Detailed Features - NEC HT1100 Home theater HDTV
video Projector:
Phenomenal 3500:1 optical contrast ratio achieved with
variable IRIS that allows for fine-tuning of image contrast.
1080i, 1080p and 720p HDTV display and 576i, 576p,
480i and 480p SDTV display.
16:9 display at 1024x576 resolution delivers over 30% more
pixel resolution than WVGA projectors
Non linear image expansion –when displaying 4:3 data
on a 16:9 screen fill the full 16:9 screen display with non-linear image
management while maintaining the normal look and feel of the information.
SweetVision II proprietary chip based technology delivers
exceptional picture management adjustments for both progressive or
interlaced sources for more vibrant images, more realistic colors and
blacks richer with detail.
3D 10-bit video decoder from NEC for expanded black levels
and adaptive gamma correction that further expands contrast and enhances
color and skin tone accuracy while reducing video noise.
VORTEX Technology Plus – breakthrough image
processing technology including advanced color management system for
individual color correction control of seven color settings – RGB, CYMW as
well as sRGB control.
Robust aspect ratio control including 16:9, 4:3, 1.85:1
and 2.35:1
Anamorphic mode-optimizes settings for using an optional
anamorphic lens.
Telecine 3:2 and 2:2 pull down correction for film
like reproduction.
Enhanced color wheel provides the highest video
quality and color reproduction.
Picture adjustment settings–intuitive, easy to navigate
preset adjustments to help you fine tune with ease.
Vertical image shift –similar to motorized lens
shift, the user can move the position of the image in a 16:9 screen
display enhancing overall screen and projector placement options.
3D Reform technology for positioning the projector in off
center locations in the room and still get aligned images.
Network capable with optional wired card.
Whisper quite at <29dB in Eco-mode
Digital photo viewer to display images from digital
camera compact flash cards.
Eco-mode lamp technology for increased lamp life
SPECIFICATIONS - NEC
HT-1100 Home Theater HDTV Video Projector
1 DVI-D, 1 RGB, 1 S-Video, 1 Video, 1 3-RCA Component Video, 1 PC Card,
4 Stereo Mini Audio
Environment
Operational Temperature 41° to 95° F / 5° to 35°C
Humidity: 20-80% non-condensing
Storage: 14° to 122°F / -10° to 50°C
Regulations
USA: UL 1950 FCC Class B
Canada: CSA950 ( C-UL )
Mexico: NOM-001-SCF1-1993,CISPR22
Accessories Included
Users manual, backlit wired remote control, D-sub signal cable, audio
cable, composite video cable, svideocable, component video cable,
carrying bag, quick connect guide and registration card
Lens
Manual zoom, Manual focus and Manual IRIS F=2.5-4.5, f=22.2-26.7 mm
External Controls
RS232, LAN (AMX/Crestron compatibility)
Power Requirements
100-120VAC/200-240VAC, 50/60Hz
Power Consumption
290W (0.6W Standby)
Warranty
Registered owners receive a 2-year limited parts and labor
warranty. When used under normal operating conditions, the lamp is
covered for 90 days or 500 hours, whichever comes first.
Horizontal: 15 to 100 kHz (RGB 24 kHz)
Vertical: 48 to 100 Hz
Screen Controller Trigger
1 Screen Trigger, 1 Serial/PC Control
Panel
Single chip 12 degree DMD, 5x speed, 6 segment color wheel
Keystone Correction
±25 degree Horizontal
±40 degree Vertical
SPECIAL FEATURES - NEC
HT1100 Home Theater DLP Video Projector
SweetVision II
NEC’s proprietary video processing circuitry enabling contrast
enhancement, detail enhancement,
gamma correction, black expansion, deinterlacing and 3:2 pulldown
Variable IRIS
Ability for user to manually adjust contrast up to 3500:1 with minimal
reduction of light output
3-D Reform
Allows flexible placement of projector for square image display-adjusts
horizontal, vertical and diagonal keystone correction
High Definition
Signal compatibility with HD (1080i, 1080p, 720p) compatibility and SD
(576i, 576p, 480i, 480p) inputs for the best quality display
Quiet Operation
With whisper quiet noise levels at less than 29dB, you won’t be
straining to hear and enjoy the show
Built-in Digital Photo
Digital Photos (certain formats) on a PC Card can be projected Viewer
directly from the projector
Networkable
Remote diagnostic and control available via IP address with optional
wired PC network card (pmcia)
VORTEX Technology Plus
Provides uncompromising display of video and data. Improves white level,
color accuracy, dynamic range, and display of varying levels of black in
an image. Color correction system enables six-axis
adjustment of CMY and RGB for display of personal color preferences.
Anamorphic Mode
Mode for use with an anamorphic lens and appropriate aspect ratio
control for both 4:3 and 16:9
Vertical image shift
When the 16:9 screen setting is selected, users can adjust the position
of the image up or down to optimize for the height of the screen
depending on the selected source and amount of 3D Reform used.
Full screen display
Whether using a 16:9 or 4:3 screen, fill the display area even when
using non native source material and eliminate black bar display
HDCP compatible
Through the DVI-D input, content will be recognized with HDCP encryption
Eco-Mode Technology
Increase lamp life through light output adjustments
