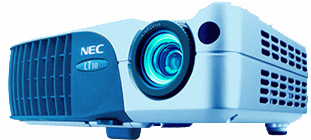

When traveling, don't you demand the most portable, lightweight
projector with enough power to make you shine? The LT10's sleek
design allows you to slide the projector in your briefcase along
side your laptop and still have room for files. Being small doesn't
mean having to sacrifice the quality of your presentations. With XGA
native resolution and 2000:1 contrast ratio, the LT10 is sure to
captivate any audience. The LT10's optimized video performance is
sure to impress while the Carl Zeiss optics will display your
message with confidence.
Operational Temperature 41 to 95°F / 5° to 35°C
Humidity: 20-80% non-condensing
Storage: -4° to 140°F / -20 to 60°C
Regulations
USA UL 1950 FCC Class B
Canada CSA950 ( C-UL )
Accessories Included
projector, lens cap, power cord, VGA cable, s-video cable,
composite video cable, user’s manual on CD-ROM, carrying case,
remote control, battery, quick start guide, warranty card
External
Controls
N/A
Power Requirements
100-120VAC/200-240VAC, 50/60Hz
Power
Consumption
190W Maximum
Warranty
Registered owners receive a 2-year limited, parts and labor
warranty. The first year is covered by InstaCare. InstaCare
provides the original owner limited concurrent 3-business day
repair/return or next business day exchange. The lamp when used
under normal operating conditions is warranted for 500 hours or
3 months, whichever comes first.
Contrast
Ratio
2000:1
Resolution
1024x768
pixels native up to SXGA
Light
Output
1100 ANSI typical
Lamp
120W
user replaceable P-VIP lamp
Projection Distance
48” – 392 inches, 1.2m –
10m
Image Size
30 - 240
inches diagonal
Input
Current
4A (100-120VAC), 2A
(200-240VAC)
Pixel Clock Frequency
135MHz
Horizontal Resolution
NTSC, NTSC4.43,
PAL/PAL-M/PAL-N/PAL-60 – 540 TV lines
SECAM - 300 TV lines, Y/Cb/Cr –540 TV lines, RGB -1024dots (H) x
768dots (V)
