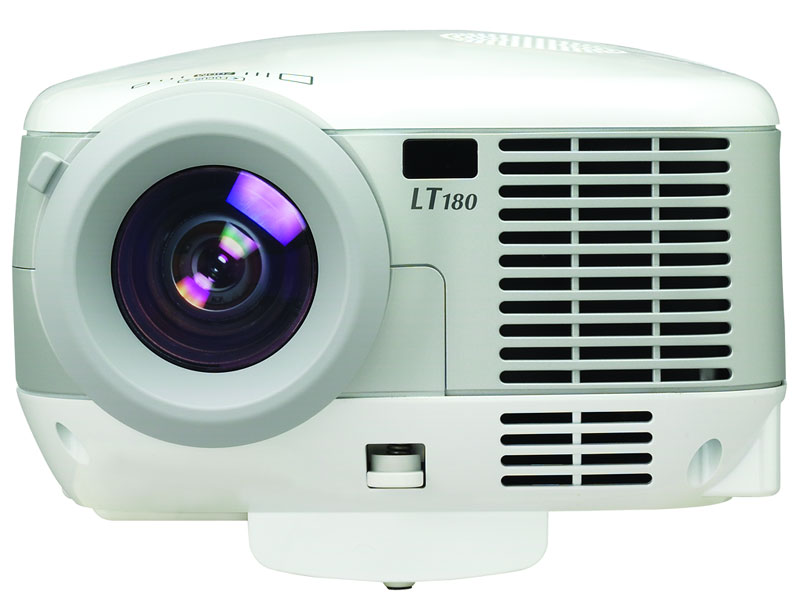

NEC LT180 XGA 2000 ANSI Lumens DLP Video
Projector
OVERVIEW - NEC LT180 DLP
Video Projector
Engage.
High resolution display. XGA (1024 x 768) native resolution.
High contrast. 1000:1.
Advanced AccuBlend. Ensures detailed images even when non-native
resolution sources are connected to the projector.
Real life colors. VORTEX Technology Plus breakthrough image
processing technology improves white balance, color accuracy, dynamic
range and varying levels of black in an image.
HDTV capable and DLP technology.
Access.
Autosense. Intuitively syncs the projector with most computer
signals and features one-touch image optimization.
Leveling technology. Adjustable rear foot can be used to level
image.
Always be square. Keystone adjustments can be made by pressing a
button on the supplied remote control.
Project on almost any color wall. Preset selections provide for
adaptive color tone correction when projecting onto a non-white screen
material or walls.
Extensive connections. Component video, s-video, composite video,
RGB and two audio inputs and PC control port.
Monitor output and variable audio out.
Rely.
Extended lamp life. Eco-mode technology increases lamp life by up
to 50% for up to 3,000 hours.
Security features. Enhanced multi-level security features protect
your investment.
Lamp life. Can be verified by pressing a button on the remote
control.
FEATURES - Nec Lt180 Dlp
Projector
Professional video quality
Up to 3000 hour lamp life
Quick and easy set up
Extensive connections
Square shot adjustments via remote
Adjustable rear foot for horizontal tilt correction
Operational Temp. 41° to 95°F / 5°
to 35°C
Humidity: 5-80% non-condensing
Storage: -4° to 140°F / -20° to 60° C
Regulations
USA: UL 60950 FCC Class B
Canada: CSA 60950, Class B
Mexico: NOM-001-SCFI-1993
Accessories
Included
Projector, lens cap, power cord,
RGB signal cable, CD-ROM containing user manual, carrying case, remote
control, (2) AAA batteries, quick start guide, product registration card
Power
Requirements
100-120VAC/200-240VAC, 50/60Hz
Power
Consumption
280W normal mode, 220W in
Eco-mode, 7W in standby mode
Warranty
Registered owners receive a 2-year
limited, parts and labor warranty including InstaCare. InstaCare
provides the original owner one year of either limited 3 business day
repair/return or next business day exchange. The lamp when used under
normal operating conditions is covered for 500 hours or 3 months,
whichever comes first.
Contrast Ratio
1000:1
Resolution
1024 x 768 pixels native, up to
SXGA+ (1400 x 1050) with Advanced AccuBlend
Light Output
2000/1600 standard/Eco-mode
Lamp
210 Watts DC, Eco-Mode 168 Watts
Projection
Distance
32 to 264
Projection
Angle
10.5°(T) to 12.4°(W)
Image Size
30 - 200 inches diagonal
Input Current
3.2A (100-120VAC), 1.5A
(200-240VAC)
Pixel Clock
Frequency
135MHz
Horizontal
Resolution
540 TV lines: NTSC, NTSC4.43,
PAL/PAL-M/PAL- Resolution N/PAL-60, Y/Cb/Cr 300 TV lines: SECAM
