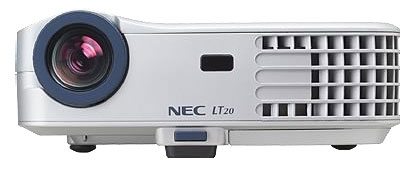

KEY POINTS - LT20E Nec 1500 ANSI Lumens Portable Dlp Video Projector:
1500 ANSI lumens
XGA 1024x768 native resolution
2000:1 contrast ratio
Compact and lightweight
Fits in your briefcase
One-touch operation
SUMMARY - Nec lt20e 1500 ANSI Lumens Portable Dlp Video Projector:
Loaded into a chassis with the footprint of a DVD case and weighing only 2.2lbs, the NEC LT20 portable projector is chock-full of intelligent features tuned to maximize on-the-road presentation impact. And plug and project functionality allows you to seal the deal quickly while projecting in an instant. With these and many more powerful features, the LT20 is sure to make you a victorious road warrior
DETAILED SPECS - NEC LT20E PORTABLE DLP PROJECTOR:
Display
Technology
.7 in DLP
Native
Resolution
XGA
1024x768
Maximum
Resolution
UXGA
1600x1200
Light
Output (lumens)
1500
normal/1300 eco
Contrast
Ratio
2000:1
Lamp Type
156W UHP
Lamp Life
(up to)
2000
hours normal, 3000 hours eco
Screen
Size (diagonal)
30-240
in, 762-6096 mm
Throw
Ratio
1.6 -
1.94
Projection Distance
4.0 to
38.82 ft, 1.22 to 11.8 m
Projector
Angle
9.5° tele/13.7°
wide
Zoom Lens
Manual
Focus
Manual
F-number,
f-number
F=2.7-2.88, f=28.4-32.8 mm
Shift
-
Keystone
Correction
Keystone
Correction +/- 8° vertical
Horizontal Scan Rate
15 to 80
kHz (non interlaced)
Vertical
Scan Rate
50 to 85
Hz
Supported
Video Standards
NTSC,
4.43 NTSC, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD
Video Signal Compatibility
480i,
480p, 576p, 720p, 1080i
PC Signal
Compatibility
VGA, SVGA,
XGA, SXGA+
Macintosh
Compatibility
Yes
Input/Output Terminals
RGB 1
(analog)
15-pin
mini D-sub
RGB 2
(analog)
-
RGB 3
(digital)
-
Video 1
Composite
RCA x 1
Video 2
S-Video
4-Pin DIN
Video 3
-
HD Video
1
-
HD Video
2
-
Audio
-
Monitor
out
-
Audio out
-
Audio
No
External
Control
IR
Sync
Compatibility
Separate
Sync/Composite Sync/Sync on G
Networking
None
Power
Req.
100-120VAC/200-240VAC, 50/60Hz
Input
Current
2.0A
(100-120VAC), 2.0A (200-240VAC)
Power
Consumption
200W
Installation Orientation
Floor/Front, Floor/Rear
Dimensions (WxDxH)
7.8x5.9x2.9 in , 200x151x56 mm
Net
Weight
2.2 lbs,
.96 kg
Fan Noise
35dB
Regulations
USA UL
1950 FCC Class B, Canada CSA950 (C-UL)
Operational Temp.
41° to
95°F / 5° to 35°C
Humidity
20-80%
(non-condensing)
Storage
-14° to
122°F / -20° to 60°C
Warranty
Registered owners receive a 2-year limited, parts and labor
warranty including InstaCare. InstaCare provides the original
owner one year of either limited 3 business day repair/return
or next business day exchange. The lamp when used under normal
operating conditions is covered for 500 hours or 3 months,
whichever comes first.
Additional Features
SquareShot
No
VORTEX
Technology Plus
Breakthrough image processing technology improves white level,
color accuracy, dynamic range and varying levels of black in
an image.
Autosense
Automatically syncs with any computer signal and features one
touch image optimization.
SweetVision II
No
3D Reform
No
Automatic
keystone correction
No
Built-in
Wall Color Correction
No
Advanced
AccuBlend
Ensures
detailed images when non-native resolution sources are
connected to the projector.
Kensington Lock Slot
No
Magnification
No
Sleep
Timer
No
Eco-Mode
Technology
Extends
lamp life, lowers audible noise and reduces total cost
Discreet
Source Keys
No
Computer
free presentations
No
High
speed wireless
No
Direct
Power Off
In the
Box
Users
manual, wireless remote control, D-sub signal cable, power
cable, set up guide, registration card
