Unique Features: |
Extensive input capabilities Advanced video processing Enhanced security features |
|
Optical: |
|
| Display Technology |
0.7 in LCD |
|
Resolution: |
|
| Native |
XGA 1024 x 768 |
| Maximum |
UXGA 1600x1200 |
| Light Output (lumens) |
2500 normal/ eco |
| Contrast Ratio |
600:1 |
| Lamp Type |
200W DC |
| Lamp Life (up to) |
2000 hours normal, 3000 hours eco |
| Screen Size (diagonal) |
21-300 in, 533-7620 mm |
| Throw Ratio |
1.5 - 1.8 |
| Projection Distance |
2.3 to 35.8 ft, .71 to 10.9m |
| Projector Angle |
9.5 - 12.1 |
|
Lens: |
|
| Zoom |
Manual |
| Focus |
Manual |
| F-number, f-number |
F=1.7 to 2.0, f=21.6 to 25.9mm |
| Shift |
- |
| Keystone Correction |
Manual/Automatic +/- 40º |
| Signal Compatibility/Connectivity |
|
|
Scan Rate: |
|
| Horizontal |
15 to 100 kHz |
| Vertical |
48 to 120 Hz |
| Supported Video Standards |
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM |
| SD/HD Video Signal Compatibility |
1080i, 720p, 576p, 576i, 480p, 480i |
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, SXGA+, UXGA |
| Macintosh Compatibility |
Yes |
|

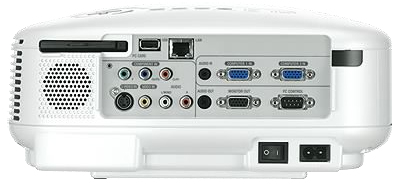

Input/Output Terminals: |
|
| RGB 1 (analog) |
15 pin |
| RGB 2 (analog) |
15 pin |
| RGB 3 (digital) |
DVI-D w/ HDCP |
| Video 1 |
Composite |
| Video 2 |
S-Video |
| Video 3 |
YCbCr component |
| HD Video 1 |
- |
| HD Video 2 |
- |
| Audio |
1 set RCA, 1 mini |
| Monitor out |
yes |
| Audio out |
VAO |
| Audio |
1W monaural |
| External Control |
RS232, IR |
|
Click For Larger Image |
| Sync
Compatibility |
Separate Sync/Composite Sync/Sync on G |
|
Networking |
Wired LAN using integrated RJ45, 802.11g wireless with optional card |
|
Electrical: |
|
| Power Req. |
100 - 240VAC, 50/60Hz |
| Input Current |
1.4 - 3.3A |
| Power Consumption |
292W/230W (eco), 16W (stand by), 10W (power saver) |
|
Mechanical: |
|
| Installation Orientation |
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
| Dimensions (WxDxH) |
11.6x11.4x4.7 in, 295x290x122mm |
| Net Weight |
7.7 lbs, 3.5 kg |
| Fan Noise |
35 dB normal/30 dB eco |
| Regulations |
USA UL 1950 FCC Class B, CSA950 (C-UL), NOM |
|
Environmental: |
|
| Operational Temp. |
41° to 104°F / 5° to 40°C |
| Humidity |
20-80% (non-condensing) |
| Storage |
14° to 122°F / -10° to 50°C |
| Warranty |
Registered owners receive a 3-year limited warranty including InstaCare. Includes three year limited warranty on parts and one year limited warranty on labor. The lamp is covered for one year or 500 hours - whatever comes first. InstaCare provides the original owner one year of either limited 3 business day repair/return or next business day exchange. |
|
Additional Features: |
|
| SquareShot™ |
Instantly project a square image even when the projector is set up at a steep offset angle to the screen. |
| VORTEX™ Technology Plus |
Breakthrough image processing technology improves white level, color accuracy, dynamic range and varying levels of black in an image. |
| Autosense™ |
Automatically syncs with any computer signal and features one touch image optimization. |
| SweetVision II™ |
No |
| 3D Reform™ |
Provides the ability to square the image by adjusting 3D Reform horizontally, vertically or diagonally when the projector can not be placed parallel or perpendicular to the screen. |
| Automatic keystone correction |
No |
| Built-in Wall Color Correction |
Presets provide for adaptive color tone correction to display properly on non-white surfaces. |
| Advanced AccuBlend™ |
Ensures detailed images when non-native resolution sources are connected to the projector. |
| Kensington Lock Slot |
Enables security cable to be attached to projector. |
| Image Magnification |
64-step image magnification with location control |
| Sleep Timer |
Count down timer can be set to automatically turn off the projector |
| Eco-Mode™ Technology |
Extends lamp life, lowers audible noise and reduces total cost |
| Discreet Source Keys |
No |
| Computer free presentations |
No |
| High speed wireless |
No |
| Direct Power Off |
No |
| In the Box |
carrying case, remote control,
batteries, power cord, RGB signal cable, lens cap, user’s manual on CD-ROM, quick start guide, product registration card |
| Key Points |
Real-time wireless presentations - 802.11g
Integrated RJ45 for quick connection to LAN
Remote diagnostics |
