KEY POINTS - Nec
lt380 LCD Multimedia Video Projector:
3000 ANSI lumens
XGA 1024x768 native resolution
600:1 Contrast Ratio
Integrated RJ45 connection
802.11g wireless capable
Optimized video performance, including DVI-D with HDCP
SUMMARY - Nec lt380 3000 ANSI Lumen XGA Multimedia Projector:
With blazingly fast wireless networking and a multitude of data-sharing options, the LT380 keeps you connected in all the right ways. And industry-leading technologies with enhanced video processing enable you to quickly engage with your audience.
DETAILED SPECS - NEC LT380 3000 ANSI LUMEN LCD
VIDEO PROJECTOR:
Unique Features:
Extensive input capabilities Advanced video processing Enhanced security features
Optical:
Display Technology
0.8 in LCD
Resolution:
Native
XGA 1024 x 768
Maximum
UXGA 1600x1200
Light Output (lumens)
3000 normal/2200 eco
Contrast Ratio
600:1
Lamp Type
200W DC
Lamp Life (up to)
2000 hours normal, 3000 hours eco
Screen Size (diagonal)
21-300 in, 533-7620 mm
Throw Ratio
1.5 - 1.8
Projection Distance
2.3 to 29.5 ft, .69 to 9.0m
Projector Angle
8.5 - 11.2
Lens:
Zoom
Manual
Focus
Manual
F-number, f-number
F=1.7 to 2.0, f=24.2 to 29mm
Shift
-
Keystone Correction
Manual/Automatic +/- 40º
Signal Compatibility/Connectivity
Scan Rate:
Horizontal
15 to 100 kHz
Vertical
48 to 120 Hz
Supported Video Standards
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility
1080i, 720p, 576p, 576i, 480p, 480i
PC Signal Compatibility
VGA, SVGA, XGA, SXGA, SXGA+, UXGA
Macintosh Compatibility
Yes

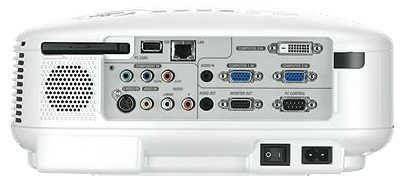

Input/Output Terminals:
RGB 1 (analog)
15 pin
RGB 2 (analog)
15 pin
RGB 3 (digital)
DVI-D w/ HDCP
Video 1
Composite
Video 2
S-Video
Video 3
YCbCr component
HD Video 1
-
HD Video 2
-
Audio
1 set RCA, 1 mini
Monitor out
yes
Audio out
VAO
Audio
1W monaural
External Control
RS232, IR
Sync
Compatibility
Separate Sync/Composite Sync/Sync on G
Networking
Wired LAN using integrated RJ45, 802.11g wireless with optional card
Click For Larger Image
Electrical:
Power Req.
100 - 240VAC, 50/60Hz
Input Current
1.4 - 3.3A
Power Consumption
292W/230W (eco), 16W (stand by), 10W (power saver)
Registered owners receive a 3-year limited warranty including InstaCare. Includes three year limited warranty on parts and one year limited warranty on labor. The lamp is covered for one year or 500 hours - whatever comes first. InstaCare provides the original owner one year of either limited 3 business day repair/return or next business day exchange.
Additional Features:
SquareShot
Instantly project a square image even when the projector is set up at a steep offset angle to the screen.
VORTEX Technology Plus
Breakthrough image processing technology improves white level, color accuracy, dynamic range and varying levels of black in an image.
Autosense™
Automatically syncs with any computer signal and features one touch image optimization.
SweetVision II™
No
3D Reform™
Provides the ability to square the image by adjusting 3D Reform horizontally, vertically or diagonally when the projector can not be placed parallel or perpendicular to the screen.
Automatic keystone correction
No
Built-in Wall Color Correction
Presets provide for adaptive color tone correction to display properly on non-white surfaces.
Advanced AccuBlend™
Ensures detailed images when non-native resolution sources are connected to the projector.
Kensington Lock Slot
Enables security cable to be attached to projector.
Image Magnification
64-step image magnification with location control
Sleep Timer
Count down timer can be set to automatically turn off the projector
Eco-Mode™ Technology
Extends lamp life, lowers audible noise and reduces total cost
Discreet Source Keys
No
Computer free presentations
No
High speed wireless
No
Direct Power Off
No
In the Box
carrying case, remote control,
batteries, power cord, RGB signal cable, lens cap, user’s manual on CD-ROM, quick start guide, product registration card
Key Points
Real-time wireless presentations - 802.11g Integrated RJ45 for quick connection to LAN Remote diagnostics
