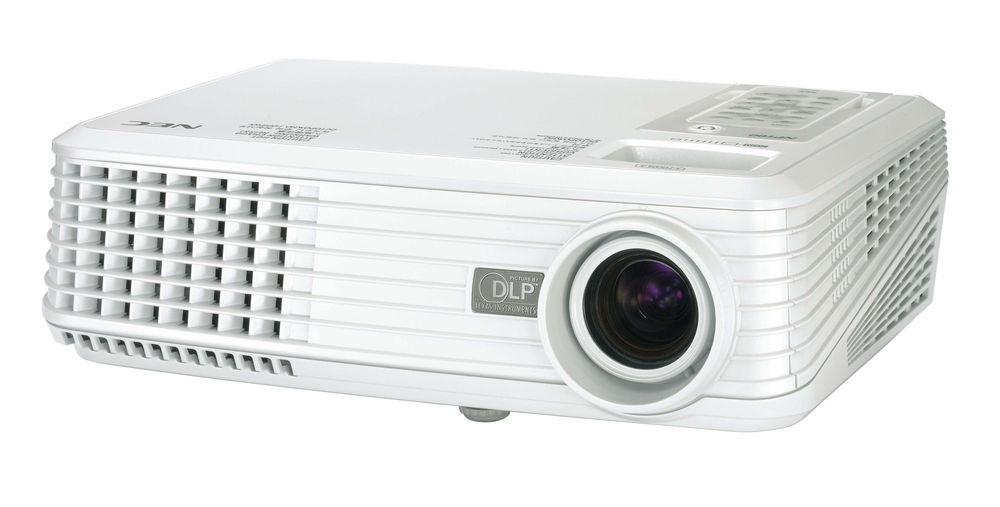

Nec NP100 Portable Dlp Projector nec np100

KEY POINTS - NP100 Nec 2000 ANSI Lumens Portable DLP Video Projector:

Native 800 x 600 SVGA resolution

2000 ANSI lumens brightness

1200:1 contrast ratio

Flexible input panel connects with computer, composite video and S-video

Compact size and lightweight design

10-step magnification with location control allows you to zoom in on key information

ECO Mode technology helps extend lamp life up to 4000 hours

SUMMARY - Nec np100 2000 ANSI Lumens Portable DLP Video Projector:

Affordability meets high-contrast brilliance with the NEC NP100, a portable video projector that helps you deliver presentations with confidence. The NP100 displays bright, amazing images from the latest DLP engine, is compact, lightweight, easy to use and sets up quickly, making it ideal for use in meeting and conference rooms.

DETAILED SPECS - NEC NP100 PORTABLE DLP PROJECTOR:

Key Points

Affordable, Long lamp life, Plug and play

Unique Features

Monitor out, Built-in speaker, Portable

Optical

Display Technology

0.55" DLP

Resolution

Native

SVGA 800 x 600

Maximum

SXGA 1280 x 1024

Light Output (lumens)

2000 normal, 1800 eco

Contrast Ratio

1200:1

Lamp Type

180W AC

Lamp Life (up to)

3500 normal, 4000 eco

Screen Size (diagonal)

28 to 300 in, / .7 to 7.6 m

Throw Ratio

1.9 to 2.1

Projection Distance

3.9 to 39.4 ft. / 1.2 to 12m

Projector Angle

14 degrees wide / 12.8 degress tele

Lens

Zoom

1.0 to 1.1

Focus

Manual

F-number, f-number

F=2.41 to 2.55mm, f=21.83 to 24mm

Shift

Keystone Correction

Manual +/- 40 degrees

Signal Compatibility/Connectivity

Scan Rate

Horizontal

31.35 to 68.7 kHz

Vertical

56 to 85 Hz

Supported Video Standards

NTSC, NTSC4.43, PAL-M, N, B, G, H, I, SECAM

SD/HD Video Signal Compatibility

480i, 480p, 576i, 576p, 720p, 1080i

PC Signal Compatibility

VGA, SVGA, XGA, SXGA

Macintosh Compatibility

Yes

Input/Output Terminals

RGB 1 (analog)

15-pin VGA

RGB 2 (analog)

RGB 3 (digital)

Video 1

Composite

Video 2

S-Video

Video 3

HD Video 1

HD Video 2

Audio

Mini stereo

Monitor out

Yes

Audio out

Audio

2 watt

External Control

Sync Compatiblity

Separate Sync/Composite Sync/Sync on G

Networking

Electrical

Power Req.

100 - 240V AC, 50/60 Hz

Input Current

2.5A

Power Consumption

228W normal, 190W eco

Mechanical

Installation Orientation

Table/Front, Table/Rear, Ceiling/Front, Ceiling/Rear

Dimensions (WxDxH)

10.7 x 8.1 x 3.3 in. / 272 x 206 x 84mm

Net Weight

5.3 lbs. / 2.4 kg

Fan Noise

35 dB

Regulations

USA UL 1950 FCC Class B, Canada CSA 950 (C-UL), NOM

Environmental

Operational Temp.

41 - 95 degrees F, 5 to 35 degrees C

Humidity

20-80% non-condensing

Storage

-4 to 140 degrees F, -20 to 60 degrees C

Warranty

1 year limited parts and labor warranty, 90 day or 500 hour lamp warranty

Additional Features

SquareShot

VORTEX Technology Plus

Autosense

Automatically syncs with any computer signal

SweetVision II

3D Reform

Automatic keystone correction

Built-in Wall Color Correction

Advanced AccuBlend

Kensington Lock Slot

Enables security lock to be connected to projector

Image Magnification

10-step image magnification with location control

Sleep Timer

Eco-Mode Technology

Extends lamp life, lowers audible noise and reduces total cost of ownership

Discreet Source Keys

One touch source changes

Computer free presentations

High speed wireless

Direct Power Off

In the Box

Remote control, batteries, power cord, user's manual, product registration card
