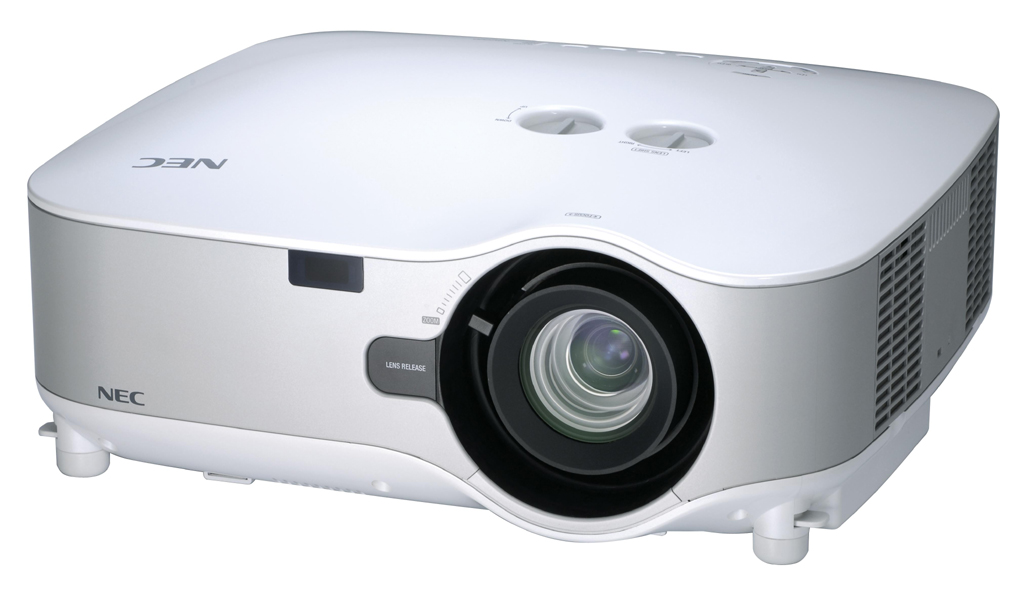

KEY POINTS - NP1000 Nec 3500 ANSI Lumens LCD Video Projector
:
Native XGA Resolution (1024 x 768)
3500 ANSI Lumens
Brightness
800:1 Contrast Ratio
DVI w/HDCP input
Networking Wired LAN using integrated RJ45
Automatic keystone
correction
SUMMARY - Nec np1000 3500 ANSI Lumens LCD Video Projector:
The NEC NP1000 LCD projector provides bright and clear images with 3500 lumens, vertical and manual lens shift allowing flexible projector placement and 5 optional bayonet lenses making it the perfect choice for demanding installation projects. The NP1000 provides a suite of networking technologies and asset management features making it the perfect choice for any projector installation.
DETAILED SPECS - NEC NP1000 LCD PROJECTOR:
Resolution
Native XGA 1024 x 768 Maximum UXGA 1600x1200
Light Output (lumens)
3500 normal
Contrast Ratio 800:1
Lamp Type 300W AC
Lamp Life (up to)
2000 hours normal/3000 hours eco
Screen Size (diagonal) 25-500 in, 635-12700
mm
Vertical and horizontal lens shift and a complete line of optional bayonet style lenses(5) Wired and wireless network projector Advanced video processing with Contrast Enhancement 3500 Lumens
Unique
Remote diagnostics 3D reform with geometry correction Lamp saver technologies with heat sensor and reserve power to keep cooling fan running even after disconnected from power.
Optical Display Technology 0.8 in LCD with MLA
Throw Ratio 1.5 - 2.0
Projection Distance 2.5 to 68.5 ft, .74m to 20.9m
Projector Angle 10.5 to 10.8 tele, 13.7 to 14.5°
Wide
Lens
Zoom 1 to 1.33
Focus manual
F-number, f-number F=1.7 to 2.2, f=24.4 to 32.5mm
Shift Manual, 50% Vertical, 10% Horizontal
Keystone Correction Vertical +/-40 degrees, horizontal +/-35 degrees
Signal
Compatibility/Connectivity NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD
Video Signal Compatibility 1080i, 720p, 576p, 576i, 480p, 480i
PC
Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA
Macintosh Compatibility
Yes
Input/Output Terminals
RGB 1 (analog) 15 pin
RGB 2 (analog) 5 BNC
RGB 3 (digital) DVI-D w/ HDCP
Video 1 RCA
Video 2 S-Video
Video 3
Component
HD Video 1 -
HD Video 2 -
Audio (3) L/R RCA, 3 mini stereo
Monitor out yes
Audio out mini VAO
Audio 2 x 5W Stereo SpeakersRS232, LAN, IR
External Control RS232, LAN, IR
Sync
Compatibility Separate Sync/Composite Sync/Sync on G
Networking Wired LAN using integrated RJ45, 802.11b/g wireless with optional
card
Electrical
Power Req.100 - 240VAC, 50/60Hz
Input Current 4.6A
Power Consumption 435W
Dimensions (WxDxH)
15.7 x 14.1 x 5.9 in, 399 x 358 x 150 mm
Net Weight 16 lbs, 7.3kg
Fan Noise 35dB normal/30 dB eco-mode
Regulations USA UL 1950 FCC Class
B, Canada CSA950 (C-UL), NOM
Environmental
Operational Temp. 41° to 104°F / 5° to 40°C
Humidity 20-80% (non-condensing)
Storage 14° to 122°F / -10° to 50°C
Warranty
Registered owners receive a 3-year limited warranty including InstaCare. Includes three year limited warranty on parts and one year limited warranty on labor. The lamp is covered for one year or 500 hours - whatever comes first. InstaCare provides the original owner one year of either limited 3 business day repair/return or next business day exchange.
Additional Features
Breakthrough image processing technology improves white level, color accuracy, dynamic range and varying levels of black in an image.
Auto sense Automatically syncs with any computer signal and features one touch image optimization.
SweetVision II Provides the ability to square the image by adjusting 3D
Reform horizontally, vertically or diagonally when the projector can not be
placed parallel or perpendicular to the screen.
Automatic keystone
correction Ensures a square image can be projected even when the projector is
set up at a steep offset angle to the screen.
Built-in Wall Color Correction Presets provide for adaptive color tone correction to display properly on non-white surfaces.
Advanced AccuBlend Ensures detailed images when non-native resolution sources are connected to the projector.
Kensington Lock Slot Enables security cable to be attached to projector.
Image Magnification 64-step image magnification with location control
Sleep Timer Count down timer can be set to automatically turn off the projector
Eco-Mode Technology Extends lamp life, lowers audible noise and reduces total cost
Discreet Source Keys Projector and remote feature direct access buttons for
source selection Computer free presentations
Insert a USB drive or Compact Flash
memory card directly into the projector and change images using the wireless
remote control provided with the projector.
High speed wireless
IEEE802.11b/g and improved circuitry provide wireless communication up to 3
times faster than available from previous models.
Direct Power Off Protects
the lamp when the projector is accidentally unplugged or the power strip is
switched off. Enables the fan to continue running until the lamp is properly
cooled down. Internal sensors monitor lamp temperature and prevent the lamp from
powering on until properly cooled.
In the Box Remote control, remote control cable,
batteries, power cord, RGB signal cable, lens cap, user's manual on CD-ROM, product registration card
