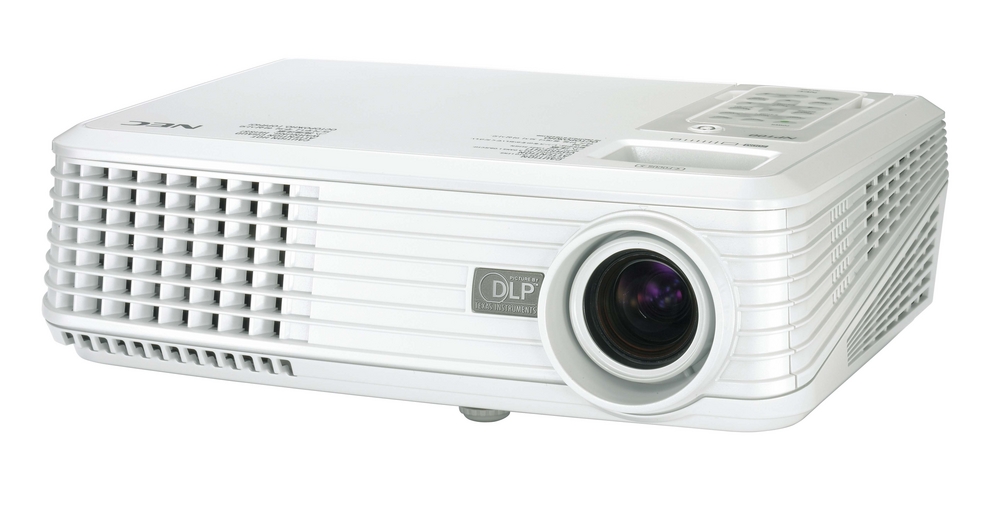

Nec NP200 Portable Dlp Projector nec np200

KEY POINTS - NP200 Nec 2100 ANSI Lumens Portable DLP Video Projector:

Native 1024 x 768 XGA resolution

2100 ANSI lumens brightness

1300:1 contrast ratio

Flexible input panel connects with computer, composite video and S-video

Compact size and lightweight design

10-step magnification with location control allows you to zoom in on key information

ECO Mode technology helps extend lamp life up to 4000 hours

SUMMARY - Nec np200 2100 ANSI Lumens Portable DLP Video Projector:

The NEC NP200, a portable video projector that touts unrivaled affordability, helps you deliver presentations with high-contrast brilliance. The NP200 displays bright, amazing images from the latest DLP engine, is compact, lightweight, easy to use and sets up quickly, making it ideal for use in meeting and conference rooms.

DETAILED SPECS - NEC NP200 PORTABLE DLP PROJECTOR:

Key Points

Affordable, Long lamp life, Plug and play

Unique Features

Monitor out, Built-in speaker, Portable

Optical

Display Technology

0.55" DLP

Resolution

Native

XGA 1024 x 768

Maximum

SXGA+ 1400 x 1050

Light Output (lumens)

2100 normal, 1800 eco

Contrast Ratio

1300:1

Lamp Type

180W AC

Lamp Life (up to)

3500 normal, 4000 eco

Screen Size (diagonal)

28 to 300 in, / .7 to 7.6 m

Throw Ratio

1.9 to 2.1

Projection Distance

3.9 to 39.4 ft. / 1.2 to 12m

Projector Angle

14 degrees wide / 12.8 degress tele

Lens

Zoom

1.0 to 1.1

Focus

Manual

F-number, f-number

F=2.41 to 2.55mm, f=21.83 to 24mm

Shift

Keystone Correction

Manual +/- 40 degrees

Signal Compatibility/Connectivity

Scan Rate

Horizontal

31.35 to 80 kHz

Vertical

56 - 85 Hz

Supported Video Standards

NTSC, NTSC4.43, PAL-M, N, B, G, H, I, SECAM

SD/HD Video Signal Compatibility

480i, 576i, 480p, 576p, 720p, 1080i

PC Signal Compatibility

VGA, SVGA, XGA, SXGA, SXGA+

Macintosh Compatibility

Yes

Input/Output Terminals

RGB 1 (analog)

15-pin VGA

RGB 2 (analog)

RGB 3 (digital)

Video 1

Composite

Video 2

S-Video

Video 3

HD Video 1

HD Video 2

Audio

Mini stereo

Monitor out

Yes

Audio out

Audio

2 watt

External Control

Sync Compatibility

Separate Sync / Composite Sync / Sync on G

Networking

Electrical

Power Req.

100 - 240V AC, 50/60 Hz

Input Current

2.5A

Power Consumption

228W normal, 190W eco

Mechanical

Installation Orientation

Table/Front, Table/Rear, Ceiling/Front, Ceiling/Rear

Dimensions (WxDxH)

10.7 x 8.1 x 3.3 in. / 272 x 206 x 84mm

Net Weight

5.3 lbs. / 2.4 kg

Fan Noise

35 dB

Regulations

USA UL 1950 FCC Class B, Canada CSA 950 (C-UL), NOM

Environmental

Operational Temp.

41 - 95 degrees F, 5 to 35 degrees C

Humidity

20 to 80% non-condensing

Storage

-4 to 140 degrees F, -20 to 60 degrees C

Warranty

1 year limited parts and labor warranty, 90 day or 500 hour lamp warranty

Additional Features

SquareShot

VORTEX Technology Plus

Autosense

Automatically syncs with any computer signal

SweetVision II

3D Reform

Automatic keystone correction

Built-in Wall Color Correction

Advanced AccuBlend

Kensington Lock Slot

Enables security lock to be connected to projector

Image Magnification

10-step image magnification with location control

Sleep Timer

Eco-Mode Technology

Extends lamp life, lowers audible noise and reduces total cost of ownership

Discreet Source Keys

One touch source changes

Computer free presentations

High speed wireless

Direct Power Off

In the Box

Remote control, batteries, power cord, user's manual, product registration card
