KEY POINTS - NP2000 Nec 4000 ANSI Lumens LCD Video Projector:
Native XGA Resolution (1024 x 768)
4000 ANSI Lumens
Brightness
800:1 Contrast Ratio
DVI w/HDCP input
Networking Wired LAN using integrated RJ45
Automatic keystone
correction
SUMMARY - Nec np-2000 4000 ANSI Lumens LCD Video Projector:

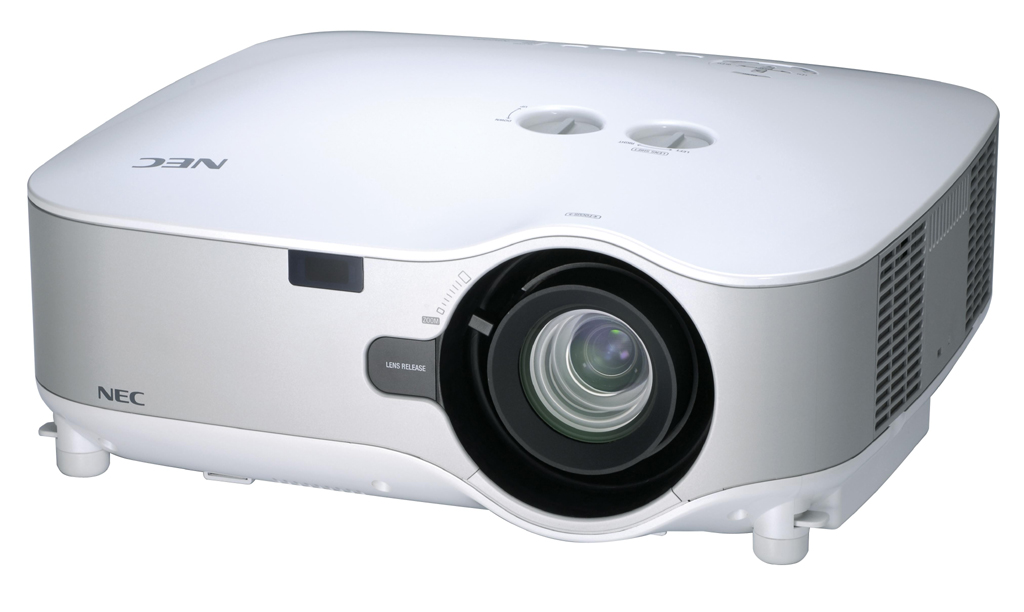

The NEC NP2000 LCD projector provides bright and clear images with 4000 lumens, vertical and manual lens shift allowing flexible projector placement and 5 optional bayonet lenses making it the perfect choice for demanding installation projects. The NP2000 provides a suite of networking technologies and asset management features making it the perfect choice for any projector installation.
DETAILED SPECS - NEC NP2000 LCD
PROJECTOR:
Optical
Display Technology 0.8 in LCD with MLA
Resolution
Native XGA 1024 x 768
Maximum UXGA 1600x1200
Light Output (lumens) 4000 normal
Contrast Ratio
800:1
Vertical and horizontal lens shift and a complete line of optional bayonet style lenses(5)Wired and wireless network projector Advanced video processing with Contrast Enhancement 4000 Lumens
Unique Features
Remote diagnostics3D reform with geometry correction Lamp
saver technologies with heat sensor and reserve power to keep cooling fan
running even after disconnected from power.
Lamp Type 300W AC
Lamp Life (up to) 2000 hours normal/3000 hours eco
Screen Size (diagonal)
25-500 in, 635-12700 mm
Throw Ratio 1.5 - 2.0
Projection Distance 2.5 to
68.5 ft, .74m to 20.9m
Projector Angle 10.3 to 10.8° tele, 13.7 to 14.5°
Wide
Lens
Zoom 1 to 1.33
Focus manual
F-number, f-number F=1.7 to 2.2, f=24.4 to 32.5mm
Shift Manual, 50 % Vertical, 10%
Video Signal Compatibility 1080i, 720p, 576p, 576i, 480p, 480i
PC
Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA
Macintosh Compatibility
Yes
Input/Output Terminals
RGB 1 (analog) 15 pin
RGB 2 (analog) 5 BNC
RGB 3 (digital) DVI-D w/ HDCP
Video 1 RCA
Video 2 S-Video
Video 3 Component
HD Video 1 -
HD Video 2 -
Audio (3) L/R RCA, 3 mini stereo
Monitor out yes
Audio out mini VAO
Audio 2 x 5W Stereo Speakers
External Control RS232, LAN, IR
Sync
Compatibility Separate Sync/Composite Sync/Sync on G
Networking Wired LAN using integrated RJ45, 802.11b/g wireless with optional
card
Dimensions (WxDxH) 15.7 x 14.1 x 5.9 in, 399 x 358 x 150 mm
Net Weight 16
lbs, 7.3kg
Fan Noise 35 dB normal/30 dB eco-mode
Regulations
USA UL 1950 FCC Class B, Canada CSA950 (C-UL), NOM
Environmental
Operational Temp. 41° to 104°F / 5° to 40°C
Humidity 20-80% (non-condensing)
Storage 14° to 122°F / -10° to 50°C
Warranty Registered owners receive a 3-year limited warranty including InstaCare. Includes three year limited warranty on parts and one year limited warranty on labor. The lamp is covered for one year or 500 hours - whatever comes first. InstaCare
provides the original owner one year of either limited 3 business day
repair/return or next business day exchange. Additional Features
SquareShot -
VORTEX Technology Plus Breakthrough image processing technology improves white level, color accuracy, dynamic range and varying levels of black in an image.
Autosense Automatically syncs with any computer signal and features one touch image optimization.
SweetVision
II- 3D Reform Provides the ability to square the image by adjusting 3D Reform
horizontally, vertically or diagonally when the projector can not be placed
parallel or perpendicular to the screen.
Automatic keystone correction
Ensures a square image can be projected even when the projector is set up at a
steep offset angle to the screen.
Built-in Wall Color Correction Presets
provide for adaptive color tone correction to display properly on non-white
surfaces.
Advanced AccuBlend Ensures detailed images when non-native
resolution sources are connected to the projector.
Kensington Lock Slot
Enables security cable to be attached to projector.
Image Magnification
64-step image magnification with location control
Sleep Timer Count down
timer can be set to automatically turn off the projector
Eco-Mode
Technology Extends lamp life, lowers audible noise and reduces total cost
Discreet Source Keys Projector and remote feature direct access buttons for source selection
Computer free presentations
Insert a USB drive or Compact Flash memory card
directly into the projector and change images using the wireless remote control
provided with the projector.
High speed wireless IEEE802.11b/g and improved
circuitry provide wireless communication up to 3 times faster than available
from previous models.
Direct Power Off Protects the lamp when the projector
is accidentally unplugged or the power strip is switched off. Enables the fan to
continue running until the lamp is properly cooled down. Internal sensors
monitor lamp temperature and prevent the lamp from powering on until properly
cooled.
In the Box Remote control, remote control cable, batteries, power cord, RGB signal cable, lens cap, user's manual on CD-ROM, product registration card
