NEC NP3150
5000 ANSI Lumens Professional LCD Video Projector
This unit is subject to
MAP Policy, and we are unable to advertise our price. Please
click ADD TO CART to see our price. Clicking does not commit you to
purchase.
Back to
NEC Video Projector Main |
|
|
Click For Larger Image |
OVERVIEW - Nec np3150 5000 ANSI Lumens Professional LCD Video Projector:

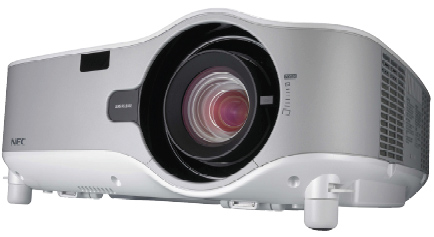

Brighten up your integration projects with the high-performance NEC NP3150 installation projector. The
NP3150 delivers remarkably bright images and feature easy-to-use networking technologies, features XGA (1024 x 768) native resolution, 600:1 contrast ratio and up to 3000 hours of lamp life (in Eco-Mode). With its multitude of advanced features,
the NP3150 is ideal for corporate boardrooms, training facilities and education settings.
|
FEATURES - Nec NP3150 5000 ANSI Lumens Professional LCD Video Projector:
- Resolution Native XGA 1024 x 768
- Light Output (lumens) 5000 normal
- Contrast Ratio 600:1
- 802.11a/b/g wireless LAN with integrated adapter
|
SPECIFICATIONS - NEC NP3150 LCD VIDEO PROJECTOR:
- OPTICAL 0.8” LCD with MLA
- Display Technology Resolution
- Native XGA 1024 x 768
- Maximum UXGA 1600 x 1200
- Light Output (lumens) NP3150: 5000 normal
- Contrast Ratio 600:1
- Lamp Type 330W AC
- Lamp Life (up to) 2000 hours normal / 3000 hours eco
- Screen Size (diagonal) 25 to 500 in
- Throw Ratio 1.5 to 2.0 (standard lens)
- Projection Distance 2.5 to 68.5 ft, 0.74 to 20.9 m
- Projection Angle 10.3 to 10.8º tele / 13.7 to 14.5º wide
- Zoom 1 to 1.33
- Focus Manual
- F-number F=1.7 to 2.2mm, f=24.4 to 32.5mm
- Shift Manual: 50% vertical, 10% horizontal
- SIGNAL COMPATIBILITY/CONNECTIVITY
- Scan Rate Horizontal 15 – 108 kHz / Vertical 48 – 120 Hz
Supported Video
- Standards NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
- SD/HD Video Signal Compatibility 1080i, 720p, 576p, 576i, 480p, 480i
- PC Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA
- Macintosh Compatibility Yes
Input/Output Terminals
- RGB 1 (analog) 15 pin
- RGB2 (analog) 5-BNC
- RGB3 (digital) DVI-D w/ HDCP
- Video 1 RCA
- Video 2 S-Video
- Video 3 Component
- Audio (2) L/R RCA, (3) mini stereo
- Audio Out mini VAO
- Monitor Out Yes
- Audio 5W speaker
- External Control RS-232, IR
- Sync Compatibility Separate Sync / Composite Sync / Sync on G
ELECTRICAL
- Power Req. 100 – 240V AC, 50/60Hz
- Input Current 5.9A
- Power Consumption NP3150: 490W
MECHANICAL
- Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
- Dimensions (WxDxH) 15.7 x 14.1 x 5.9 in.
- Net Weight 16.5 lbs
- Fan Noise NP3150: 38dB normal/31dB eco
- Regulations USA UL 1950 FCC Class B, Canada CSA950 (C-UL), NOM
ENVIRONMENTAL
- Operational Temp 41° – 104°F / 5° – 40°C
- Humidity 20-80% non-condensing
- Storage 14° – 122°F / -10° – 50°C
Manufacturer Homepage: www.necvisualsystems.com
|
