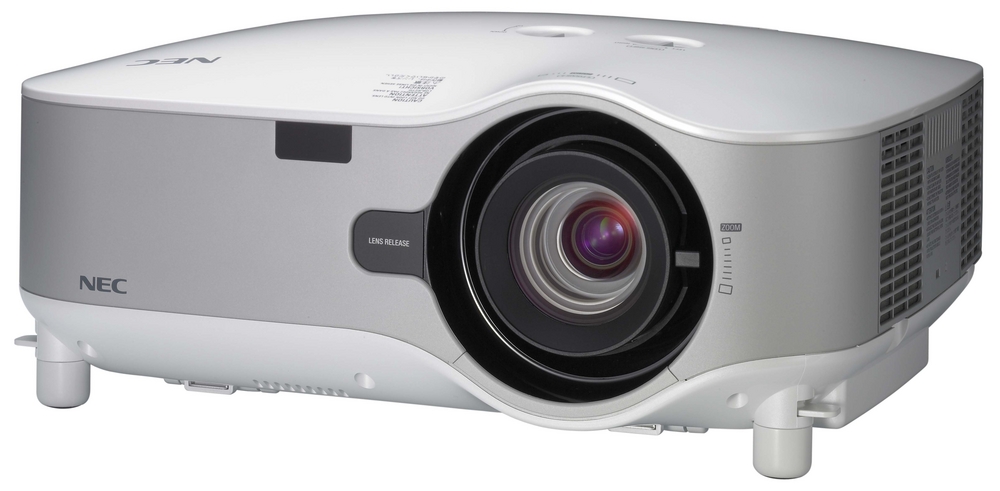

KEY POINTS - NP3151W Nec 4000 ANSI Lumens Professional Installation LCD Video Projector:
Native 1280 x 800 WXGA resolution
4000 ANSI lumens brightness
500:1 contrast ratio
Silicon Optix HQV technology produces superior video processing
Vertical and horizontal lens shift enables flexible projector placement
Remote desktop connection allows the projector to connect to a networked computer remotely
Multitude of connections available including DVI-D (w/HDCP), component video and VGA computer monitor input
Complete line of optional bayonet lenses allows for quick and easy lens change
Powerful integrated networking and asset management
Lamp saver technologies protect the projector from overheating
SUMMARY - Nec np3151w 4000 ANSI Lumens Professional Installation LCD Video Projector:
View your integration projects with a new perspective with the high-performance NEC NP3151W professional installation LCD video projector. The NP3151W delivers remarkably bright high contrast images, features WXGA (1280 x 800) native resolution, easy-to-use networking technologies and up to 3000 hours of lamp life (in ECO Mode). With its multitude of advanced features, the NEC 3151W is ideal for corporate boardrooms, training facilities and education settings.
DETAILED SPECS - NEC NP3151W PROFESSIONAL INSTALLATION LCD PROJECTOR:
Key Points
Windows Vista Certified, Vertical and horizontal lens shift and a complete line of optional bayonet style lenses, Wired and wireless network projector, Built-in HTTP page
Unique Features
HQV Video Processing, Windows Network, Remote Desktop Connection, Remote diagnostics, 3D reform with geometry correction, Lamp saver technologies with heat sensor and reserve power to keep cooling fan running even after disconnected
Optical
Display Technology
0.74 in LCD with MLA
Resolution
Native
WXGA 1280 x 800
Maximum
UXGA 1600x1200
Light Output (lumens)
4000 normal/3200eco
Contrast Ratio
500:1
Lamp Type
330W AC
Lamp Life (up to)
2000 hours normal/3000 hours eco
Screen Size (diagonal)
25-500 in, 635-12700 mm
Throw Ratio
1.5 - 2.0
Projection Distance
2.5 to 68.5 ft, .74m to 20.9m
Projector Angle
10.3 to 10.8º tele, 13.7 to 14.5º wide
Lens
Zoom
1 to 1.33
Focus
Manual
F-number, f-number
F=1.7 to 2.2, f=24.4 to 32.5mm
Shift
Manual, 50 % Vertical, 10% Horizontal
Keystone Correction
Vertical +/-40 degrees, horizontal +/-35 degrees
Signal Compatibility/Connectivity
Scan Rate
Horizontal
15 to 100 kHz
Vertical
48 to 120 Hz
Supported Video Standards
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility
1080i, 720p, 576p, 576i, 480p, 480i
PC Signal Compatibility
VGA, SVGA, XGA, SXGA, SXGA+, UXGA
Macintosh Compatibility
Yes
Input/Output Terminals
RGB 1 (analog)
15 pin
RGB 2 (analog)
5 BNC
RGB 3 (digital)
DVI-D w/ HDCP
Video 1
RCA
Video 2
S-Video
Video 3
Component
HD Video 1
HD Video 2
Audio
(2) L/R RCA, (3) mini stereo
Monitor out
mini (Variable Audio Out)
Audio out
yes
Audio
2 x 5W Stereo Speakers
External Control
RS232, LAN, IR
Sync Compatiblity
Separate Sync/Composite Sync/Sync on G
Networking
Wired LAN using integrated RJ45, 802.11b/g wireless with optional card
USA UL 1950 FCC Class B, Canada CSA950 (C-UL), NOM
Environmental
Operational Temp.
41º to 104ºF / 5º to 40ºC
Humidity
20-80% (non-condensing)
Storage
14º to 122ºF / -10º to 50ºC
Warranty
Registered owners receive a 2-year limited parts and labor warranty including InstaCare. The lamp is covered for one year or 500 hours - whatever comes first. InstaCare provides the original owner one year of either limited 3 business day repair/return or next business day exchange.
Additional Features
SquareShot
Provides the ability to square the image by adjusting 3D Reform horizontally, vertically or diagonally when the projector can not be placed parallel or perpendicular to the screen.
VORTEX Technology Plus
Breakthrough image processing technology improves white level, color accuracy, dynamic range and varying levels of black in an image.
Autosense
Automatically syncs with any computer signal and features one touch image optimization.
SweetVision II
3D Reform
Provides the ability to square the image by adjusting 3D Reform horizontally, vertically or diagonally when the projector can not be placed parallel or perpendicular to the screen.
Automatic keystone correction
Built-in Wall Color Correction
Presets provide for adaptive color tone correction to display properly on non-white surfaces.
Advanced AccuBlend
Ensures detailed images when non-native resolution sources are connected to the projector.
Kensington Lock Slot
Enables security cable to be attached to projector.
Image Magnification
64-step image magnification with location control
Sleep Timer
Count down timer can be set to automatically turn off the projector
Eco-Mode Technology
Extends lamp life, lowers audible noise and reduces total cost
Discreet Source Keys
Projector and remote feature direct access buttons for source selection
Computer free presentations
Insert a USB drive or CompactFlash memory card directly into the projector and change images using the wireless remote control provided with the projector.
High speed wireless
IEEE802.11b/g and improved circuitry provide wireless communication up to 3 times faster than available from previous models.
Direct Power Off
Protects the lamp when the projector is accidentally unplugged or the power strip is switched off. Enables the fan to continue running until the lamp is properly cooled down. Internal sensors monitor lamp temperature and prevent the lamp from powering on
In the Box
Remote control, remote control cable, batteries, power cord, RGB signal cable, lens cap, user's manual on CD-ROM, product registration card
