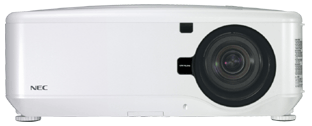

NEC NP4000 5200 ANSI Lumens DLP Video Projector

This unit is subject to MAP Policy, and we are unable to advertise our price. Please click ADD TO CART to see our price. Clicking does not commit you to purchase.

Back to NEC Video Projector Main

OVERVIEW - Nec np4000 5200 ANSI Lumens Dlp Video Projector:

The NP4000 provides bright and clear images with 5200 lumens, vertical and manual lens shift allowing flexible projector placement and 5 optional bayonet style lenses making it the perfect choice for extended use installation projects. The NP4000 provides a suite of networking technologies and asset management features making it the perfect choice for the most demanding installations.


FEATURES - Nec NP4000 5200 ANSI Lumens Dlp Video Projector:

• 5200 ANSI Lumens
• XGA 1024 x 768 native resolution
• Contrast Ratio up to 2100:1
• Dual lamp operation

SPECIFICATIONS - NEC NP4000 5200 ANSI LUMENS DLP VIDEO PROJECTOR:

Key Points
• Powered Vertical and horizontal lens shift and a
  complete line of
• optional bayonet style lenses (5)
• Changeable Color Wheels Brilliant Color
• Dynamic Black
• 5200 Lumens
• Wired network projector


Unique Features
• Remote diagnostics
• Lamp saver technologies with heat sensor and reserve
  power to
• keep cooling fan running even after disconnected from power.


Optical
• Display Technology 0.7 in DMD


Resolution
• Native XGA 1024 x 768
• Maximum UXGA 1600 x 1200
• Light Output (lumens) 5200 normal
• Contrast Ratio up to 2100:1
• Lamp Type 260W AC
• Lamp Life (up to) 2000 hours normal/2500 hours eco


Screen Size (diagonal)
• NP06FL: 50-200 in, 1270-5080 mm
• NP07ZL, NP08ZL, NP09ZL, NP10ZL: 40-500 in, 1016-12700 mm


Throw Ratio NP06FL 0.77:1
• NP07ZL 1.33 - 1.79:1
• NP08ZL 1.78 - 2.35:1
• NP09ZL 2.22 - 43:1
• NP10ZL 4.43 - 8.3:1


Projection Distance
• NP06FL 2.6 - 10.6 ft, 0.78 - 3.24 m
• NP07ZL 3.5 - 60.9 ft, 1.06 - 18.56 m
• NP08ZL 4.7 - 79.9 ft, 1.42 - 24.35m
• NP09ZL 5.8 - 152.3 ft, 1.76 - 46.41 m
• NP10ZL 11.6 - 283.3 ft, 3.53 - 86.36 m


Projector Angle
• NP06FL 0 degrees
• NP07ZL 11.71 degrees/15.65 degrees
• NP08ZL 8.99 degrees/11.82 degrees
• NP09ZL 4.74 degrees/9.48 degrees
• NP10ZL 2.54 degrees/4.82

  Lens
• Zoom Powered
• Focus Powered
• NP06FL F=2.0 mm, f=11.4 mm
• NP07ZL F=1.8 to 2.3 mm, f=19.3 to 25.8 mm
• NP08ZL F=1.7 to 1.9 mm, f=26.0 to 34.0 mm
• NP09ZL F=2.1 to 2.9 mm, f=32.0 to 63.0 mm
• NP10ZL F=2.2 to 3.1 mm, f=63.5 to 117.4 mm


Shift Manual,
• 50 % Vertical, 10% Horizontal


Keystone Correction
• Vertical +/-40 degrees, horizontal +/-27 degrees


Signal Compatibility/Connectivity Scan Rate
• Horizontal 15 to 90 kHz
• Vertical 50 to 85 Hz


Supported Video Standards
• NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM


SD/HD Video Signal Compatibility
• 1080i, 720p, 576p, 576i, 480p, 480i


PC Signal Compatibility
• VGA, SVGA, XGA, SXGA, SXGA+, UXGA


Macintosh Compatibility
• Yes


Input/Output Terminals
• RGB 1 (analog) 15 pin
• RGB 2 (analog) 5 BNC
• RGB 3 (digital) DVI-D w/ HDCP
• Video 1 RCA
• Video 2 S-Video
• Video 3 Component
• HD Video 1 N/A
• HD Video 2 N/A
• Audio (2) L/R RCA, 3 mini stereo
• Monitor out 1 - 15pin
• Audio out Variable 1 x mini stereo
• Audio 2 x 3W Stereo Speakers
• External Control RS232, IR
• Sync Compatiblity Separate Sync/Composite Sync/Sync on G


Networking
• Wired LAN using integrated RJ45


Electrical
• Power Req. 100 - 240VAC, 50/60Hz
• Input Current 6.5A
• Power Consumption 655W


Mechanical
• Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
• Dimensions (WxDxH) 19.88 x 15.16 x 8.23 in
• Net Weight 35.7 lbs, 16.2kg
• Fan Noise 35 dB normal/33 dB eco-mode


Regulations
• USA UL60950-1 FCC Class B, Canada CSA60950-1 (C-UL), NOM-001-SCFI-1993


Environmental
• Operational Temp. 41 degrees to 104 degrees F / 5 degrees to 40 degrees C Sea Level
• 41 degrees to 73 degrees F / 5 degrees to 23 degrees C @ 10,000 ft


Humidity
• 20-90% (non-condensing)


Storage
• 14 degrees to 140 degrees F / -10 degrees to 60 degrees C


Warranty Registered
• owners receive a 2-year limited warranty including InstaCare. Includes three year limited warranty on parts and one year limited warranty on labor. The lamp is covered for one year or 500 hours - whatever comes first. InstaCare provides the original owner one year of either limited 3 business day repair/return or next business day exchange.


Additional Features
• VORTEX Technology Plus Breakthrough image processing technology improves white level, color accuracy, dynamic range and varying levels of black in an image.
• Autosense Automatically syncs with any computer signal and features one touch image optimization.
• Automatic keystone correction Ensures a square image can be projected even when the projector is set up at a steep offset angle to the screen.
• Built-in Wall Color Correction
• Advanced AccuBlend Ensures detailed images when non-native resolution sources are connected to the projector.
• Kensington Lock Slot Enables security cable to be attached to projector.
• Image Magnification 64-step image magnification with location control
• Eco-Mode Technology Extends lamp life, lowers audible noise and reduces total cost of ownership.
• Discreet Source Keys Projector and remote feature direct access buttons for source selection
• Direct Power Off


In the Box
• Remote control, remote control cable, batteries, power cord, RGB signal cable, lens cap, user's manual on CD-ROM, product registration card

Manufacturer Homepage: www.necvisualsystems.com
