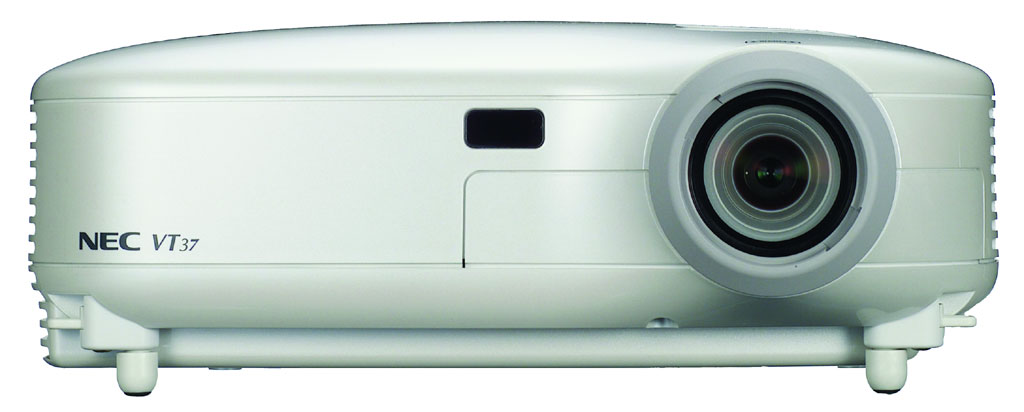

NEC VT37 Portable SVGA 1500 ANSI Lumens LCD Video
Projector
OVERVIEW - NEC VT37 LCD Video
Projector
The
VT Series video projectors are an affordable, high-performance choice
for those requiring a versatile portable projector. Their high-resolution
capabilities, broad computer compatibility and accurate, vibrant
color displays make the them ideal for a variety of applications.
In addition, their ease of use and low overall cost of ownership
let you concentrate on your presentation, not your projector.
FEATURES - Nec Vt37 Portable LCD
Projector
Native SVGA Resolution (800 x 600)
400:1 Contrast Ratio
1500 ANSI Lumens
Connectivity. Color-coded and well organized with connections for
every source.
Remote control. Adjust volume and select sources with the touch of a
button.
Keypad. One touch source changes and complete menu control using the
intuitive projector keypad.
Design. The attractive and inviting design of the new VT series
projectors will grab attention before your presentation even begins.
Quick start up. Warms up and projects in seconds.
Square shot keystone correction. Instantly project a square image even
when the projector is set up at a steep offset angle to the screen.
Plenty of get-up and go. AutoSense automatically syncs the projector
with any computer signal and features one-touch image optimization.
Great picture quality. The VT37 has SVGA native resolution and 1500
ANSI lumens. Patented NEC technologies like AccuBlend and VORTEX
Technology enhance already impressive image quality.
Quiet operation. Nearly silent operation.
Eco-Mode. Extends lamp life and makes a low operating cost even lower.
Security features. Enhanced multi-leveled security features protect
your investment by deterring theft.
Lamp protection. Internal sensors prevent lamp from being turned on
before completely cooled.
Award-winning service. Service programs like EcoCare and InstaCare
ensure peace of mind.
SPECIFICATIONS - NEC VT37 LCD
Multimedia Projector
1 RGB, 1 S-Video, 1 Video, 1 L/R
RCA Audio, 1 Stereo Mini Audio, 1 PC Control
Environment
Operational Temp. 41 to 95°F / 5°
to 35°C
Humidity: 20-80% (non-condensing)
Storage: 14° to 122°F / -10 to 50°C
Regulations
USA UL 1950 FCC Class B, Canada
CSA950 ( C-UL )
Accessories
Included
Projector, lens cap, power cord,
RGB signal cable, user’s manual on
CD-ROM, carrying case, remote control, batteries, quick start guide,
product registration card
External Controls
RS232, IR
Power
Requirements
100-120VAC/200-240VAC, 50/60Hz
Power Consumption
190W normal mode, 155W in
Eco-mode, 8W in standby mode
Warranty
Registered owners receive a 2-year
limited, parts and labor warranty
The first year is covered by InstaCare. InstaCare provides the original
owner either limited 3 business day repair/return or next business day
exchange. The lamp when used under normal operating conditions is
covered for 500 hours or 3 months, whichever comes first. InstaCare
provides the original owner either limited 3 business day
repair/return or next business day exchange.
Contrast Ratio
400:1
Resolution
800 x 600 pixels, up to SXGA with
Advanced AccuBlend
Light Output
(maximum ANSI output) 1500/1200
std/eco
Lamp
130W/110W std/eco
Projection
Distance
2.0 to 23.9ft, .6 to 7.3m
Projection Angle
14.0 – 14.6°
Image Size
25 – 300 inches (diagonal)
Input Current
2.1A (100-120VAC), 1.3A
(200-240VAC)
Pixel Clock
Frequency
135MHz
Horizontal
Resolution
NTSC, NTSC4.43,
PAL/PAL-M/PAL-N/PAL-60: 540 TV SECAM - 300 TV lines, Y/Cb/Cr –800 TV
lines, RGB: 800 dots (H) x 600 dots (V)
11.6” (W) x 3.7” (H) x 10.2” (D) (WxDxH)
294 (W) x 93 (H) x 260 (D) mm
Net Weight
7.0lbs/3.2kg
Magnification
64-step image magnification with
location control
Built-in Speakers
1W monaural
Fan Noise
33/28 dB
Scan Rate
Horizontal: 15 to 100 kHz
(non-interlaced) Vertical: 50 to 120 Hz
Security
Password can be set to restrict
unauthorized use of projector.
Throw Ratio
1.2
Panel
3 x 0.7” p-Si TFT
Keystone
Correction
±30 degrees vertical (automatic or
manual)
VORTEX Technology
Plus
Provides uncompromising display of
video and data. Improves white level, color accuracy dynamic range, and
display of varying levels of black in an image.
Eco-Mode
Technology
Extend lamp life up to 50% by
adjusting projector brightness
