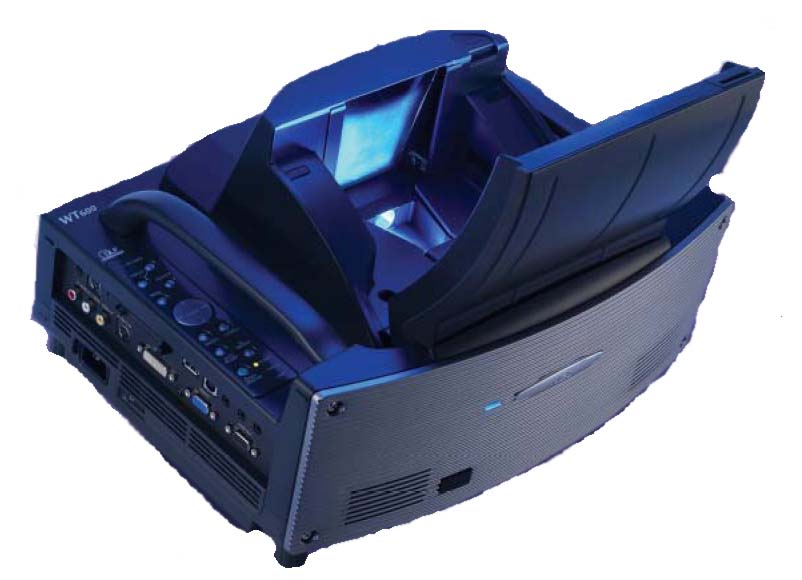

The NEC WT600 mirrored reflection projector features aspheric
mirrors instead of a traditional projection lens for up to the wall
placement! This NEC exclusive technology, supplies the shortest
focal distance imaginable. Achieve a 40” image while only 2-1/2"
from the screen or an image of up to 100" from less than 26" away.
It is perfect for retail environments where space is limited or in
classrooms and conference rooms, offering the presenter the freedom
to utilize the area without fear of blocking the projected image.
Featuring NEC’s proprietary 3D Reform enhanced keystone correction
technology, VORTEX Technology Plus, Eco-Mode and Advanced AccuBlend technologies your images will be sharp and clear. And
through the wireless/wired LAN capabilities you will be able to
present in real time as well as control and monitor the projector
remotely and receive updates via e-mail on vital projector
functions.
The WT600 is covered by NEC’s industry-leading service program,
InstaCare providing users with the quality, reliability and service
they expect from NEC.
1 DVI-I, 1 RGB, 1 S-Video, 1 Video, 1 PC Card, 2 Stereo Mini
Audio, 1 RCA Audio
Outputs
1 RGB, 1 Stereo Mini Audio
Environment
Operational Temp. 41° to 95°F / 5° to 35°C
Humidity: 20-80% non-condensing
Storage: 14° to 122°F / -10° to 50°C
Regulations
USA UL 1950 FCC Class B
Canada CSA950 ( C-UL )
Accessories Included
Users manual, wired/wireless remote control, D-sub signal cable,
DVI-D signal cable, DVI-A – D-sub signal cable, audio cable, USB
A-B cable, power cable, set up guide, registration card
External Controls
RS232, LAN (AMX/Crestron compatibility), remote in
Power Requirments
100-120VAC/200-240VAC, 50/60Hz
Power Consumption
290W, Standby mode – 0.6W, Idle mode – 8W
Warranty
Registered owners receive a 2-year limited, parts and labor
warranty including InstaCare. InstaCare provides for the first
year of 5 business day repair and return. The lamp when used
under normal operating conditions is covered for 1000 hours or 6
months, whichever comes first.
Contrast Ratio
3000:1
Resolution
1024x768 pixels native up to UXGA with Advanced AccuBlend
Light Output
1500 standard, 1200 eco-mode (ANSI, typical)
Lamp
220W NSH
Projection Distance
2.5 – 25.9 inches, 64 – 659 mm
Image Size
40 - 100 inches diagonal
Input Current
3.2A (100-120VAC), 1.6A (200-240VAC)
Pixel Clock Frequency
135MHz
Horizontal Resolution
NTSC, NTSC4.43, PAL/PAL-M/PAL-N/PAL-60 - 540 TV lines, SECAM -
300 TV lines, Y/Cb/Cr -540 TV lines, RGB -1024dots (H) x 768dots
(V)
Built-in Presentation Viewer
Download your presentation onto a PC Card and present directly
from the projector
14.96” x 12.32” x 12.32”
380x313x313mm, mirror open (not including protrusions)
Net Weight
13 lb. (5.9 Kg)
Eco-Mode Technology
Increase lamp life through light output adjustments
VORTEX Technology Plus
Provides uncompromising display of video and data. Improves
white level, color accuracy, dynamic range, and display of
varying levels of black in an image. Color correction system
enables six-axis adjustment of CMY and RGB for display of
personal color preferences
AutoSense Technology
Automatic set-up and one touch adjustments for ease of use
Display Technology
Aspheric mirror x 4, power focus
Built-in Speakers
1Wx2
Advanced AccuBlend
Ensures detailed images when non-native resolution sources are
connected to the projector.
Fan Noise
Eco-Mode <32dB
Normal mode <37dB
Scan Rate
Horizontal: 15 to 100 kHz (non-interlaced) Vertical: 50 to 120Hz
