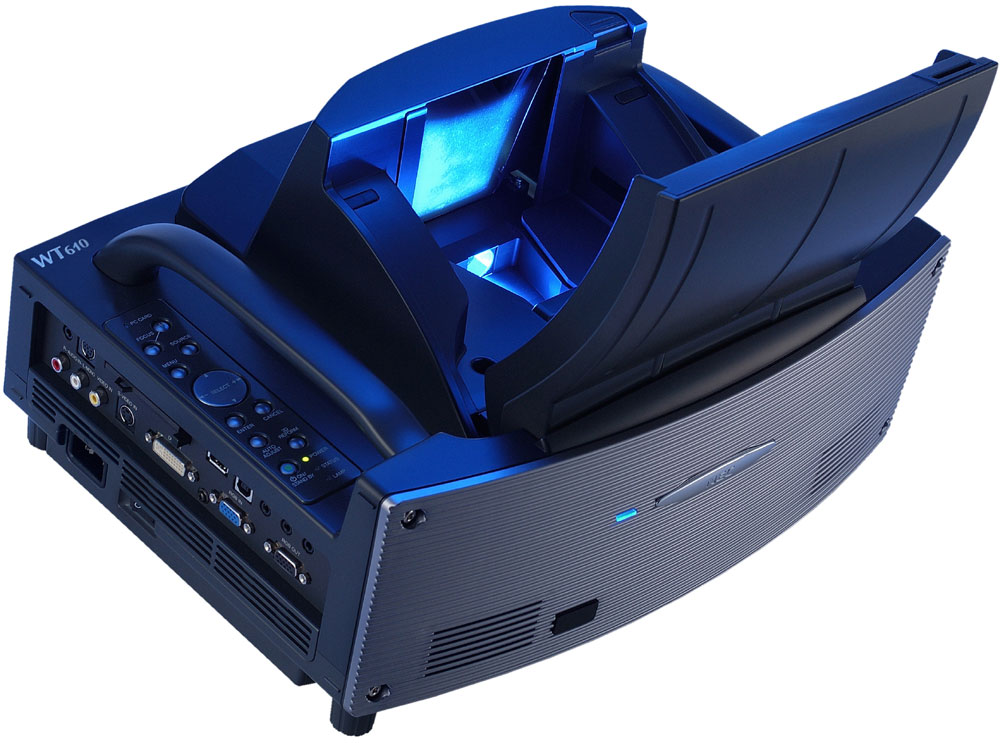

NEC WT610 XGA 2000 ANSI Lumens DLP Video Projector
with Short Throw Lens
OVERVIEW - NEC WT610 DLP Video Projector
For those special applications that require unique projector placement
or even extraordinary technology to view projects. The WT610 can save
space with its extremely short throw lens. Place the projector close
to the screen by mounting it from the ceiling or on the floor. Walk
around the room while you manage your presentation from a wireless
source. Or it can even project motion graphics behind your window
displays in retail environments. The possibilities are endless with
the WT610.
FEATURES - NEC WT610 Short Throw DLP Projector
Revolutionary
Space saving design. Achieve up to a 100” diagonal image from
25.95” away from the screen.
Network connectivity. Communicate with the projector with or
without wires through an existing infrastructure or an on-the-fly
peer-to-peer connection.
USB flexibility. Play back presentations or display images
stored as .jpgs from standard USB keys.
Project on almost any color wall. Preset selections provide for
adaptive color tone correction when projecting onto non-white screen
material or walls.
Pincushion adjustment. Maximize image display with fine tune
pincushion adjustments that reduce barrel distortion.
Beautiful
High resolution display. XGA (1024 x 768) native resolution,
compatible with computer signals up to SXGA+ (1400 x 1050).
High contrast. 3500:1 enables varying levels of black to be
displayed by the projector for improved video quality.
Bright. 2,000 ANSI lumens.
Real life colors. VORTEX Technology Plus breakthrough image
processing technology improves white balance, color accuracy,
dynamic range and varying levels of black in an image.
HDTV capable. HD Signal compatibility for the best video
quality.
Advanced AccuBlend. Ensures detailed images even when non-native
resolution sources are connected to the projector.
Color management. Automatically adjusts for input type
(presentation, movie, video, graphic and sRGB).
Dependable
NEC is a leader in developing technologies to extend the life of the
projector.
Extended lamp life. Eco-mode technology increases lamp life by
up to 50% for up to 4,000 hours.
Security features. Enhanced multi-level security features
protect your investment.
Integrated lock slot - attach security cable to physically
lock down the projector
Cabinet control lock – password protection restricts access to
menu system
Logo lock – restricts changes to logo saved in projector
memory
Password protection restricts unauthorized use of projector
E-mail notification when maintenance is due
Quiet operation. Low operating noise at <32dB in Eco-Mode.
Sleep timer setting enables projector to automatically shut
down.
SPECIFICATIONS
- NEC WT610 DLP MULTIMEDIA PROJECTOR
Screen Size
40” to
100” diagonal
Synchronization Compatibility
Separate Sync / Composite
Sync / Sync on G
Video Bandwidth
RGB 80 MHz
Lamp Life
up to
Eco-mode 4000H
Normal mode 2000H
Color Reproduction
16.7
million colors simultaneously, Full color
Inputs
1 DVI-I (w/HDCP), 1 RGB, 1
S-Video, 1 Video, 1 PC Card, 2 Stereo Mini Audio, 1 RCA Audio
Outputs
1 RGB, 1
Stereo Mini Audio
Environment
Operational Temp. 41° to
95°F / 5° to 35°C
Humidity: 20-80% non-condensing
Storage: 14° to 122°F / -10° to 50°C
Regulations
USA UL
1950 FCC Class B
Canada CSA950 ( C-UL )
Accessories
Included
Users manual, wired/wireless
remote control, D-sub signal cable, DVI-D signal cable, DVI-A –
D-sub signal cable, audio cable, USB A-B cable, power cable, set
up guide, registration card
External Controls
RS232, LAN
(AMX/Crestron compatibility), remote in
Power
Requirements
100-120VAC/200-240VAC,
50/60Hz
Power Consumption
Eco-Mode
300W, Normal 370W, 0.6W Standby, 8.0W Idle Mode
Warranty
Owners receive a 2-year
limited parts and labor warranty. RepairCare is provided during
the first year of coverage for registered owners. RepairCare
provides the original owner with 3-business day repair and return
of the projector. When used under normal operating conditions, the
lamp is covered for 90 days or 500 hours, whichever comes first.
Contrast Ratio
3500:1
Resolution
1024x768 pixels native up to
UXGA with Advanced AccuBlend
Light Output
2000
normal, 1500 Eco-Mode (ANSI, typical)
Lamp
220W NSH
Projection Distance
2.5 – 25.9
inches, 64 – 659 mm
Image Size
40 - 100 inches diagonal
Input Current
3.2A
(100-120VAC), 1.6A (200-240VAC)
Pixel Clock
Frequency
135MHz
Horizontal Resolution
NTSC,
NTSC4.43, PAL/PAL-M/PAL-N/PAL-60 - 540 TV lines, SECAM -
300 TV lines, Y/Cb/Cr -540 TV lines, RGB -1024dots (H) x 768dots
(V)
Built-in
Presentation Viewer
Download your presentation
onto a PC Card and present directly from the projector
PC Card
slot provides for optional wireless or wired network connection.
System administrator can access the projector to handle remote
diagnostics and control, asset management and provide for real
time source display. Also provides email notification selection
VORTEX
Technology Plus
Provides uncompromising
display of video and data. Improves white level, color accuracy,
dynamic range, and display of varying levels of black in an image.
Color correction system enables six-axis adjustment of CMY and RGB
for display of personal color preferences
Eco-Mode Technology
Increase
lamp life through light output adjustments
Advanced
AccuBlend
Ensures detailed images when
non-native resolution sources are connected to the projector.
AutoSense Technology
Automatic
set-up and one touch adjustments for ease of use
