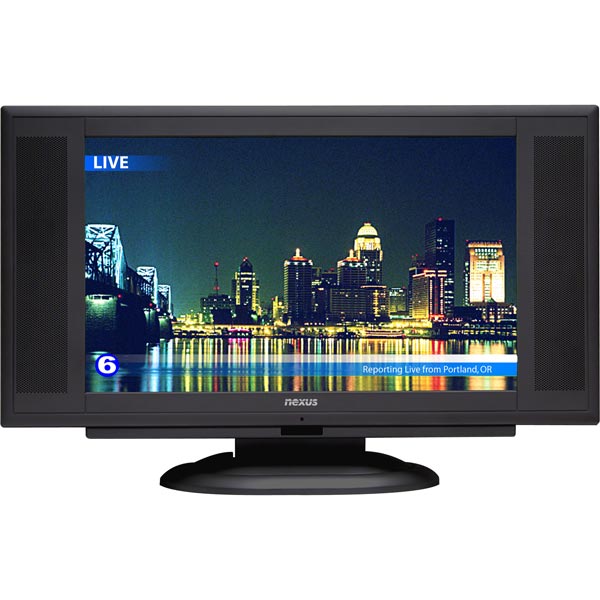

Nexus NX1701 17 inch WXGA HDTV Capable LCD TV Monitor

Item Currently Unavailable

Return to Nexus LCD TV Monitor Page

KEY POINTS - NX1701 Nexus 17 inch WXGA HDTV Capable LCD TV Monitor:

• Native WXGA 1280 x 768 Resolution
• 600:1 Contrast Ratio
• 450 cd/m2 Brightness
• 15ms Response Time
• HDTV Capable (Requires Separate HDTV Signal and Tuner - Sold Separately)
• Includes built in cable tuner, speakers and table stand

SUMMARY - Nexus nx1701 17 inch WXGA HDTV Capable LCD TV Monitor:

The Nexus 1701 17 inch LCD TV Monitor is in a class all by itself. As an HDTV-ready LCD TV, the NX1700 provides best-in-class performance with a 16:9 wide screen, stereo speakers, picture-in-picture capability and an ultra-bright - exceptionally sharp picture. With analog and component video inputs, stereo-out jacks (which can support external speakers and amplifiers) and dimensions of only 20.4"(W) x 13.1"(H) x 7.8"(D), the NX1700 is a versatile entertainment center. Its slim profile takes up only a quarter of the space of comparable CRT Televisions, returning more living space to the bedroom, kitchen or office.

DETAILED SPECS - NEXUS NX1701 HDTV CAPABLE LCD MONITOR:

• Screen Type: TFT - Amorphous Active Matrix
• Viewable Size: 17 Inch Wide Screen Inches (Diagonal)
• Resolution: 1280 x 768 (WXGA) (Maximum)
• Aspect Ratio: 16:9
• HDTV: HDTV Capable (Requires Separate HDTV Signal and Tuner - Sold Separately)
• Backlight: 4 Lamps
• Color Depth: 16.7 Million colors
• Contrast Ratio: 600:1
• Viewing Angle: (H)170º/(V)170º (Typical)
• Response Time: 15ms (Typical)
• Brightness: 450 cd/m2
• Audio/Video In/Out:
  • Antena/Cable In: Coax cable input
  • AV1 In: Composite video input terminal (CVBS) (RCA)
  • AV1 In: S video input terminal (Y/C)
  • AV1 In: L/R Audio input terminal (RCA)
  • AV2 In: Component input (Y-CbCr) (RCA)
  • AV2 In: L/R Audio input terminal (RCA)
  • PC Video In: 15 pin Mini D-Sub (RGB)
  • PC Audio In: 3.5mm stereo audio input
• Tuner:
  • TV Standard: NTSC - M/M
  • VHF: CH1 - CH12
  • UHF: CH13 - CH83
  • CATV: CH1 - CH181
  • Stereo: MTS / SAP
  • CH Protection: Closed Caption / V-Chip
  • Picture-In-Picture
• Horizontal / Vertical Frequency: (H)30-60KHz/(V)50-75Hz
• Power Consumption (On): 60 Watts Max
• Power Consumption (Off): 5 Watts Max
• On Screen Display: 1 Page 3 language OSD Menu
• Controls: Digital Volume, Brightness, Contrast, H. / V. Position, OSD H. / V. Position, Phase, Clock, Auto-Adjustment, Color Temperature, Graph / Text, Recall, Language, PIP / Exit, TV / AV / PC, MTS ( Stereo, Sap, Mono ), Channel Select, Volume Control, Mute, Treble, Bass, Balance, Brightness, Contrast, Color, Hue, Sharp, Language, Channel Search, 4:3 / 16:9, Sleep
• Power: DC 12V
• Dimensions (Inches):
  • TV: 20.4 x 13.1 x 7.8
  • Box: 23 x 19.75 x 5.75
• Weight (Pounds): 11 (Net) / 15 (Gross)
• Safety And EMI: FCC-B, UL, CUL, TUV/GS, T-Mark, ISO13406-2, MPRII. TCO99 (Option)
• VESA Compliant: Yes (100mm x 100mm)
• Kensington Lock Ready: Yes
• Integrated Audio: 2.5W + 2.5W stereo speakers, volume control
• Stand: Tilt: +5º ~ -25º, No Swivel, Removable: Yes
• Miscellaneous: IR Remote Control, 1.5M Video Cable with 15pin D-Sub Connector, 1.8M Power Cord, Users guide
• Warranty: 1 Year No Hassle Warranty

Manufacturer Link: www.nexuselectronics.com
