OPTOMA H78DC3 True HDTV Home Theatre Projector with 800 ANSI Lumens and
DarkChip3 DLP Technology
SUMMARY - Optoma h78 DLP Video Projector with 800 ANSI Lumens:
The H78DC3 projector combines the latest DC3 chipset from Texas Instruments
with Optoma’s renowned engineering expertise to deliver an amazing
home theater projector. The Optoma H78DC3 home theatre projector
provides vivid, crisp digital images that won’t fade or degrade over
time and provides HDTV native picture quality. The H78DC3 is home
theatre perfection.
What is the DarkChip 3?
DarkChip 3 is a recent improvement on the
DarkChip line of DLP chips from Texas Instruments. It features a black
coating on the DLP hinge structure and other internal parts.
Essentially, anything that’s not a mirror is coated with a light
absorbing material that
reduces light spill. This significantly improves the black level
performance of DLP projectors, like the Optoma H78DC3, which use these
chips. A lower black level means a higher contrast ratio, and improved
picture quality.
IBM PC and compatibles, Macintosh, iMac, VESA standards
Video Compatibility
NTSC: M, 4.43 MHz; PAL: B, D, G, H, I, M, N; SECAM: B, D, G, K,
K1, L; EDTV (480p), SDTV (480i), HDTV (720p, 1080i)
Aspect Ratio
16:9 native, 5:4 & 4:3 compatible
Projection Lens
f = 28.3 – 38.2 mm, F / 2.4, power focus projection, 1.35 x power
zoom lens
Keystone Correction
Vertical and horizontal
Throw Ratio
1.6 – 2.16:1 Distance/Width
Horizontal Scan Rate
15 to 100 kHz
Vertical Refresh Rate
43 to 85 Hz
Power Supply
Universal AC 90 - 264 volts, 50 - 60Hz
Power Consumption
320 watts (maximum), standby mode < 20 watts
Operating Temperature
23 - 95°F (-5 - 35°C), 80% humidity
Displayable Colors
16.7 million, 256 shades of gray
Projection Method
Front / rear / ceiling mount / table-top
Uniformity
95%

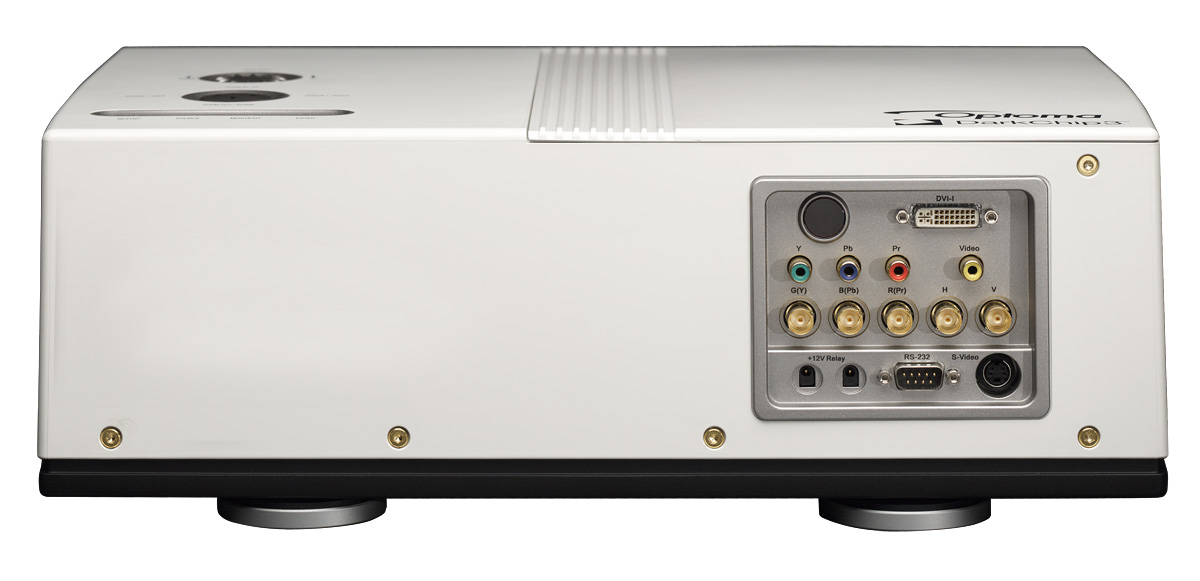

I/O Connectors
DVI-I with HDCP, BNC (RBGHV/component video), component video,
composite video (RCA), S-Video, two IR receivers, dual +12 trigger
relays, RS-232 communication, AC power input
Standard Accessories
DVI-I to HDMI adapter, AC power cord, S-Video cable, Remote
control and two AAA batteries, Composite video cable, Lens Cap, CD
for user manual, warranty card, RS-232 cable
Optional Accessories
Ceiling mount kit
Lens Shift
Enables image to be displayed 100% above or below the center of
the lens
