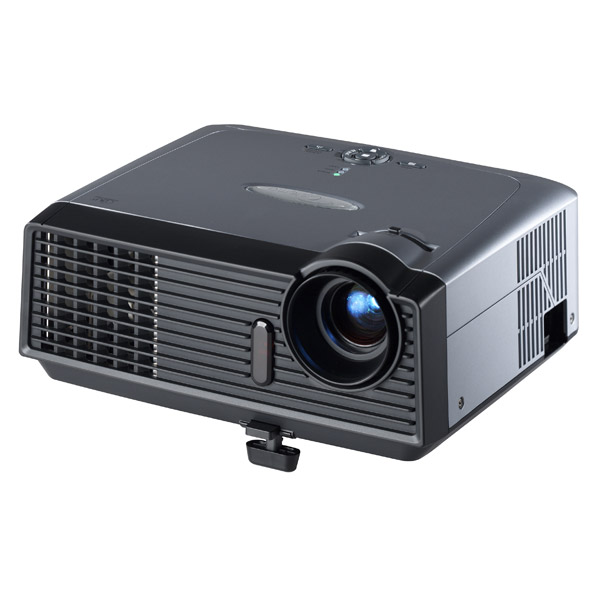

Optoma EP716 Dlp Projector optoma ep716

KEY POINTS - EP716 Optoma 2000 ANSI Lumens Portable DLP Video Projector:

Native SVGA (800x600) and maximum SXGA+ (1400x1050) resolution

2000 ANSI lumens brightness

2000:1 contrast ratio

HDTV Compatibility for High Definition entertainment from a variety of sources

User Password security for administrative control

Travel-Ready – weighs only 4.4lbs

SUMMARY - Optoma ep716 2000 ANSI Lumens Portable DLP Video Projector:

Optoma’s 2000 lumens EP716 projector delivers optimum price and performance. The EP716 projector combines performance and functionality that offers a complete solution for a wide range of applications from boardrooms to classrooms. Weighing only 4.4 pounds, the compact and robust EP716 is designed to excel in today’s demanding multimedia environments.

DETAILED SPECS - OPTOMA EP716 PORTABLE DLP PROJECTOR:

Display Technology

0.55” DDR DLP Technology by Texas Instruments

Resolution

SVGA (800 x 600) Native
SXGA+ (1400 x 1050) Maximum

Brightness (Typical)

2000 Lumens

Contrast Ratio

2000:1 (Full On/Full Off)

Lamp Type and Life

200W UHP
Estimated at 2000/3000 Hours (STD/ECO)

Throw Ratio

1.93 - 2.13:1

Image Size (Diagonal)

24.6” - 300” (0.6 - 7.77 m)

Projection Distance

3.9' - 32.8' (1.2 - 10 m)

Projection Lens

F=2.7-3.0; f= 21.83-23.81mm,
1.2:1 Manual Zoom and Focus

Projection Methods

Front, Rear, Ceiling Mount, Table Top

Noise Level

32dB/28dB (STD/ECO)

Aspect Ratio

4:3/16:9

Remote Control

IR Remote Control

Monitor Loop Through

D-Sub 15 VGA Output (Functional In Both Normal And Standby Modes)

Computer Compatibility

XGA, SVGA, VGA, SXGA+ Resized, VESA, PC and Macintosh Compatible

Video Compatibility

NTSC, PAL, SECAM, SDTV (480i), EDTV (408p), HDTV (720p, 1080i)

Weight

4.4 lbs (2.0 kg)

Dimensions
(W x D x H)

9” x 8.26” x 3.7”
(230 x 210 x 95 mm)

I/O Connectors

Dual D-Sub 15, VGA for Monitor Loop Through, S-Video, Composite Video, Audio Minijack, RS-232

Keystone Correction

±15° Vertical

Horizontal Scan Rate

15-100 kHz

Vertical Refresh Rate

56-85 Hz

User Controls

Complete Onscreen Menu Adjustments in 11 Languages

Power Supply

AC Input 100-240V,
Auto Switching Power Supply

Operating Temperature

41-95° F (5-35° C)(80% Humidity), Adjustable Fan Speed for High Altitude Application

IR Receivers

Front and Back

Uniformity

85%

Displayable Colors

16.7 Million (24-bits)

Power Consumption

265W (Maximum)
Standby <15W

Standard Accessories

AC Power Cord, VGA to VGA, Composite Video, Remote Control, Batteries for Remote, Lens Cap, Carrying Case, Quick Start Guide, Warranty Card, and User's Manual

Optional Accessories

Ceiling Mount, VGA to Component Cable, S-Video Cable, Audio Out Adapter

Warranty

1 Year Limited Parts and Labor
90 Days on Lamp
