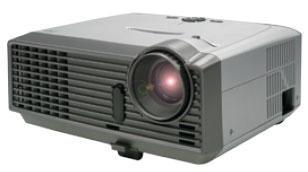

Optoma EP749 Dlp Projector optoma ep749

KEY POINTS - EP749 Optoma 2500 ANSI Lumens Portable DLP Video Projector:

Native XGA (1024 x 768) resolution with SXGA+ compression

2500 ANSI lumens brightness

2200:1 contrast ratio

HDTV compatible (720p, 1080i)

Convenient DVI-D w/HDCP, component, composite and s-video inputs

Adjustable cooling fan speed settings for higher altitudes

Weighs only 4.4 pounds!

SUMMARY - Optoma ep749 2500 ANSI Lumens Portable DLP Video Projector:

Optoma’s EP749 is a lightweight, multimedia data projector that features DLP technology, native XGA resolution and 2500 lumens of brightness. Weighing only 4.4 pounds, the portable EP749 is HDTV compatible and has a number of connectivity options for multiple video sources. The Optoma EP749 offers a sturdy, well-built solution for environments that demand a crisp image quality.

DETAILED SPECS - OPTOMA EP749 PORTABLE DLP PROJECTOR:

Display Technology

Single 0.55” DDR DMD DLP Technology by Texas Instruments

Resolution

XGA (1024 x 768)

Maximum Resolution

SXGA+ (1400 x 1050)

Brightness (Typical)

2500 Lumens

Contrast Ratio

2200:1 (Full On/Full Off)

Lamp Life

Estimated at 2000/3000 Hours (STD/ECO)

Lamp Type

230W SHP

Throw Ratio

1.93-2.13:1 (Distance/Width)

Image Size (Diagonal)

34.67” to 305” (0.9 to 7.7 m)

Noise Level (STD/ECO)

33dB/28dB

Remote Control

Fully Featured IR Remote w/ Laser Pointer

Monitor Loop Through

D-Sub 15 VGA Output (Functional in Both Normal and Standby Modes)

Projection Distance

4.8’ to 39.4’ (1.5 to 12 m)

Computer Compatibility

XGA, SVGA, VGA, SXGA+ Resized, VESA, PC & Macintosh Compatible

Video Compatibility

NTSC, PAL, SECAM, EDTV (480p), HDTV (576i/p, 720p, 1080i)

Aspect Ratio

4:3 Native, 5:4 &16:9 Compatible

Projection Lens

F = 2.35 ~ 2.47, f = 21.83 ~ 23.81 mm,
1.1x Manual Zoom and Focus

Audio

One Internal 2-Watt Speaker

Weight

4.4 lbs (2.0 kg)

Dimensions (W x H x D)

9.3” x 3.8” x 8.2” (238 x 96 x 210 mm)

Keystone Correction

± 16º Vertical

Horizontal Scan Rate

31.5 to 80 kHz

Vertical Refresh Rate

56 to 85 Hz

Power Supply

AC Input 100 - 240V, 50-60Hz

Power Consumption

300 Watts, <7W Standby Power

Operating Temperature

Operating: 5 to 35°C, 80% Humidity (Max)
Storage: -20 - 60°C, 80% Humidity (Max)

Displayable Colors

16.7 Million, 256 Shades of Gray

Projection Method

Front, Rear, Ceiling Mount, Table Top

Uniformity

85%

User Controls

Advanced Adjustability Options through the On-Screen Display

Security

One Kensington Lock Port

I/O Connectors

DVI-D w/HDCP, D-Sub 15, VGA for Monitor Loop Through, S-Video, Composite Video, Audio Mini-Jack, RS-232

Standard Accessories

AC Power Cord, VGA to VGA Cable, RS-232 Cable, Composite Video Cable, Remote Control, Batteries for Remote, CD-ROM User’s Manual, Quick Start Guide, Warranty Card, Lens Cap and Carrying Case

Optional Accessories

15-pin to 3 RCA Component-HDTV Adapter, S-Video Cable, DVI to HDMI Adapter, Ceiling Mount and Gold Service Warranty

Warranty

1 Year Limited Parts and Labor, 90 Days on Lamp
