KEY POINTS - Optomaew330 2200 lumens with 2000:1 contrast ratio and native wxga resolution:
FEATURES
Ultra portable 2.4 lb DLP projector
Native WXGA resolution and HD compatible
2200 lumens and 2000:1 contrast ratio
Connections include HDMI, VGA, s-video, composite video and USB
Ideal presentation remote with laser pointer and page advance features
Up to 5000 hours lamp life
SUMMARY - Optoma ew330 2200 Lumens with 2000:1 Contrast Ratio and Native WXGA Resolution:

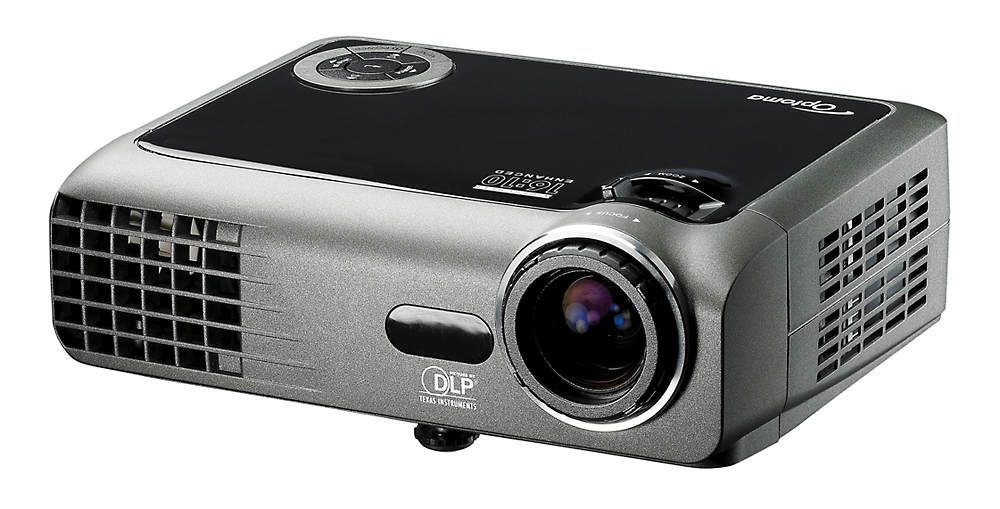

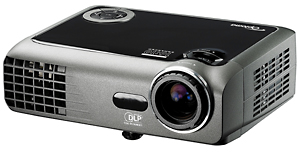

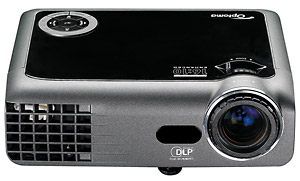

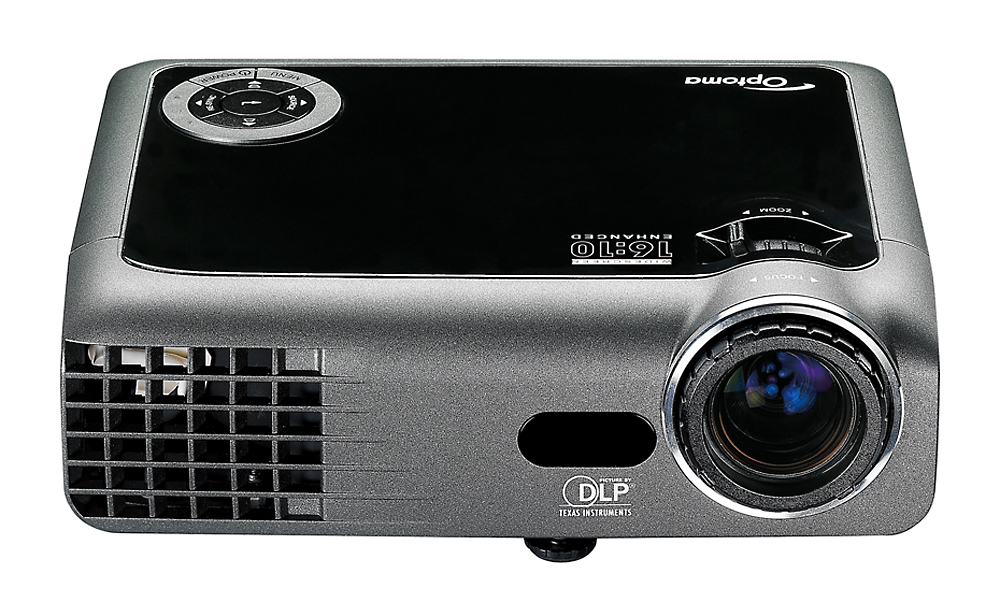

The Optoma EW330 is one of the lightest and brightest digital projectors. It combines the best in small size, brightness and BrilliantColor™ technology in a sleek, compact design. Perfect for the mobile presenter, the EW330 is the ideal “grab and go” solution.
DETAILED SPECS - OPTOMA EW330 2200 LUMENS WITH 2000:1 CONTRAST RATIO AND NATIVE WXGA RESOLUTION:
Display Technology
Single 0.65” DMD DLP Technology by Texas Instruments
Resolution
Native WXGA (1280 x 800)
Maximum Resolution
SXGA+ (1400 x 1050)
Brightness (Typical)
2200 ANSI Lumens
Contrast Ratio
2000:1 (Full On/Full Off)
Lamp Life and Type
Estimated at 5000/3000 Hours (STD/Bright)
165W P-VIP
Aspect Ratio
16:10 Native, 4:3, 5:4 & 16:9 Compatible
Throw Ratio
1.55 to 1.7:1 (Distance/Width)
Image Size (Diagonal)
27.3” to 359.4” (0.69 to 9.12m)
Projection Distance
3.3’ to 32.8’ (1.0 to 9.9m)
Displayable Colors
16.7 Million
Remote Control

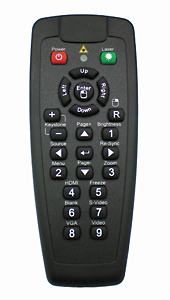

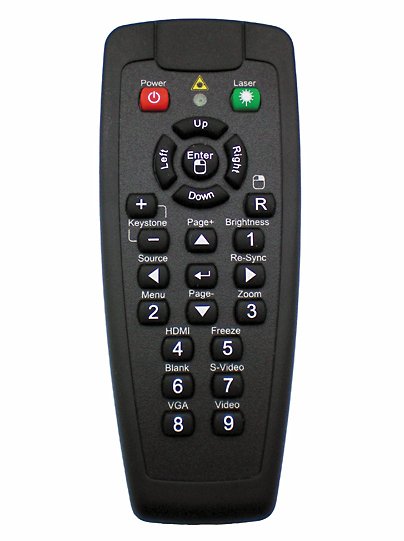

Fully Featured Remote Control w/Mouse and Laser Pointer
Computer Compatibility
VGA, SVGA, XGA, WXGA, SXGA+ Resized, VESA, PC and Macintosh Compatible
F = 2.41~2.55, f = 21.79~23.99mm, 1.10X Manual Zoom and Focus
Horizontal Scan Rate
15 to 100 kHz
Vertical Scan Rate
43 to 85 Hz
Keystone Correction
± 18º Vertical
Uniformity
85%
User Controls
Complete On Screen Menu Adjustments in 22 Languages
Projection Method
Front, Rear, Ceiling Mount, Table Top

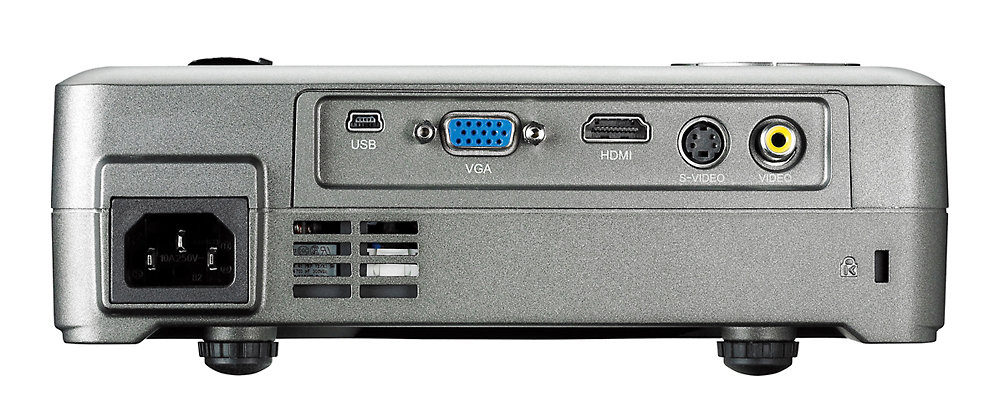

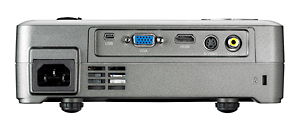

I/O Connectors
HDMI, VGA-In, Composite Video, S-Video, USB
Security
Kensington® Lock Port
Weight
2.4 lbs (1.1 kg)
Dimensions (W x H x D)
8” x 2.5” x 6.1” (205.5 x 64 x 156 mm)
Noise Level
31dB/33dB (STD/Bright)
Power Supply
AC Input 100-240V, Auto-Switching
Power Consumption
225 Watts (Maximum), <10 Watts (Standby)
Operating Temperature
41-104º F (5-40º C) (80% Humidity), Adjustable Fan Speed for High Altitude Application
Standard Accessories
AC Power Cord, VGA to VGA Cable, Carrying Case, Remote Control, Batteries for Remote, Quick Start Guide, Warranty Card and User’s Manual
Optional Accessories
Ceiling Mount, VGA to Component Cable, S-Video Cable, Composite Video Cable, DVI to HDMI Adapter, HDMI Cable, Gold Service Warranty and Panoview™ Series Screens
