Native XGA (1,024 x 768), SXGA (1,280 x 1,024) compressed

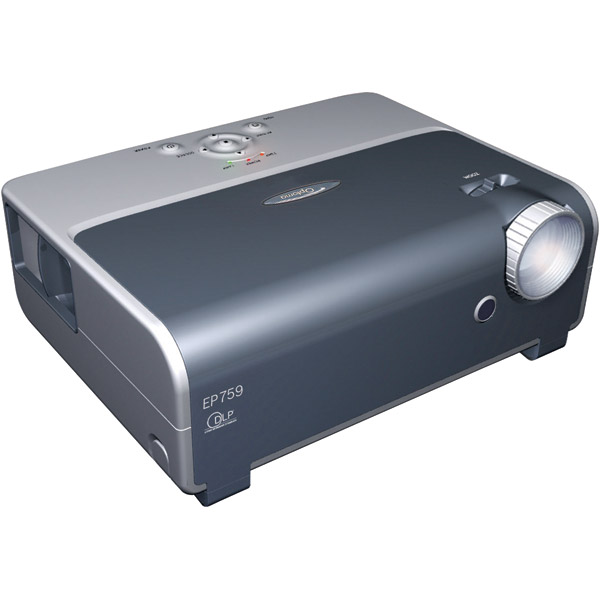

SUMMARY - Optoma EP759 DLP Projector
Installation grade
performance at a size you can handle. The EP759 is perfect for a
wide range of applications - from auditoriums and churches to
classrooms or conference rooms. Designed with today's multimedia
presentations in mind, this robust, compact, ultra bright DLP
business projector functions just as brilliantly when it comes to
high definition film and video as it does with graphic
presentations.
DETAILED SPECS - Optoma
EP 759 DLP Projector
Display Technology
0.7" Double Data
Rate DLP Technology Texas Instruments
Resolution
Native XGA (1,024 x
768), UXGA (1,600 x 1,200) compressed
Brightness (Typical)
3,500 Lumens
Contrast Ratio
(full on/full off)
2000:1
Lamp Life
(STD/ECO) 2,000/3,000 Hours
Throw Ratio
2.0 - 2.4 : 1
Image Size (diagonal)
29.5 to 246 inches (0.75 to 6.25 meters)
Noise Level (Typical)
33dB/28dB (Britemode/ECOmode)
Remote Mouse I/O
1
Remote Mouse Port
HDTV Compatibility
720p, 1080i, 576 p/i,
480 p/i
Monitor Loop Through
D
sub 15 VGA output (functional in both normal and standby modes)
Lamp Type
300 W User
Replaceable UHP Lamp
Projection Distance
4.9
~ 32.8 feet (1.5 ~ 10 meters)
Computer
Compatibility
UXGA compressed, SVGA
compressed, XGA, SVGA, CGA, VESA standards, PC & compatible,
Macintosh
Video Compatibility
NTSC (M, 4.43/3.58 MHz)
PAL (B, D, G, H, I, M, N)
SECAM (B, D, G, K, K1, L)
480i/p, 576 i/p, HDTV (1080i & 720p)
Aspect
Ratio
4:3 Native, 5:4 /
16:9 Compatible
Projection Lens
F /
2.4 ~ 2.6, f = 28 ~ 33.6 mm
1:1.2 Manual Zoom and Manual Focus
Keystone Correction
+/-16 degree
Audio
2
Internal Speakers Each with 3 Watt Output
Remote Control
Full function remote
mouse control with scroll wheel & Laser Pointer
Horizontal Scan Rate
15
~ 100 kHz
Vertical Scan Rate
43 ~ 120 Hz
Power Supply
AC
input 100 - 240 V
Power Consumption
360 W in Normal
Operation
Standby mode < 20 watts
Input Frequency
50
- 60 Hz with PFC Power Supply
Operating Temperature
41 ~ 95oF (5 ~ 35oC)
Displayable Colors
16.7 million colors
Projection Method
Front/rear/ceiling-mount/table-top
Uniformity
85%
I/O Connectors
Inputs: DVI-HDCP,
VGA, S-Video, Component video, Composite video, In and out audio
minijack, USB, RS-232
Outputs: VGA monitor loop through, Audio minijack, USB, RS-232
Standard Accessories
AC
power cord, VGA to DVI cable, Composite video cable, S-video
cable, VGA cable, USB cable, D-sub15 to component (YPbPr), remote
mouse control, battery for remote, lens cap, users guide, quick
start guide, Soft carrying case, warranty card
Optional Accessories
Short throw lens,
ceiling mount kit, VGA to Component cable, DVI to DVI cable
