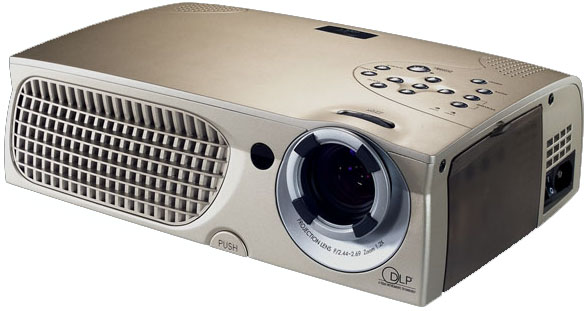

Optoma H56 HDTV Compatible DLP Home Theater Projector
with 1000 ANSI Lumens
OVERVIEW - Optoma H-56 Home
Theater Projector
Optoma's home theater projectors represent
quality engineering and a new lifestyle. Rather than simply updating a data
projector with home theater features, Optoma specifically designed and
fine-tuned the H56 for home theater use. It reveals deep, rich colors, and
displays impressive black levels to define images in vivid detail for the
ultimate home theater experience. It displays high definition formats at
optimal resolutions so you always get the best picture quality. Balancing
sleek aesthetic form with home theater function, Optoma brings the movie
theater into the comfort of your own home.
Key Features
Contrast Ratio
Brightness
Aspect Ratio
Native Resolution
2000:1
1000 ANSI Lumens
4:3
1024 x 768
SPECIFICATIONS - optoma h56 dlp
video pojector
Display
Double Data Rate (DDR)
DLP Technology by Texas Instruments
Resolution
Native XGA (1024 x
768), SXGA (1280 x 1024) compressed
IBM PC and
Compatibles Apple Macintosh, iMac, NEC PC98 Series, Fujutsu FM Towns,
and VESA Standards, SXGA, XGA, SVGA, VGA (resizing)
Aspect Ratio
4:3 Native, 16:9
Compatible
Contrast Ratio
(Typical)
2000:1
Displayable colors
16.7 Million Colors
Brightness
(Typical)
1,000 ANSI Lumens
Projection Lens
F/2.44-2.69, f =
28.8–34.5mm, 1:1.2 Manual Zoom and Manual Focus
Throw Ratio
2.0 ~ 2.4
Projection Screen
Size
22" (0.55m) – 305"
(7.7m)
Projection Distance
3.8' (1.1m) – 40.7'
(12.4m)
Horizontal Scan
15 – 100 kHz
Vertical Refresh
Scan
43 – 120 Hz
Lamp Type
200 W User
Replaceable UHP Lamp
Lamp Life (Typical)
2,000 Hours
Keystone Correction
+ / -16 Degrees
Weight
6.4 lbs (2.9kg)
Dimension (W x D x
H)
10.9 x 8.9 x 3.3
inches (277 x 255 x 85 mm)
Remote Control
Remote Control
Power Supply
AC input 100–240v,
50–60 Hz
Power Consumption
320 Watts
Operation
Temperature
0°C–40°C /
32°F–104°F
Noise Level
(Typical)
32 dB in Normal
Operation
Uniformity
90%
Audio/Video Inputs
DVI Connector
Audio/Video Inputs
DVI Connector
HD15 D-Sub Connector (Component/HDTV) Mini DIN
Connector (S-Video)
RCA Composite Connector (Video)
Communications
1 RS-232, +12V
Relay (Screen Trigger)
Warranty
Three (3) years
Limited Warranty, Parts and Labor; 90 Days on Lamps
Standard
Accessories
Lens Cover,
Connector Cover, AC Power Cord, S-Video Signal Cable, Composite Video
Cable, VGA to Component Video Adaptor, Component to DVI Cable, Wireless
Remote Control, AA Type Batteries x 2, User Manual (Print and CD) +
Quick Start Card, Warranty Card
Optional
Accessories
Ceiling Mount Kit
w/5M Cable, 30pin-DVI Signal DVI to DVI Cable (1.8M)
