KEY POINTS - HD73 Optoma 1100 ANSI Lumens Home Theater Projector with DLP DarkChip3:
Native 720p Home Theatre Projector (1080p Compatible)
DarkChip3 DLP technology
1100 ANSI lumens with a 6000:1 contrast ratio in ImageAI mode
BrilliantColor technology
TrueVivid color enhancement
Wide angle zoom lens with throw ratio of 1.58-1.90:1
Light shield design and ultra-quiet operation
Dual digital HDTV connectivity (DVI-I w/HDCP and HDMI)
5x color wheel to give superior viewing
SUMMARY - Optoma hd73 1100
ANSI Lumens Home Theater Projector with DLP DarkChip3:

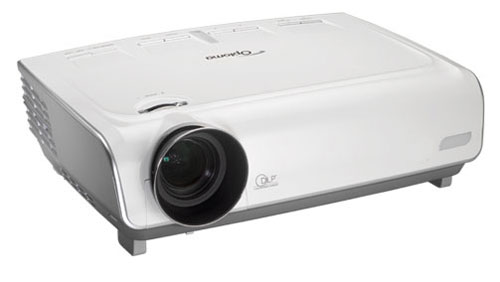

The Optoma HD73 is a native 720p home theater projector that offers amazing performance and picture quality. Based on Texas Instruments’ DarkChip3 DLP chipset, the HD73 also features the latest
color processing technologies that deliver higher brightness and more vibrant
colors to the projecting image. At 1100 lumens and a 6000:1 contrast ratio, with ImageAI, the Optoma
HD73 takes the high-definition home theater projector to a higher level.
DETAILED SPECS - OPTOMA HD73
HOME THEATER PROJECTOR:
Display
Technology
Single 0.65”
DarkChip3 DLP Technology by Texas Instruments
Brightness (Typical)
1100 Lumens
Resolution
XGA (1280 x 768)
Maximum
Resolution
UXGA (1600 x
1200), 1080p (1920 x 1080)
Contrast
Ratio
6000:1 in ImageAI
Mode
4500:1 (Full On/Full Off)
Lamp Type
and Life
220W UHP, 3000
Hours (STD)
Noise
Level
27 dB (STD)
Optimization
Faroudja DCDi
Size (Diagonal)
28” - 304” (.7 -
7.7 m)
Projection Distance
3.9’ - 39’ (1.2 -
11.9 m)
Throw
Ratio
1.58 to 1.90:1
(Distance/Width)
Displayable Colors
10-bit per
Channel Color Processing
Computer
Compatibility
UXGA, SXGA+, WXGA,
XGA, SVGA, VGA Compression, VESA Standards, PC and Macintosh
Compatible
Video
Compatibility
NTSC (M,
3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K,
K1, L), HDTV (720p, 1080i/p)
Aspect
Ratio
16:10 Widescreen
Native with Support for 4:3 and 16:9
Projection Lens
F/2.5~2.8, f =
22.25~26.69mm,
1.2x Manual Focus/Digital Zoom
Keystone
Correction
Horizontal and
Vertical
Vertical
Refresh Rate
43 to 85 Hz
I/O
Connectors
HDMI, DVI-I w/HDCP,
Component Video, Composite Video (RCA), S-Video, RS-232, Two IR
Receivers, +12V Trigger Relay
Security
One Kensington
Lock Port
Projection Method
Front, Rear,
Ceiling Mount, Table Top
Uniformity
90%
Operating
Temperature
5 - 35°C, 80%
Humidity (Max.)
Storage
Temperature
-20 - 60°C, 80%
Humidity (Max.)
Power
Supply
100 - 240 Volts,
50-60 Hz
Power
Consumption
285W ±10% Full
Power,
<13W Standby Power
Weight
7 lbs (3.2 kg)
Dimensions
(W x H x D)
13.56” x 3.72” x
9.67”
(344 x 94 x 246mm)
Standard
Accessories
Power Cord,
Composite Video Cable, S-Video Cable, Remote Control, Batteries
for Remote, Lens Cap, User’s Manual, Quick Start Guide and
Warranty Card
Warranty
2 Years Limited
Parts and Labor with a Zero Dead Pixel Policy, 90 Days on Lamp
