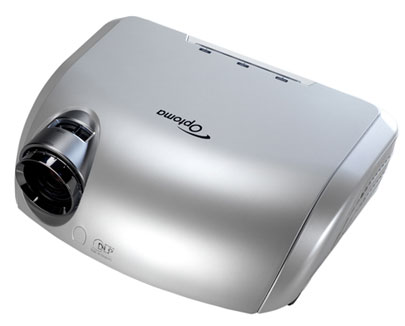

KEY POINTS - HD81 Optoma 1400 ANSI Lumens True HD 1080p Dlp Home Theater Projector:
Native 1920 x 1080p resolution
1400 ANSI lumens brightness
10,000:1 contrast ratio
16-step auto and manual iris
Extensive connectivity options: three HDMI plus one external HDMI expansion, two BNC component (YPbPr/RGBHV), two component, three s-video, three composite video, one VGA, RS-232, two 12V triggers, one IR port extension
IR remote control with discrete IR codes for source and format, selection perfect for home theater automation
SUMMARY - Optoma hd81 1400 ANSI Lumens True HD 1080p Dlp Home Theater Projector:
The Optoma HD81 combines the finest 1080p DLP home theater projector with a studio-quality imaging processor. Featuring Texas Instruments’ DarkChip3 DLP technology, the Optoma HD81 offers a superb projection solution. The HD81’s two-piece design delivers remarkable, personalized adjustment setting to achieve deeper blacks, higher precision and brilliant high-contrast images.
DETAILED SPECS - OPTOMA HD81 1080P HOME THEATER PROJECTOR:
Brightness
1400 ANSI Lumens
Resolution
Native 1080p
(1920 x 1080)
Contrast
Ratio
10,000:1
Processing
Motion Adaptive
480i, 576i, 720p and 1080i De-Interlacing, 10-bit Image
Processing, Advanced 3D Comb Filter, Three Presets Plus Three
Programmable Display Formats, Advanced Noise Reduction and
Sharpening
Color
Management
User Definable
Gamma, RBGCYM
6-Color 16 Region Adjustment, Three
User Definable Modes Plus ISFccc Color Settings
Lamp Life
and Type
2000 hours, 300W
UHP
Display
Type
Single 0.95”
DarkChip3 LVDS DMD
Throw
Ratio
1.85 – 2.22:1
(Distance/Width)
Projection Distance
4.92’ to 32.8’
Size
30” to 300”
Aspect
Ratio
Native 16:9
Keystone
Correction
±5° Vertical
Displayable Colors
1.07 Billion
Colors,1024 Levels of Grayscale Adjustments
Projector:
RS-232, HDMI Video Processor:
Three HDMI Plus One External HDMI Expansion, Two Component, Two
BNC Component (YPbPr/RGBHV), Three S-Video, Three Composite
Video, One VGA, RS-232, Two 12V Triggers, One IR Port Extension
Weight
Projector:
10 lbs (4.5kg) Video Processor: 9.2 lbs (4.2 kg)
Power
Supply
AC input 90-264v
, 50-60 Hz
Power
Consumption
430W, < 12W
Standby Mode
Storage
Temperature
-7 - 140°F (-20 -
60°C),
80% Maximum Humidity
Dimensions (W x H x D)
Projector:
16” x 4.6” x 12.2”
(411 x 116 x 311mm) Video Processor:
17” x 2.5” x 12”
(406 x 139 x 304mm)
Noise
Level
32dB
Standard
Accessories
Two AC Power
Cords, Two HDMI Cables, Component Cable, Two RS-232 Cables,
Remote Control, Batteries for Remote, External IR Module, User’s
Manual, Lens Cap, Warranty Card and Quick Start Card
