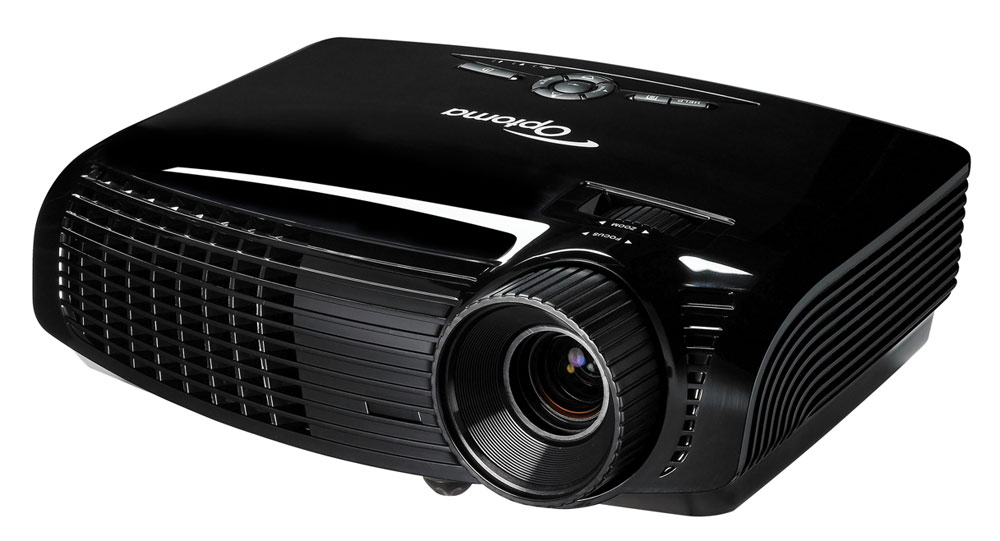

KEY POINTS - Optoma tw762 wxga dlp 3d ready portable video projector with 4000 ansi lumens:
Easy-to-read text – Bright at 4000 ANSI lumens; high contrast ratio of 3000:1
Standby VGA and audio pass-thru features reduce power consumption
Built-in 8-watt speaker
Remote monitoring and control capabilities over a LAN network via integrated RJ45 – Connection compatible with Crestron RoomView
SUMMARY - Optoma tw762 WXGA DLP 3D Ready Portable Video Projector with 4000 Ansi Lumens:
This high-powered and feature-rich projector is the go-to projector for those seeking extensive flexibility and low cost of ownership. Featuring WXGA resolution and super-bright 4000 lumens, the TW762 can be readily controlled and monitored over the network and offers extensive connection options. Perfect for conference rooms, meeting rooms, training facilities and classrooms, the TW762 delivers in the most demanding settings. 3D content can be viewed with active LCD shutter glasses when the projector is connected to a computer with a compatible 3D graphics card. Please visit www.optoma.com for more information.
DETAILED SPECS - OPTOMA TW762 WXGA DLP 3D READY PORTABLE VIDEO PROJECTOR WITH 4000 ANSI LUMENS:
Display Technology
Single 0.65" DMD DLP Technology by Texas Instruments
Resolution
Native WXGA (1280 x 800)
Maximum Resolution
WXGA (1280 x 800)
Brightness (Typical)
4000 ANSI Lumens
Contrast Ratio
3000:1 (Full On/Full Off)
Lamp Life and Type
4000/3000 Hours (STD/Bright) 280W P-VIP
Throw Ratio
1.28 to 1.536:1 (Distance/Width)
Projection Distance
3.93' to 32.8' (1.2 to 10m)
Image Size (Diagonal)
36.3" to 362" (0.92 to 9.19m)
Offset
112.5%
Displayable Colors
1.07 Billion
Uniformity
85%
Audio
8-Watt Speaker
Remote Control
Full-Featured IR Remote with Mouse and Laser Pointer
Computer Compatibility
UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC and Macintosh
Compatible
Monitor: D-Sub 15-Pin VGA Output Audio: Stereo Mini-Jack Output
(Functional in Both Normal and Standby Modes)
Projection Lens
F=2.4-2.66, f="18.2-21.8mm," 1.2x Manual Zoom and Focus
User Controls
Complete On-Screen Menu Adjustments in 23 Languages
I/O Connectors
HDMI, Two VGA-In, VGA-Out, S-Video, Composite Video, Three Stereo Audio-In, Stereo Audio-Out, RJ45, RS-232, USB and +12V Trigger.
Security
Kensington® Lock, Security Bar and Keypad Lock
Projection Method
Front, Rear, Ceiling Mount, Table Top
Weight
6.4 lbs (2.9kg)
Dimensions (W x H x D)
12.76" x 3.82" x 9.21" (324 x 97 x 234 mm)
Noise Level (STD/Bright)
29dB/31dB
3D Compatibility
120Hz Frame Sequential 3D for Resolutions Up to 720p, 60Hz Field Sequential 3D for Resolutions Up to 480i
Horizontal Scan Rate
15.3 - 91.1 KHz
Vertical Refresh Rate
24 - 120 Hz
Operating Temperature
41 to 104°F (5 to 40°C), 85% Max Humidity
Power Supply
AC Input 100-240V, 50-60Hz, Auto-Switching
Power Consumption
372 Watts Max (Bright), 314 Watts (STD), <1 Watt (Standby)
Standard Accessories
AC Power Cord, VGA to VGA Cable, USB Cable, Remote Control, Batteries
for Remote, USB Cable, Carrying Case, Lens Cap, Multilingual CD-ROM
User's Manual, Quick Start Card and Warranty Card
Optional Accessories
Wireless Dongle, HDMI Cable, Ceiling Mount, VGA to Component Cable,
S-Video Cable, Composite Video Cable, RS-232 Cable and Panoview™
Series Screens
Warranty
Three-Year Optoma Express Replacement Service, One-Year on Lamp
