KEY POINTS - Optoma tx5423d 3d portable digital multimedia projector:
Easy-to-read text – bright at 2800 ANSI lumens and high 3000:1 contrast ratio
Broadcast messages to the projector over the network
Eco-friendly low power consumption - sub-one watt standby mode
Remote management and control via RS-232 or RJ45
Protect your investment – built-in security bar, control panel lock, logo display at start-up and user-selectable password
Built-in closed captioning
SUMMARY - Optoma tx5423d 3D Portable Digital Multimedia Projector:

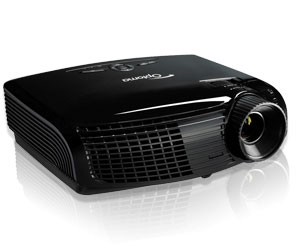

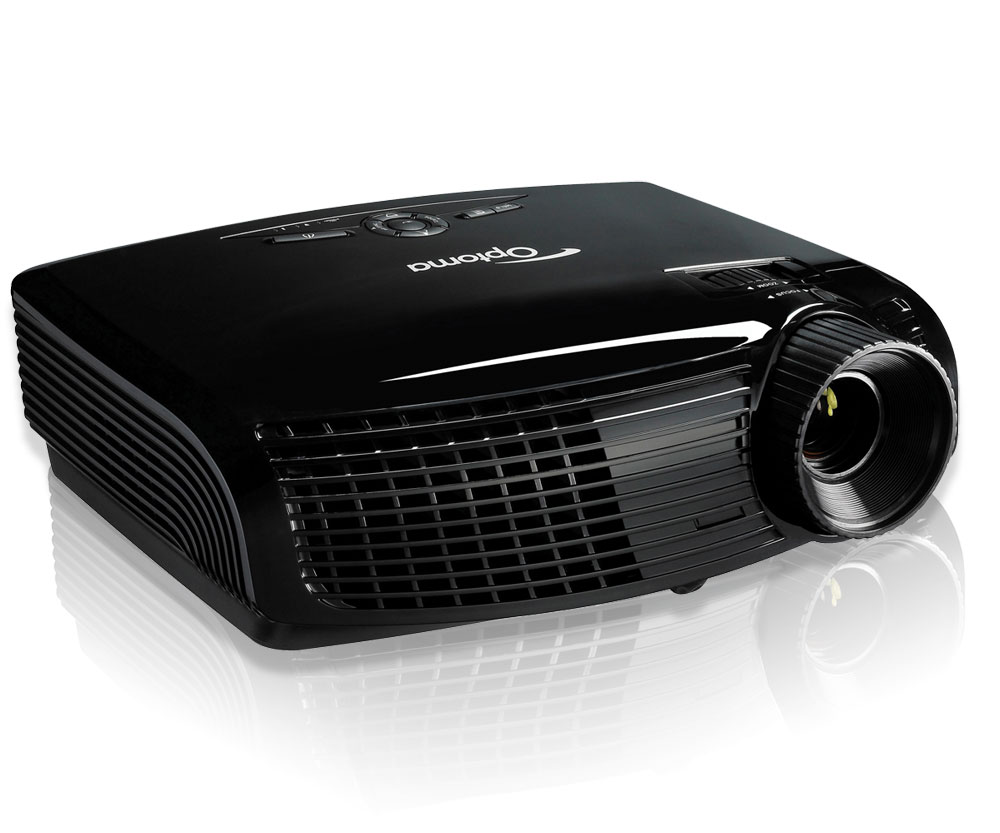

The Optoma TX542-3D is designed to meet the demanding requirements of school districts and businesses. Wired networking allows remote management and control of the projector, bright, high contrast images provide easy-to-read text, and the built-in closed captioning decoder displays text from videos that have closed captioning embedded in the signal. The optoma TX-542-3D comes with a built-in 10-watt speaker system outputs volume required for larger audiences. Optoma backs the TX542-3D with 3 years of Express Replacement Service and a one year lamp warranty to provide added peace of mind.
* 3D content can be viewed with active LCD shutter glasses when the projector is connected to a computer with a compatible 3D graphics card.
DETAILED SPECS - OPTOMA TX542-3D 3D PORTABLE DIGITAL MULTIMEDIA PROJECTOR:
Display Type
Single 0.55” DMD DLP Technology by Texas Instruments
Resolution
Native XGA (1024 x 768)
Maximum Resolution
UXGA (1600 x 1200)
Brightness (Typical)
2800 ANSI Lumens
Contrast Ratio
3000:1 (Full On/Full Off)
Lamp Life and Type
5000/4000 Hours (STD/Bright) 180W P-VIP
Throw Ratio
1.6 to 1.92:1 (Distance/Width)
Projection Distance
3.93’ to 32.8’ (1.2 to 10m)
Image Size (Diagonal)
30” to 307” (0.92 to 9.21m)
Aspect Ratio
4:3 Native, 16:9 and 16:10 Compatible
Remote Control
Fully Featured IR Remote with Mouse and Laser Pointer
Audio
Two 5-Watt Stereo Speakers
Displayable Colors
1.07 Billion
Offset
115%
Uniformity
85%
Keystone Correction
±40° Vertical
Computer Compatibility
UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC and Macintosh Compatible
AC Power Cord, VGA to VGA Cable, Remote Control, Batteries for Remote, USB Cable, Carrying Case, Lens Cap, CD-ROM User’s Manual, Quick Start Card and Warranty Card
Optional Accessories
Wireless Dongle, Ceiling Mount, HDMI Cable, VGA to Component Cable, S-Video Cable, Composite Video Cable, RS-232 Cable and Panoview™ Series Screens
Warranty
Up to 3 Years Limited Parts and Labor, Up to 1 Year on Lamp
