Optoma TX728 Portable Dlp Projector optoma tx728

SUMMARY - Optoma tx728 2700 ANSI Lumens Portable DLP Video Projector:

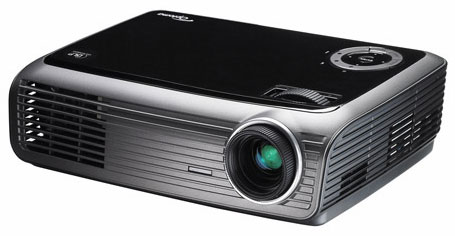

The Optoma TX728 is a DLP video projector that features 2700 ANSI lumens brightness, 2200:1 contrast ratio and features a variety of connectivity options such as DVI w/HDCP. At only 4.4 pounds, the Optoma TX728 is ultra-portable and offers a bold, bright solution for even the most demanding presentation environments.

DETAILED SPECS - OPTOMA TX728 PORTABLE DLP PROJECTOR:

Display Technology

0.55” DDR DLP Technology by Texas Instruments

Resolution

Native XGA (1024 x 768)

Maximum Resolution

UXGA (1600 x 1200) Resized

Brightness (Typical)

2700 Lumens

Contrast Ratio

2200:1 (Full On/Full Off)

Lamp Life and Type

Estimated at 2000/3000 Hours (STD/ECO)
200W UHP

Throw Ratio

1.95-2.15:1 (Distance/Width)

Image Size (Diagonal)

27.5” to 302.9” (0.7 to 7.69 m)

Projection Distance

3.9’ to 39.4’ (1.2 to 12 m)

Remote Control

Presentation Friendly IR Remote w/ Laser Pointer

Displayable Colors

16.7 Million

Aspect Ratio

4:3 Native, 1.78:1, 5:4 and 16:9 Compatible

Audio

One 1-Watt Speaker

Computer Compatibility

VGA, SVGA, XGA, SXGA, SXGA+, UXGA Resized, VESA, PC and Macintosh Compatible

Video Compatibility

NTSC, PAL, SECAM, EDTV (480p), HDTV (576i/p, 720p, 1080i)

User Controls

Complete On Screen Menu Adjustments in 11 Languages

Projection Lens

F= 2.41~2.55, f= 21.79~23.99mm, 1.1x Manual Zoom and Focus

Monitor Loop Through

D-Sub 15 VGA Output (Functional in Both Normal and Standby Modes)

I/O Connectors

DVI-I w/HDCP, VGA-In, VGA-Out, S-Video, Audio-In, RS-232, USB

Security

One Kensington Lock Port

Uniformity

85%

Projection Method

Front, Rear, Ceiling Mount, Table Top

Keystone Correction

± 40º Vertical

Horizontal Scan Rate

15 to 100 kHz

Vertical Refresh Rate

43 to 85 Hz

Weight

4.4 lbs (2.0 kg)

Dimensions (W x H x D)

10.2” x 2.8” x 7.4” (259 x 73 x 188 mm)

Noise Level

33db/31dB (STD/ECO)

Power Supply

AC Input 100 - 240V, Auto-Switching

Power Consumption

260 Watts (Maximum), <10 Watts (Standby Power)

Operating Temperature

40-95°F (5-35°C) (80% Humidity), Adjustable Fan Speed for High Altitude Application

Standard Accessories

AC Power Cord, VGA to VGA Cable, Remote Control, Batteries for Remote, Lens Cap, Quick Start Guide, Warranty Card, User’s Manual and Carrying Case

Warranty

Three Years Optoma Express Replacement Service, One Year on Lamp
