Stunning brightness at 5000 ANSI lumens with 3000/2000 hours (STD/Bright) of lamp life
Power zoom, focus and lens shift provide installation flexibility
Professional installation-based DarkChip3 DLP projector with XGA resolution
Optional wireless connectivity provides both a link for data and video
Powerful and convenient complete network management through RJ45 connection
Extensive connections including: HDMI, DVI w/HDCP, two VGA-in, BNC (RGBHV) connectors, S-Video,
Composite, RS-232, RJ45, USB mouse control, six audio-in, audio-out, VGA-out, and a 12V Trigger

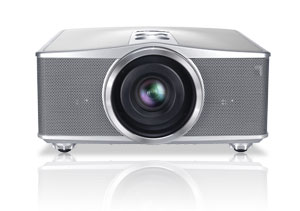

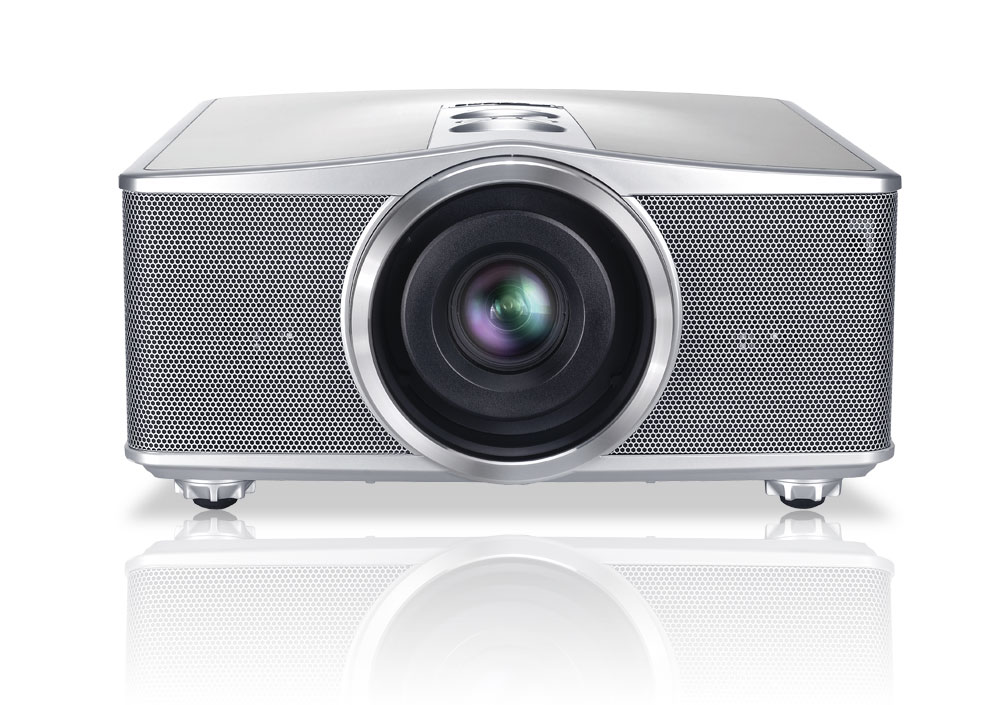

SUMMARY - Optoma tx783l DLP Multimedia Projector with 5000 Lumens:
The Optoma TX783 incorporates a center lens design, motorized lens shift and power focus plus extensive connectivity and networking, the flexible and powerful Optoma TX783 projector is ideal for conference facilities and large auditoriums. The latest BrilliantColor and scaling technologies plus a DarkChip3 DLP chipset from Texas Instruments allow the Optoma TX783 to deliver powerful and vivid images.
Complete On Screen Menu Adjustments in 21 Languages
Monitor Loop Through
D-Sub 15-Pin VGA Output (Functional in Both Normal and Standby Modes)
I/O Connectors
HDMI (Audio Supported), DVI-D w/HDCP, Two VGA-In, VGA-Out, S-Video, Composite Video, Five BNC (RGBHV/YPbPr), Six Mini-Jack Audio-In, Audio-Out, USB, RS-232, RJ45, +12V Trigger
Security
Kensington Lock Port, Password Protection
Projection Method
Front, Rear, Ceiling Mount, Table Top
Uniformity
85%
Weight
21 lbs (9.5kg)
Dimensions (W x H x D)
15.7 x 6.6 x 18.7 (398 x 167 x 475 mm)
Noise Level (STD/Bright)
30dB/32dB
Operating Temperature
41° to 95°F (5° to 35°C), 80% Max Humidity, Adjustable Fan Speed for High Altitude Application
Power Supply
AC Input 100-240V, Auto-Switching
Power Consumption
410 Watts (Maximum), <5 Watts (Standby)
Standard Accessories
AC Power Cord, VGA to VGA Cable, USB Cable, RS-232 Cable, Remote Control, Batteries for Remote, Lens Cap, Quick Start Card, CD-ROM Users Manual and Warranty Card
Optional Accessories
Wireless Module, Composite Video Cable, S-Video Cable, HDMI Cable, DVI Cable, Audio-Out Adapter and Panoview Series Screens
Warranty
3 Years Optoma Express Replacement Service, 1 Year on Lamp
