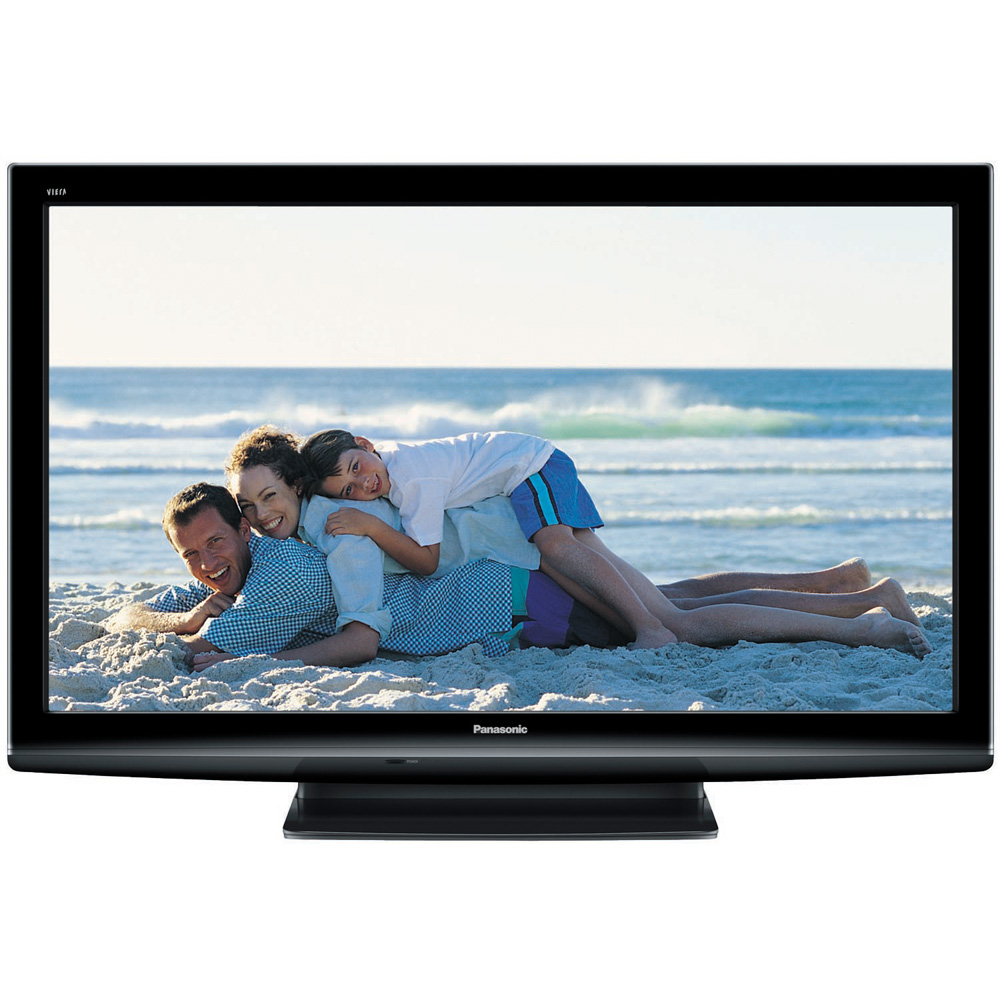

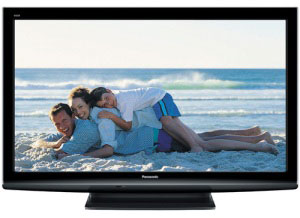

Panasonic TCP54S1 Widescreen Plasma TV tcp54s1

Model Type

Plasma

Series

S1

Model Year

2009

VIDEO

Screen Size

54" Class (54.1" diagonal)

Display Resolution

1080p

Contrast Ratio

Dynamic: Infinite Black/Over 2,000,000:1
Native: 40,000:1

Aspect Ratio

16:9

Native Resolution (Number of Pixels)

2,073,600 (1,920 x 1,080)

Pixel Pitch (H x V)

0.624 x 0.624 mm

Moving Picture Resolution

1080 lines

Shades of Gradation

6,144 equivalent

Aspect Control

Normal, Just, Zoom, Full, H-fill

Panel

G12 Progressive 1080p HD NeoPDP (Plasma Display Panel)

Screen Coating (Filter)

New AR (Anti-Reflective) Filter

Progressive Scan

Yes

24p Cinematic Playback

No

24p Playback(2:3)

Yes

Digital Cinema Color

No

Deep Color

Yes

x.v.Color

No

Studio Ref Mode

No

Pro Setting

No

THX Mode

No

Motion Adaptive 3D Y/C Digital Comb Filter

Yes

3D Color Management

No

Sub Pixel Control

No

Motion Pattern Noise Reduction

Yes

AUDIO

Speakers

Full-range x 2 (L, R)

Number of Speakers

2

Audio Output

20 W ( 10% THD )
(6 ohms, 150 Hz - 16 kHz)

BBE® VIVA HD3D Sound

No

Surround Sound

Yes

INPUTS & JACKS

Integrated ATSC Tuner

Yes

SD Memory Card Slot (SDHC Compatible)

Y (JPEG playback)

HDMI Input

3 (1 side)

Analog Audio Input (for HDMI)

Yes

Composite Video Input

2 (1 side)

S-Video Input

1

Audio Input (for Video)

2 (1 side)

PC Input

No

Component Video Inputs (Y, PB, PR)

2

Audio Input (for Component Video)

2

RS232C

No

Analog Audio Output

No

Digital Audio Output

1

CONVENIENCE

VIERA Link

Yes

VIERA Cast(IPTV)

No

VIERA Tools

Yes

Game Mode

Yes

Pixel Orbiter (Anti-Image Retention)

Yes

Menu Languages

English/Spanish/French

V-Chip Program Lockout

Yes

Built-In Closed Caption Decoder

Yes

Timers

Yes

Video Input Label

Yes

Video Picture Memory

Yes

Remote Control

IR

GENERAL

Power Supply

AC 120 V, 60Hz

Rated Power Consumption

599 W

Standby Power Consumption

0.3 W

Energy Star

Yes

Receiving System

ATSC/QAM/NTSC

Operating Temperature

32°F - 104°F (0°C - 40°C)

Safety Standard

UL6500/C-UL

Swivel Angle

No

Optional Wall-mounting Bracket

TY-WK5P1RW

SPECIFICATIONS

Dimensions (H x W x D) with Stand

34.8" x 51.7" 15.3"

Dimensions (H x W x D) without Stand

32.8" x 51.7" x 4.2"

Weight (lbs.) w/Stand

90.4 lbs

Weight (lbs.) without Stand

83.8 lbs

Carton Dimensions

37.0" x 57.6" x 13.1"

HDTV Display Capability (1080p, 1080i, 720p)

Yes

EDTV Display Capability (480p)

Yes

Gross Weight [lbs (kg)]

105.8 lbs. (48.0 kg)

600 Hz Sub-field Drive

Yes

LAN Port

No
