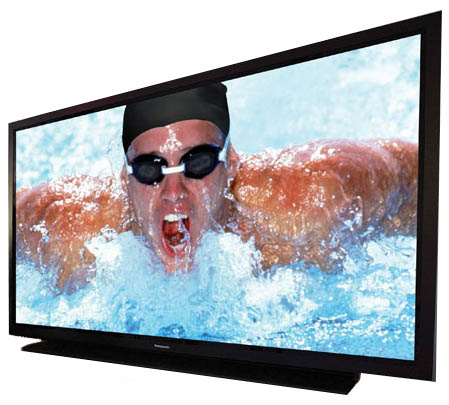

Click to Enlarge Image
(shown with optional stand)
Preliminary specifications. Subject to change
without notice.
KEY POINTS - TH103PF9UK Panasonic 103 inch Professional Series 1080p HDTV Plasma Tv Screen:
World's largest plasma tv display
Full HDTV
pixel resolution of 1,920 x 1,080p
1000 cd/m2
brightness
Contrast
ratio of up to 4,000:1 to reproduce exceptionally deep, rich
blacks
Industry's
leading 16-bit processing to produces 4,096 steps of gradation
Effective
display area is approximately 89" wide by 50" high
Supports
1080/60p/50p, 1080/60i/50i/24p/24sF/25p/30p, 1080/50i,
720/60p/50p, 480/60i/p, and 575/50i/p video signals
Accepts full 1080p signal via DVI and Component Video inputs (to
display HDMI devices in 1080p we recommend using a DVI to HDMI adapter cable)
Advanced
Dual Picture mode to overlay a video image onto a full-screen PC
Expanded
configurations for multi-screen displays and the ability to
enlarge an image up to 4X vertically and horizontally
Three
interchangeable slots and comes standard with the TY-FB9DD DVI
board (compatible with UXGA input), TY-42TM6A analog component
board, an integrated D-sub15 PC input, and an integrated D-sub9
RS-232C interface
Plug-in
architecture allows the addition of multi-function terminal
boards for added connectivity and functionality
Industry-leading 3 year limited warranty
Available 4th quarter 2006
SUMMARY -
Panasonic th103pf9uk 103 inch Professional Series 1080p HDTV Plasma Tv Screen:
With a 103 inch diagonal picture, the Panasonic TH-103PF9UK is the world's largest plasma tv display! Featuring a native 1920 x 1080p resolution.
High-definition television the way it was meant to be seen.
From the lobby or conference room
of a corporate headquarters to the focal point of a trade show
exhibit, this super-large 1080p panel is a show stopper for a wide
range of professional applications including video production and
screenings, live events, and control and command centers. This
super-size display is equivalent in size to four 50-inch Panasonic
plasma tv displays.
The TH-103PF9UK will available before Christmas of this year and
requires professional installation due to its weight and size.
DETAILED SPECS -
PANASONIC TH103PF9UK 103 INCH HDTV PLASMA
SCREEN:
Display
Screen Size (Diagonal) 103 - inch
Aspect ratio 16:9
Effective Display Area (WxH) 89.3" x 50.3"
Resolution (HxV) 1,920 × 1,080 pixels
Pixel Pitch (HxV) 1.182 x 1.182 mm
Brightness 1,000 cd/m2
Contrast Ratio 4000:1
Gradation 4,096 steps (equivalent)
Signal
Compatibility
Scan Rate Horizontal frequency 15-110 kHz
Vertical frequency 48 -120Hz
PC Signal Compatibility VGA, SVGA, XGA, SXGA, UXGA (Compressed)
Supported Video Standards NTSC, PAL, PAL 60, SECAM, Mondified NTSC
Video Signal Compatibility 525(480)/60i-60p, 625(575)/50i-50p,
750(720)/60p-50p, 1250(1080)/50i
1125(1080)/60i-50i-24p-24sF-25p-30p-60p-50p…SMTPE274M
Input / Output Fixed Terminal
PC IN Mini D-sub 15pin x1 Analog RGB/Components Plug & Play (VESA
DDC 1/2B)
AUDIO IN M3 jack x1
SERIAL D-sub 9-pin x1 External control,RS-232C compatible
Interchangeable Terminals
(Slot1) Vacant
(Slot2:TY-FB9FDD) DVI-D (HDCP) IN DVI x 1
AUDIO IN M3 jack x1 L / R : 0.5 Vrms
(Slot3:TY-42TM6A) COMPONENT IN BNC x 3 Analog RGB / Components
AUDIO IN(L/R) RCA pin jack x 2
ELECTRICAL
Power Requirements AC 200 V,50Hz/60Hz
Power Consumption 1500 W
SOUND
Audio Output Line out L/R
MECHANICAL
Dimensions (W × H × D) 95.0" × 55.9" × 5.0" (2,414 × 1,421 × 127.5
mm)
(5.6" (141mm) when including protruding portion of slots)
Weight approx. 474 lbs. (215Kg)
Cabinet color Black
IR REMOTE
CONTROL
Power Requirements DC 3V (2 × AA Size dry cells)
Operation distance approx. 23ft (7m) in front of plasma display
Weight approx. 4.6oz (130g) including batteries
INCLUDED
ACCESSORIES
Remote control, Fixing Band×2, AC power cord, Operating instruction
book
