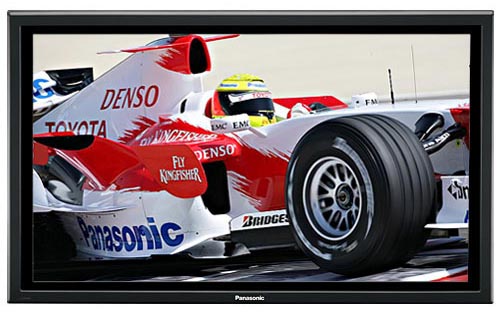

KEY POINTS - TH37PH10UK Panasonic 37 inch HDTV Plasma Tv Screen:
Resolution 1,024 x 720
Brightness 1,200 cd/m2
Contrast Ratio Max. 10,000:1 (400:1)
From an on-board PC to CAT5 to HD-SDI, Panasonic offers the
widest array of optional boards to customize a panel to meet
practically any application
Includes 5 BNC male to RCA female adapters
SUMMARY - Panasonic th37ph10uk 37 inch HDTV Plasma Tv Screen:
A 37" Panasonic plasma display with the size and
the exceptional image quality that is equally at home in the
broadcast studio, a corporate boardroom, or your living room.
Panasonic combines the very best in image quality, customization and
size selection in its new Professional Series plasma family. With
industry-leading 16-bit processing, 3,072 shades of gradation and an
up to 10,000:1 contrast ratio, the TH-37PH10UK provides significant
image quality improvements to produce an unforgettable visual
experience.
With Panasonic's multi-function input slot
system, this large-screen panel offers seamless integration in
virtually any AV, PC or interactive environment, so it can be used
in the widest range of vertical or horizontal display applications.
This 37" panel is more light weight and energy efficient, and its
ultra-stylish design looks ultra sleek even when the panel's turned
off. The TH-37PH10UK comes standard with PC Input, Audio Input (for
PC), Serial Control (RS-232C) Input, BNC Component Video/RGB Input
and Audio Input, BNC Composite Video Input, S-Video Input, and Audio
Input (for Video). Or, you can remove the standard boards and mount
up to three optional boards.
DETAILED SPECS - PANASONIC TH-37PH10UK 37 INCH HDTV PLASMA TV SCREEN:
Display
Screen Size 37-inch
Aspect Ratio 16:9
Effective Display Area (WxH) 32.2" x 18.0"
Resolution (HxV) 1024 x 720 Pixels
Pixel Pitch (HxV) 0.800 x 0.635 mm
Brightness 1200 cd/m2
Contrast Ratio (Bright Room) Max. 10000:1 (400:1)
Gradation 3072 steps (equivalent)
Multi PIP (Picture And Picture, Picture Out Picture, Picture In Picture)
Signal Compatibility
Scan Rate Horizontal frequency 15-110 kHz, Vertical frequency 48-120 Hz
PC Signal Compatibility VGA, WVGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, WSXGA+, UXGA, WUXGA (XGA and over resolution : compressed)
Supported Video Standards NTSC, PAL, PAL 60, SECAM, Modified NTSC
Input / Output
Fixed Terminal
PC IN Mini D-sub 15pin x 1 (Female) Analog RGB/Components
AUDIO IN M3 jack x 1
SERIAL D-sub 9-pin x 1 (Male) External control, RS-232C compatible
Interchangeable Terminals
Slot1 (TY-FB9BD)
CVBS IN BNC x 1 Composite
AUDIO IN (L/R) RCA pin jack x 2
S-VIDEO S-VIDEO x 1
AUDIO IN (L/R) RCA pin jack x 2
Slot2 (TY-42TM6A)
COMPONENT IN BNC x 3 Analog RGB/Components
AUDIO IN (L/R) RCA pin jack x 2
ELECTRICAL
Power Requirements 120 V AC, 50 Hz/60 Hz
Power Consumption 340 W
Power off condition 0.2 W
Stand-by condition Save OFF 0.7 W, Save ON 0.5 W
SOUND
Audio Output 16 W [8 W + 8 W] (10% THD)
MECHANICAL
Dimensions (W x H x D) 36.2" x 21.7" x 3.5"
Weight approx. 48.5 lbs (22.0 Kg)
Cabinet Color Black
ENVIRONMENTAL
Operating environment
Temperature 32 °F - 104 °F (0 °C - 40 °C)
Humidity 20 % - 80 % (Non condensation)
Altitude 0 - 9,100 feet (0 - 2,800 m)
Storage environment
Temperature –4 °F - 140 °F (–20 °C - 60 °C)
Humidity 20% - 90% (Non condensation)
Altitude 0 - 10,800 feet (0 - 3,300 m)
EMI REGULATIONS FCC Part 15 Class-B, ICES-003 Class B
SAFETY STANDARDS UL6500 Ver.2
IR REMOTE CONTROL
Power Requirements DC 3V (2 x AA Size batteries)
Operation distance approx. 23ft (7m) in front of plasma display
