Up to 60,000-hour panel
life - MACH Panel boasts a long service life of 60,000 hours
Built-In Video Wall
Processor - set up 2x2, 3x3, or even 4x4 multi-screen plasma walls
New Remote System
Monitoring Command - displays status via RS-232C
Flexible A/V and IT system
configurations - composite, component, RCA, BNC, PC, RGB, SDI,
HD-SDI, HDMI, DVI-D w/HDCP, Twisted-Pair Cable, and IEEE 802.11b
terminal boards available
Includes 5 BNC male to RCA female adapters
SUMMARY -

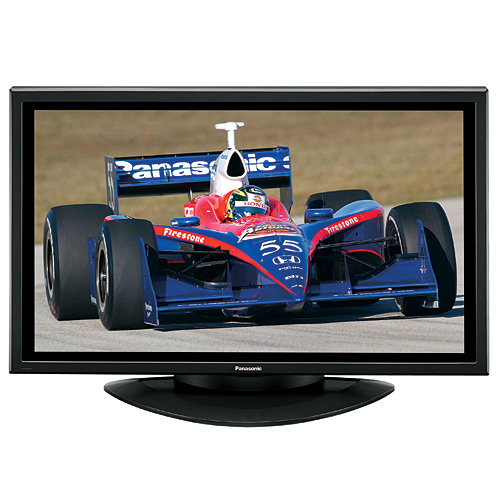

Panasonic th37phd8uk 37 inch HDTV Plasma Tv Screen:
The Panasonic TH-37PHD8UK 37 inch Plasma screen comes standard with PC Input, Audio Input (for PC), Serial Control (RS-232C) Input, BNC Component Video/RGB Input and Audio Input, BNC Composite Video Input, BNC Composite Video Output, S-Video Input, and Audio Input (for Video). You can remove the standard boards and mount one or two optional boards.
AV
• VIDEO IN/OUT(BNC) : 1.0 V [p-p] (75-ohm or high impedance)
• S VIDEO (MINI DIN 4PIN) Y : 1.0 V [p-p] (75-ohm) C : 0.286 V
[p-p] (75-ohm)
• AUDIO IN L/R (RCA PIN JACK x 2) : 0.5 V [rms] (high impedance)
COMPONENT/RGB
• Y/G (BNC) : 1.0 V [p-p] / composite (75-ohm) 0.7 V [p-p] /
non-composite (75-ohm)
• RB/B (BNC), PR/R(BNC) : 0.7 V [p-p] (75-ohm) •
AUDIO IN L/R (RCA PIN JACK x 2) : 0.5 V [rms] (high impedance)
(Fixed specifications)
PC: (HIGH-DENSITY Mini D-SUB 15
PIN) R,G,B: 0.7 V [p-p] (75-ohm)
Component Y: 1.0 V [p-p] (75-ohm)
PB/CB: 0.7 V [p-p] (75-ohm)
PR/CR: 0.7 V [p-p] (75-ohm)
HD,VD/1.0-5.0 V [p-p] (high impedance)
AUDIO IN (M3 JACK): 0.5 V [rms] (high impedance) •
SERIAL : EXTERNAL CONTROL TERMINAL (D-SUB 9 PIN), RS-232C
COMPATIBLE
Speakers (6 Ω)
16 W (8 W + 8
W) (10% THD)
Dimensions (W x H x D)
36.2˝ x 21.7˝
x 3.5˝ (920 mm x 550 mm x 89 mm)
(exclusive of protruding portion.)
Mass (weight)
57.3 lbs
(26.0 kg): without speakers 66.1lbs (30 kg): with speakers
