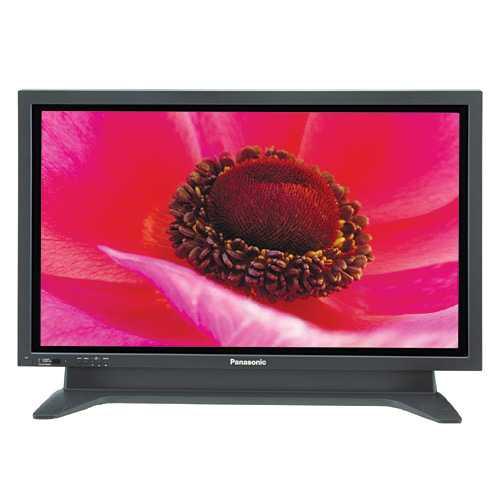

OVERVIEW - Panasonic th-37pwd7uy 37 inch Flat Panel
Plasma Monitor
Real MACH System: The Industry's Best Overall Picture
Quality
Panasonic developed two new advanced components and
integrated them in a synergetic way to form what we call the
Real MACH system. The MACH Crystallizer provides the best
driving characteristics for the display device. The MACH
(Multi-facet Asymmetrical Configuration Hyper-pixel) Panel
then delivers the image's full quality potential. Together,
these Panasonic plasma display technologies reproduce images
with the gradation and sharpness levels that are best suited
to the way the human eye perceives objects. The result is
picture quality and image depth that make for a high-impact
viewing experience.
FEATURES - Panasonic Th37pwd7uy 37 inch Plasma Tv
Up to 4,000:1
contrast ratio - New Real Black Drive System provides deeper, richer
blacks and enhances image clarity and realism
2,048 shades of gradation - New Super Real Gamma System provides
superior performance at brightness levels where the human eye sees
best
3.62 billion displayable colors
10% brighter images - New Multi-Facet Asymmetrical Configuration
Hyper-Pixel (MACH) Panel features bounded cell structure to improved
light-emitting efficiency and intensity
60,000-hour panel life - New MACH Panel boasts a long service life
of 60,000 hours
852 x 480 resolution
16:9 widescreen aspect ratio
Over 160 degree viewing angle
Adaptive Gain Control - raises contrast while suppressing noise by
detecting and boosting only the image edges, resulting in high
contrast and high signal/noise ratio
Motion Picture Noise Disturbance Reduction - detects motion patterns
that tend to generate noise and makes adjustments to maximize image
quality without diminishing the quality of stationary background
objects
3D Color Management System - reproduces vibrant colors and natural
skin tones
Active Interlace/Progressive Conversion System - reduces interlace
to progressive conversion noise that often occurs when reproducing
tiny movements, resulting in better vertical resolution.
4x Digital Zoom - divide the screen into zones and enlarge images up
to 400%
Built-In Video Wall Processor - set up 2x2, 3x3, or even 4x4
multi-screen plasma walls
Front Button Control
Fanless Quiet Operation
Includes 5 BNC male to RCA female adapters
Host of stands and mounting options available
Networked MPEG-2 player available
SPECIFICATIONS - Panasonic th37pwd7uy Plasma TV Display
DISPLAY
Screen
Size Diagonal
(Effective) W x H
37˝ (939
mm)
32.2˝ x 18.1˝ (818 x 461 mm)
Screen
Aspect
16 : 9
Wide
Number of
Pixels
408,960
(852 x 480) pixels
Pixel
Pitch (H x V)
0.96 x
0.96 mm
Displayable Colors
3,620
million colors
Contrast
Ratio
4000 : 1
Viewing
Angle Horizontal:
Vertical:
More than
160°
More than 160°
Color
System
NTSC/PAL/SECAM/PAL
60Hz/M-NTSC
Audio
Output
16 W (8 W
x 2)
On-Screen
Display
US
English/UK
English/Spanish/French/German/Italian/Chinese/Japanese
Screen
Coating
AR
(Anti-Reflection) Coating
GENERAL
Power
Supply
AC 120 V, 50/60Hz
Power
Consumption
(max.)
225 W
Stand-by
Save On:
0.5 W,
Off: 0.8 W
Dimensions (W x H x D)
36.2" x 21.7" x 3.5"
(920 x 550 x 89 mm)
Weight
54.0 lbs.
(24.5 kg)
Operating
Temperature
32°F —
104°F (0°C — 40°C)
Operating
Humidity
20% — 80%
(Non condensation)
EMI
Regulations
FCC Part
15 Class A Digital Equipment
Safety
Standards
UL6500/C-UL (CAN/CSA-E65-94)
TERMINALS
Composite
Video Input
BNC
coaxial x 1, 1Vp-p/75 ohms
Composite
Video Output
BNC
coaxial x 1 (loop-through)
S-Video
Input
S
terminal x 1, Y: 1Vp-p/75 ohms, C: 0.286Vp-p/75 ohms
