KEY POINTS - Panasonic th42pf20u 42 inch 1080p full-hd professional plasma display:
1920 X1080 Full HD
Slot 2.0 architecture
Fixed inputs
Built-in LAN Control I/F
Nanodrift Screen Saver
SUMMARY - Panasonic th42pf20u 42 inch 1080p Full-HD Professional Plasma Display:

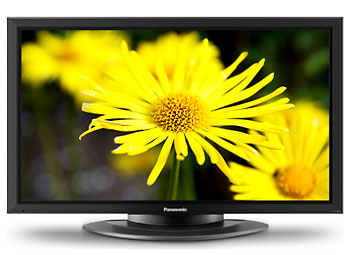

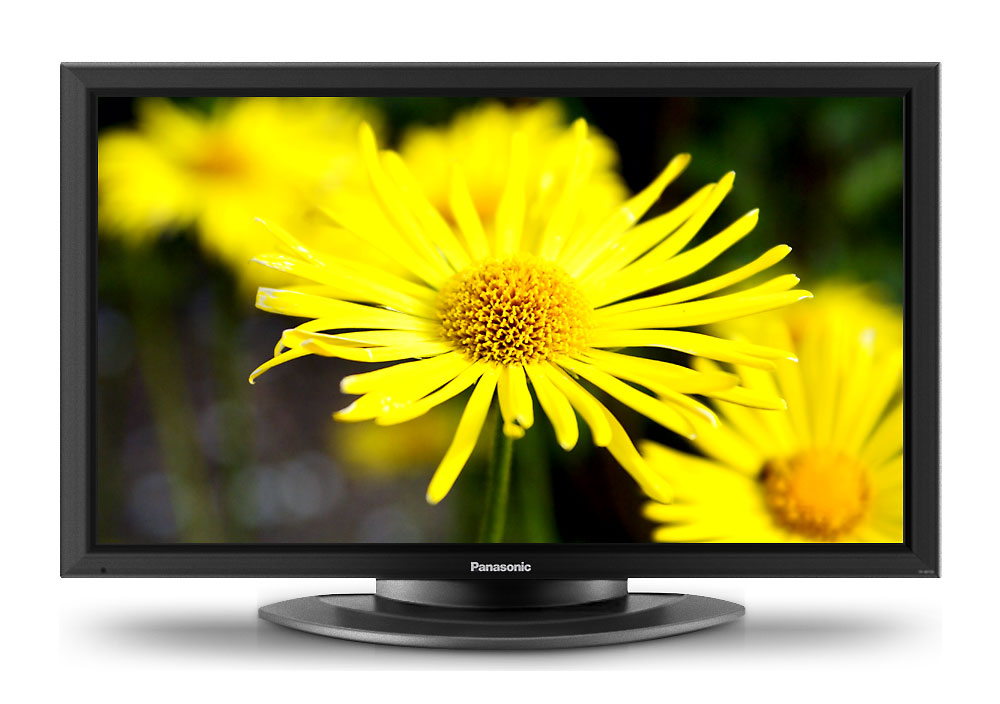

The Panasonic TH-42PF20U is a 42 inch Professional Series 1080p Full-HD plasma display. It features the industry’s highest contrast ratio of 5,000,000:1 and produces outstanding blacks and rich textures with Panasonic’s new NeoPDP technology.
This professional plasma tv also offers video inputs and Slot 2.0 function slot which expands all display applications. You can input both analog (component video, video, PC) and digital (DVI-D, HDMI) video signals to this display. These standard-equipped terminals handle most of the commonly used video signals. In addition, the PJLink is a compatible network function that lets you operate displays by remote control and monitor their status through a LAN connection.
DETAILED SPECS - PANASONIC TH-42PF20U 42 INCH 1080P FULL-HD PROFESSIONAL PLASMA DISPLAY:
SPECIFICATIONS
Manufacturer
Panasonic
Model
TH-42PF20U
Color
Black
Screen Size
42" (41.6" diagonal)
Aspect Ratio
16:9
Display Type
High Definition Plasma Display
Contrast Ratio
5,000,000 :1 (400:1)
Effective Display Area (W x H)
36.3" x 20.4"
Resolution (H x V)
1,920 x 1,080 pixels
Pixel Pitch (H x V)
0.480 x 0.480 mm
Gradation
6,144 steps (equivalent)
Scan Rate
60 Hz
PC Signal Compatibility
Yes
Video Signal Compatibility
Yes
PC In
MINI D-SUB 15PIN x1 (Female), Plug & Play (VESA DDC 2B)
Audio In
M3 JACK x 1
0.5 V [rms]
Serial Input/Output
D-sub 9-pin x 1, External control, RS-232C compatible
Interchangeable Terminals
1 slot (single or double slot size)
HDMI Input
HDMI TYPE A connector x 2
Component Input
BNC x 3
Audio Input (L/R)
RCA pin jack x 2
Power Requirements
120 V AC, 50 Hz/60Hz
Audio Out
16 Watts (8 Watts + 8 Watts) (10 % THD)
Dimensions (W x H x D)
40.2" x 24.1" x 3.5"
Weight (approx.)
53.0 lbs.
Temperature
32 Degrees F - 104 Degrees F
Humidity
20% - 80% (Non condensation)
Altitude
0 - 9,100 feet
EMI Regulations
FCC Part 15 Class-B, ICES-003, UL6500 Ver. 2
Safety Standards
UL6500 Ver. 2
Brightness
1,400 cd/m2
Included Accessories
Fixing Band, AC power cord, Operating instruction book, Remote control, Batteries
S-Video Input
No
32 Pin Connector
No
Composite Input
Yes
Warranty
2 Years Limited Parts & Labor, Onsite Warranty from Panasonic Plasma Concierge Service
