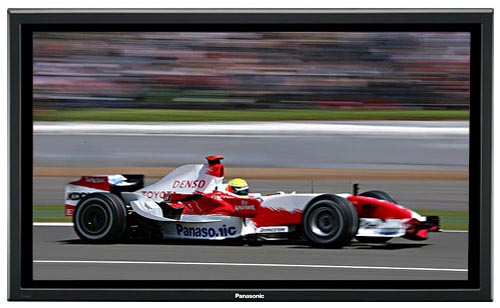

KEY POINTS - TH42PH10UKA Panasonic 42 inch HDTV Plasma Tv Screen:
Resolution 1,024 x 768
Brightness 1,200 cd/m2
Contrast Ratio (Bright room) Max. 10,000:1 (400:1)
Equipped with three interchangeable slots-provide flexible
and powerful system solution by adding/exchanging wide variety
of optional slot-in boards.
Includes 5 BNC male to RCA female adapters
SUMMARY - Panasonic th42ph10uka 42 inch HDTV Plasma Tv Screen:
A 42" Panasonic plasma display with the size and
the exceptional image quality that is equally at home in the
broadcast studio, a corporate boardroom, or your living room.
Panasonic combines the very best in image quality, customization and
size selection in its new Professional Series plasma family. With
industry-leading 16-bit processing, 3,072 shades of gradation and an
up to 10,000:1 contrast ratio, the TH-42PH10UK provides significant
image quality improvements to produce an unforgettable visual
experience.
With Panasonic's multi-function input slot
system, this large-screen panel offers seamless integration in
virtually any AV, PC or interactive environment, so it can be used
in the widest range of vertical or horizontal display applications.
This 42" panel is more light weight and energy efficient, and its
ultra-stylish design looks ultra sleek even when the panel's turned
off. The TH-42PH10UK comes standard with PC Input, Audio Input (for
PC), Serial Control (RS-232C) Input, BNC Component Video/RGB Input
and Audio Input, Dual HDMI Input, S-Video Input, and Audio
Input (for Video). There is an available slot for an optional
terminal board. Or, you can remove the standard boards and mount up
to three optional boards.
DETAILED SPECS - PANASONIC TH-42PH10UKA 42 INCH HDTV PLASMA TV SCREEN:
Display
Screen Size (Diagonal) 42-inch
Aspect ratio 16:9
Effective Display Area (W x H) 36.3" x 20.4"
Resolution (H x V) 1,024 x 768 pixels
Pixel Pitch (H x V) 0.900 x 0.675 mm
Brightness 1,200 cd/m2
Contrast Ratio (Bright room) Max. 10,000:1 (400:1)
Gradation 3,072 steps (equivalent)
Signal Compatibility
Scan Rate
Horizontal frequency 15-110 kHz
Vertical frequency 48 -120 Hz
PC Signal Compatibility VGA, WVGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, WSXGA+, UXGA, WUXGA (WXGA and over resolution : compressed)
Supported Video Standards NTSC, PAL, PAL 60, SECAM, Modified NTSC
Input / Output
PC IN Mini D-sub 15pin x 1 (Female) Analog RGB/Components *Plug & Play (VESA DDC 2B)
AUDIO IN M3 jack x 1
SERIAL D-sub 9-pin x 1 (Male) External control, RS-232C compatible
Interchangeable Terminals
Slot1 Vacent
Slot2 (TY-FB10HMD) HDMI x 2
Slot3 (TY-42TM6A) BNC x 3 Analog RGB/Components / RCA pin jack x 2
ELECTRICAL
Power Requirements 120 V AC, 50 Hz/60 Hz
Power Consumption 380 W
Power off condition 0.2 W
Stand-by condition Save OFF 0.7 W, Save ON 0.5 W
SOUND
Audio Output 16 W [8 W + 8 W] (10% THD)
MECHANICAL
Dimensions (W x H x D) 40.2" x 24.0" x 3.5" (1,020 x 610 x 89 mm) (exclusive protruding portion)
Weight approx. 57.3 lbs (26.0 Kg)
Cabinet Color Black
ENVIRONMENTAL
Operating environment
Temperature 32 °F - 104 °F (0 °C - 40 °C)
Humidity 20 % - 80 % (Non condensation)
Altitude 0 - 9,100 feet (0 - 2,800 m)
Storage environment
Temperature –4 °F - 140 °F (–20 °C - 60 °C)
Humidity 20 % - 90 % (Non condensation)
Altitude 0 - 10,800 feet (0 - 3,300 m)
EMI REGULATIONS FCC Part 15 Class-B, ICES-003 Class-B
