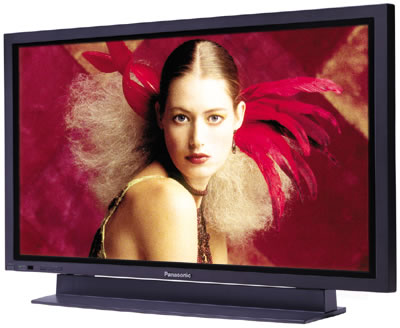

Panasonic TH-42PHD5UY 42 inch 16:9 Plasma TV Flat Panel Display

no longer available Replaced by TH42PHD6UY

Back to Panasonic Plasma Main

OVERVIEW - Panasonic th42phd5uy hdtv flat panel monitor

Picture-enhancing technologies including the Real Black Drive System, Advanced Plasma AI, and Real Gamma Correction.

HDTV Monitor

You can connect component video inputs to the unit and view digital TV broadcasts in either HDTV (1080i or 720p), EDTV (480p) or SDTV (480i) formats. The ultra-high resolution of the Panasonic plasma display fully reproduces high-definition pictures from 720p HDTV signals.

* In order to view DTV programming, the plasma display must be connected to a separate DTV digital receiver.

Slot-type Interface

Panasonic TH-42PHD5UY plasma display features a slot-type interface for easy expandability. The slot accepts an optional DVI terminal board for direct RGB digital signal connection.

3:2 Pulldown

The 3:2 Pulldown technology automatically detects a 3:2 film-based source, then uses still-image processing for each individual image to achieve clear, smooth-flowing images with a level of detail that closely approaches that of the original film.

* Works with 480i and NTSC format signals.

New Asymmetrical Cell Structure Panel

The asymmetrical arrangement of the red, blue and green cells results in a dramatically improved light-emitting balance of the three primary colors. This reproduces purer whites while maintaining a high level of brightness. The use of a new front protection glass filter and new phosphors also expands the range of color reproduction, resulting in more vivid blues and deeper reds.

FEATURES - Panasonic th-42phd5uy HDTV flat panel display

• High Definition native resolution - 1024 x 768 pixels
• Exceptional contrast ratio: greater than 3000:1
• Outstanding brightness level: 500 cd/m2 (panel)
• New 3-D Dimensional Progressive Scan and 3:2 pull down processing for smooth, life-like video
• Accepts NTSC, PAL, SECAM and PAL-60, accepts component, composite, S-Video
• Computer and video compatibility including: 480i/p, 576i, 1080i 50/60, 1080p 24, 720p 60, VGA, SVGA, XGA, SXGA, UXGA
• Expanded H & V scan rates: fH: 15.6 to 110kHz; fV: 48 to 120Hz
• Advanced progressive scan processing - optimized interlace to progressive performance
• Two built-in 8-watt audio power amplifiers; optional dedicated stereo speakers

SPECIFICATIONS - PANASONIC TH42PHD5UY HDTV FLAT PANEL DISPLAY

Screen Size 42-inch diagonal

Resolution XGA (1024 x 768)

Aspect Ratio 16:9

Contrast Ratio 3000:1

Colors 16.77 million colors

Weight 66.1 lbs / 30 kg

Dimensions 40.2in W 24in H 3.5in D

Power AC 120 V, 50/60Hz

Inputs Composite video, S-Video, audio, RGB, serial

Resolution Capabilities (VGA, SVGA, XGA and SXGA, UXGA (compressed)

Video Standards NTSC/PAL/SECAM/PAL 60Hz/M-NTSC

Control Panel Onboard and remote

Warranty 1 year parts and labor

*This is an FCC Class B Product for Residential or Commercial Use

ADAPTIVE BRIGHTNESS INTENSIFIER
Panasonic plasma flat panels control brightness by regulating the discharge cycles (time). Many plasma displays suffer from insufficient peak brightness in dark scenes. Our unique Panasonic Plasma ABI automatically increases the number of discharge cycles to achieve a dramatic improvement in peak brightness for your home theater or business applications. Panasonic plasma tv displays expand the dynamic range of all images—from black to white peak—delivering outstanding pictures with naturally high levels of contrast.

ASYMMETRICAL CELL STRUCTURE PANEL
By arranging the red, blue and green cells that control color reproduction in an asymmetrical fashion, Panasonic Plasma has dramatically improved the light-emitting balance of these primary colors. And to enhance brightness and contrast, we've improved the cell wall structure and use new fluorescent materials with superior light-emission characteristics. Together, these technologies achieve an entirely new level of plasma tv display performance with deep blacks, brilliant whites and dramatic color reproduction.

16:9 ASPECT RATIO
These widescreen Panasonic Plasma TVs have a width-to-height ratio similar to movie theater screens, providing you with cinema-style entertainment right in your own home theater system. Moreover, they enable full-screen viewing of high-definition broadcasts and DVD videos, which are produced in 16:9 format.

3000:1 CONTRAST RATIO
With a high contrast ratio, you get a dramatic contrast between black and white, which is traditionally difficult to achieve on plasma TV's. Such a high contrast ratio is possible due to the unique design and engineering qualities of Panasonic plasma tv home theater and commercial display products.
