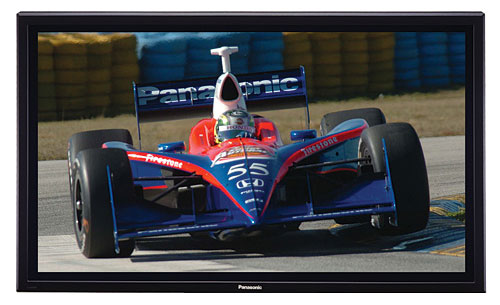

OVERVIEW - Panasonic TH42PWD8UK 42 inch EDTV Widescreen Plasma
TV:
The new 8 series plasma tv displays from Panasonic feature a 4000:1
contrast ratio and also incorporate some new features such as advanced
Picture in Picture / sound selection, anti-invisible single and
multi-screen, vertical use and a new sound menu.
The TH-42PWD8UK comes standard with PC Input, Audio Input (for PC),
Serial Control (RS-232C) Input, BNC Component Video/RGB Input and
Audio Input, BNC Composite Video Input, BNC Composite Video Output,
S-Video Input, and Audio Input (for Video). There is an available slot
for an optional terminal board. Or, you can remove the standard boards
and mount up to three optional boards.
FEATURES - Panasonic
Th42pwd8uk Widescreen Plasma Tv Display:
Native Resolution: 852 x 480p
Contrast Ratio: up to 4000:1
Aspect Ratio: 16:9 Widescreen
Brightness: 1200 cd/m2
Up to 2,048 shades of gradation (4,096 shades via HDMI or DVI
connection)
VIDEO IN/OUT
(BNC) 1.0 Vp-p (75-ohm or high impedance)
S VIDEO IN (MINI DIN 4PIN) Y: 1 Vp-p (75-ohm), C: 0.286 Vp-p
(75-ohm)
AUDIO IN (RCA PIN JACK × 2) 0.5 Vrms (high impedance)
