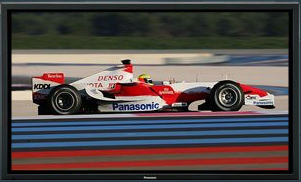

KEY POINTS - TH50PF10UK Panasonic 50 inch True HD 1080p Plasma Tv Screen:
Native 1920 x 1080 Resolution
Brightness 1000 cd/m2
Contrast Ratio 10,000:1
2 HDMI Inputs
SUMMARY - Panasonic th50pf10uk 50 inch True HD 1080p Plasma Tv Screen:
At 50", the TH-50PF10UK is a 1080p HD plasma that delivers the size and images
quality you've been searching for in a large-screen display. It offers sheer jaw-
dropping, full 1080p HD resolution images quality to reproduce beautiful, natural-
looking images. For versatility, the TH-50PF10UK offers 3 rear panel muitl-fuction
slots and supports a variety of formats, including VGA, SVGA, XGA (uncompressed),
SXGA, UXGA (uncompressed) and PC signal compatibility.
DETAILED SPECS - PANASONIC TH-50PF10UK 50 INCH TRUE HD 1080P PLASMA TV SCREEN:
Display
Screen Size (Diagonal) 49.9-inch
Aspect ratio 16:9
Effective Display Area (W x H) 43.5" x 24.5" (1,106 x 622 mm)
Resolution (H x V) 1,920 x 1,080 pixels (1pixel=3cells for R, G and B)
Pixel Pitch (H x V) 0.576 x 0.576 mm
Brightness 1,000 cd/m2
Contrast Ratio 10,000:1
Gradation 4,096 steps (equivalent)
Signal Compatibility
Scan Rate Horizontal frequency 15 - 110 kHz, Vertical frequency 48 -120 Hz
PC Signal Compatibility VGA, WVGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, WSXGA+ UXGA, WUXGA (UXGA and over resolution : compressed)
Supported Video Standards NTSC, PAL, PAL 60, SECAM, Modified NTSC
ELECTRICAL
Power Requirements AC 120 V , 50 Hz/60 Hz
Power Consumption 650 W
Power off condition 0.1 W
Stand-by condition Save Off 0.6 W, Save On 0.4 W
MECHANICAL
Dimensions (W x H x D) 47.6" x 28.5" x 3.7" (1,210 x 724 x 95 mm) (exclusive protruding portion)
Weight approx. 90.4 lbs. (41.0 kg)
Cabinet Colour Black
SOUND
Audio Output 16 W [8 W + 8 W] (10 % THD)
RADIATION REGULATIONS
FCC Part 15 Class-B, ICES-003
SAFETY STANDARDS
UL6500 Ver.2
INCLUDED ACCESSORIES
Remote controller
Batteries
Fixing Band x 2
AC power cord x 1
Operating instruction book
Input / Output
PC IN Mini D-sub 15pin x 1 (Female) Analog RGB/Components *Plug & Play (VESA DDC 2B)
AUDIO IN M3 jack x 1
SERIAL D-sub 9-pin x 1(Male) External control, RS-232C compatible
Interchangeable Terminals
(Slot1) Vacant
(Slot2:TY-FB10HMD) HDMI IN HDMI x 2
(Slot3:TY-42TM6A)
COMPONENT IN BNC x 3 Analog RGB / Component
AUDIO IN (L/R) RCA pin jack x 2
ENVIRONMENTALOperating environment
Temperature 32 °F - 104 °F (0 °C - 40 °C)
Humidity 20 % - 80 % (Non condensation)
Altitude 0 - 9,100 feet (0 - 2,800 m)
Storage environment
Temperature –4 °F - 140 °F (–20 °C - 60 °C)
Humidity 20 % - 90 % (Non condensation)
Altitude 0 - 10,800 feet (0 - 3,300 m)
IR REMOTE CONTROL
Power Requirements DC 3 V (2 x AA Size batteries)
Operation distance approx. 23 ft (7 m) in front of plasma display
