KEY POINTS - Panasonic th50pf20u 50 inch 1080p full-hd professional plasma display:
1920 X1080 Full HD
Slot 2.0 architecture
Fixed inputs
Built-in LAN Control I/F
Nanodrift Screen Saver
SUMMARY - Panasonic th50pf20u 50 inch 1080p Full-HD Professional Plasma Display:

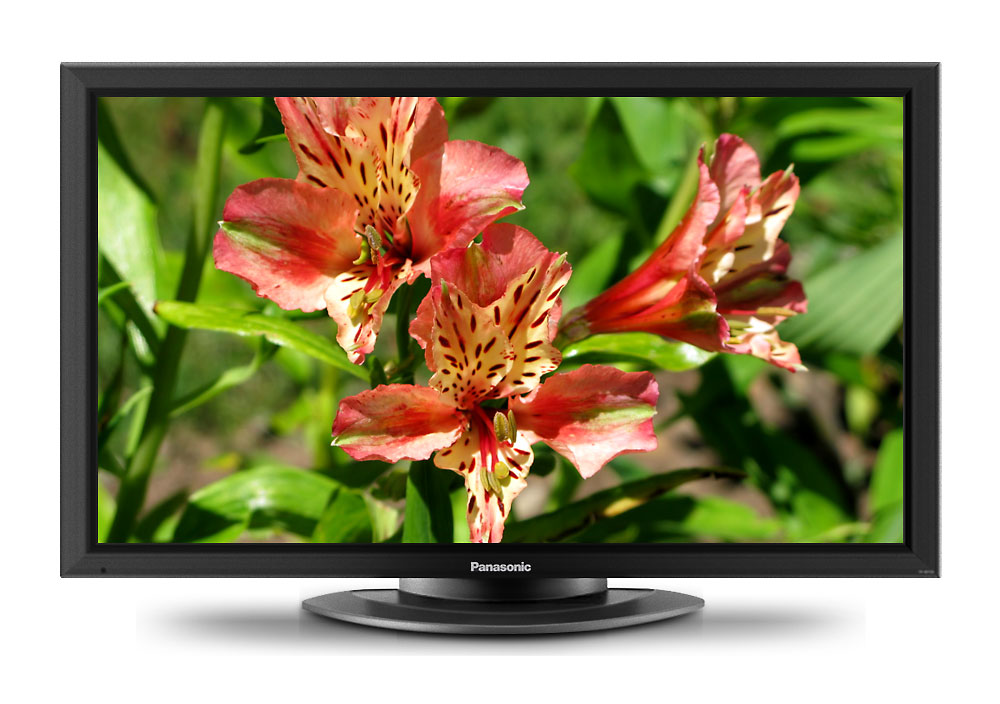

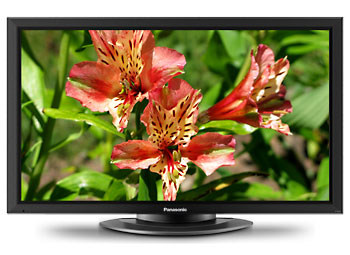

The Panasonic TH-50PF20U is a 50 inch Professional Series 1080p Full-HD plasma display. It features the industry’s highest contrast ratio of 5,000,000:1 and produces rich textures and deep blacks with Panasonic’s NeoPDP technology.
The th-50pf20u professional plasma tv also offers video inputs and Slot 2.0 function slot which expands all display applications. You can input both analog (component video, video, PC) and digital (DVI-D, HDMI) video signals to this display. These standard-equipped terminals handle most of the commonly used video signals. In addition, the PJLink is a compatible network function that lets you operate displays by remote control and monitor their status through a LAN connection.
DETAILED SPECS - PANASONIC TH-50PF20U 50 INCH 1080P FULL-HD PROFESSIONAL PLASMA DISPLAY:
SPECIFICATIONS
Manufacturer
Panasonic
Model
TH-50PF20U
Color
Black
Screen Size
50" (49.9" diagonal)
Aspect Ratio
16:9
Display Type
High Definition Plasma Display
Contrast Ratio
5,000,000 :1 (400:1)
Effective Display Area (W x H)
43.5" x 24.5"
Resolution (H x V)
1,920 x 1,080 pixels
Pixel Pitch (H x V)
0.576 x 0.576 mm
Gradation
6,144 steps (equivalent)
Scan Rate
60 Hz
PC Signal Compatibility
Yes
Video Signal Compatibility
Yes
PC In
RJ45 10BASE-T / 100BASE-TX, compatible with PJLINKTM
Audio In
M3 jack x 1
Serial Input/Output
D-sub 9-pin x 1, External control, RS-232C compatible
Interchangeable Terminals
1 slot (single or double slot size)
HDMI Input
HDMI TYPE A connector x 2
Component Input
BNC x 3
Audio Input (L/R)
RCA pin jack x 2
Power Requirements
120 V AC, 50 Hz/60Hz
Audio Out
16 Watts (8 Watts + 8 Watts) (10 % THD)
Temperature
32 Degrees F - 104 Degrees F
Humidity
20% - 80% (Non condensation)
Altitude
0 - 9,100 feet
EMI Regulations
FCC Part 15 Class-B, ICES-003, UL6500 Ver. 2
Safety Standards
UL6500 Ver. 2
Brightness
1,400 cd/m2
Included Accessories
Fixing Band, AC power cord, Operating instruction book, Remote control, Batteries
S-Video Input
No
32 Pin Connector
No
Composite Input
Yes
Warranty
2 Years Limited Parts & Labor, Onsite Warranty from Panasonic Plasma Concierge Service
