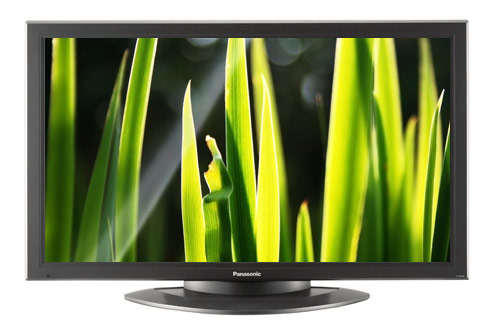

KEY POINTS - Panasonic th50ph20u 50 inch professional series high definition plasma display:
> Screen Size: 50-inch diag.
> Resolution: 720p native
> Contrast Ratio: 2,000,000:1
> Dimensions: 47.7in W 28.5in H 3.5in D
> Weight: 72.8 lbs.
> Warranty: 2 year Parts and Labor
> Key Features: New Slot 2.0 Expands Applications Tough Display
> Deep Blacks, Rich Gradation and a Wide Color Gamut
> Comes equipped with TY-42TM6A Component Plug-in Board and TY-FB10HMD Dual HDMI Plug-in Board
SUMMARY - Panasonic th50ph20u 50 inch Professional Series High Definition Plasma Display:
The Panasonic TH-50PH20U Plasma TV is a 50 inch high definition professional plasma display that delivers the elegance and superb image quality for just about any installation — whether it's in a boardroom, classroom, hotel, restaurant, or digital signage environment — while providing full integration in an automated environment.
This new 20-Series HD plasma display — the TH50PH20U, maintains the Panasonic plasma essentials shared by our 12-Series displays — superior image quality, flexible plug-in architecture, and world-class support — while adding some additional enhancements. Original image-process technologies have enabled a high contrast ratio of 2,000,000:1. This produces robust blacks that give images even greater realism and depth.
Also new to this 720p model is improved video processing, now on par with our 1080p panels, providing crisp, clear motion images with the equivalent of 6,144 shades of gradation.
When it comes to durability, our panels can be counted on and the Panasonic TH-50PH20U Plasma Display is no exception. It has an incredibly long expected service life of 100,000 hours, and is backed by a comprehensive 2-year on-site parts and labor limited warranty. As always, our Plasma Concierge Service provides a toll-free hotline and 24-hour priority scheduling of on-site service if the display is in need of service or repair.
The Panasonic TH-50PH12U is equipped with the TY-42TM6A Component Plug-in Board and TY-FB10HMD Dual HDMI Plug-in Board.
DETAILED SPECS - PANASONIC TH-50PH20U 50 INCH PROFESSIONAL SERIES HIGH DEFINITION PLASMA DISPLAY:
Color
Black
Screen Size
50" Class (49.9" Diagonal)
Aspect Ratio
16:9
Display Type
High Definition Plasma Display
Contrast Ratio
2,000,000 : 1
Effective Display Area (W x H)
43.5" x 24.5"
Resolution (H x V)
1,024 x 768 pixels
Pixel Pitch (H x V)
.1.080 x 0.810 mm
Gradation
6,144 steps (equivalent)
Scan Rate
60 Hz
PC Signal Compatibility
Yes
Video Signal Compatibility
Yes
PC In
MINI D-SUB 15PIN x1 (Female), Plug & Play (VESA DDC 2B)
Audio In
M3 jack x 1
Serial Input/Output
D-sub 9-pin x 1, External control, RS-232C compatible
Interchangeable Terminals
1 slot (single or double slot size)
HDMI Input
HDMI TYPE A connector x 2
Component Input
BNC x 3
Audio Input (L/R)
RCA pin jack x 2
Power Requirements
120 V AC, 50 Hz/60Hz
Audio Out
16 W (8 W + 8 W) (10 % THD)
Dimensions (W x H x D)
47.7" x 28.5" × 3.5"
Weight (approx.)
72.8
Temperature
32 Degrees F - 104 Degrees F
Humidity
20% - 80% (Non condensation)
Altitude
0 - 9,100 feet
EMI Regulations
FCC Part 15 Class-B, ICES-003, UL6500 Ver. 2
Safety Standards
UL6500 Ver. 2
Brightness
1,400 cd/m2
Included Accessories
Fixing Band, AC Power Chord, Operating Instruction Book, Remote Control Transmitter, Batteries
S-Video Input
BNC x 1
32 Pin Connector
D-SUB 9PIN x 1 (EXTERNAL CONTROL TERMINAL), RS-232C COMPATIBLE
