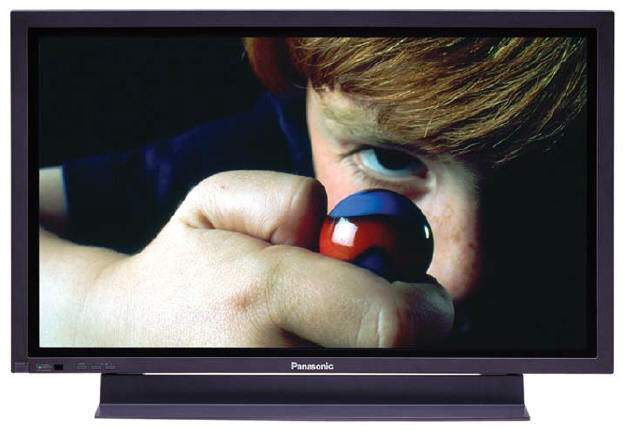

TH-50PHD3U
Panasonic 50inch Plasma TV Flat Panel Monitor
The
Panasonic TH50PHD3U 50 inch widescreen plasma display panel has
a 50-inch diagonal screen, is only 3.9" deep and delivers sharp
images and natural, true-to-life colors for an extremely impressive
viewing experience.
The TH-50PHD3U 50 inch Panasonic plasma is leading a revolution
in visual image technology. Panasonic newly developed Real
Black Drive System and Advanced Plasma AI technologies combine
in the Panasonic TH50PHD3U flat panel hdtv monitor to achieve the industry's brightest
picture and highest contrast of any 50" plasma display.
With razor-sharp pictures and vivid, natural color on a wide
screen, the Panasonic TH-50PHD3U flat panel display brings tremendous impact
to business, communications, entertainment, and public display
applications. And, of course, the Panasonic Plasma TH-50PHD3U
flat panel monitor comes with Panasonic's renowned quality and reliability.
Panasonic Plasma TH-50PHD3U 50 inch Plasma shown with optional stand
The
TH-50PHD3U Panasonic Plasma Display features an ultra-high 1366 x
768 resolution to deliver stunning high definition images. The 16:9
wide aspect ratio HD flat panel display offers a set brightness of 300 cd/m2
and the industry's highest contrast ratio of 3000:1.
Offering
unprecedented clarity and fine detail, the elegantly-crafted TH50PHD3U
HDTV plasma display provides expanded computer signal compatibility to display VGA, SVGA, XGA, SXGA and UXGA resolutions and an expanded range of horizontal
and vertical scanning rates (fH: 15.6 -110kHz; fV: 48-120Hz). Equipped
with component video (YPbPr) inputs for full HDTV compatibility,
it enables viewing of DTV/HDTV signals in either 1080i, 720p, 480p
or 480i. A show-stopping display for a wide range of applications,
from retail to commercial, from video production to exhibitions,
this ultra-thin, lightweight 50" display can produce a palette
of 16.77 million colors.
The
flat-screen display features the Real Black Drive System that offers
a dramatic improvement in black reproduction, contributing to its
exceptional 3000:1 contrast ratio. Conventional plasma displays
tend to illuminate blacks, which lowers contrast. In the TH-50PHD3U,
the pre-discharge emission intensity is greatly decreased, dramatically
reducing black levels and providing deeper, richer blacks.
Panasonic's
unique Adaptive Brightness Intensifier (AI) increases the discharge
cycle for dark scenes and doubles the brightness control precision
over prior systems. The TH50PWD3U's unique Asymmetrical Cell Structure
achieves both high brightness and crisp whites (a combination not
possible with prior systems), resulting in a substantial improved
light-emitting balance of the three primary colors (red, green,
blue).
The
flat panel monitor has many advanced Digital Signal Processing functions, including
a precise False-Edge Predictor circuit to produce smooth, highly-detailed
natural-looking moving images, and a 3-Dimensional Progressive Scan
function that elegantly converts interlace signals (1080i and 480i)
into progressive signals for optimal viewing. The TH50PHD3U has
a viewing angle of 160 degrees.
Other
valuable features include low power consumption, handy carrying
handles, RS-232C interface for remote PC control, and a host of
user-friendly set-up functions (on-screen display, initial input
set, initial volume set, maximum volume set, fixed input selection,
restricted button operation and studio white balance set).
Specifications of the 50 inch Panasonic Plasma th50phd3u HDTV Flat
Panel Monitor:
Display
Screen
Size
50½
(127 cm) diagonal
Screen
Aspect
16
: 9 Wide
Number
of Pixels
1,049,088
(1366 × 768) pixels
Pixel
Pitch
0.81
mm
Displayable
Colors
16.77
million colors
Contrast
3000:1
Brightness
300
cd/m 2 (set), 500 cd/m 2 (panel)
Color
System
PAL
SECAM
NTSCC
PAL
60 Hz
Audio
Output
16
W (8 W × 2)
On-Screen
Display
US
English/UK English/Spanish/French/German/Italian/Chinese
