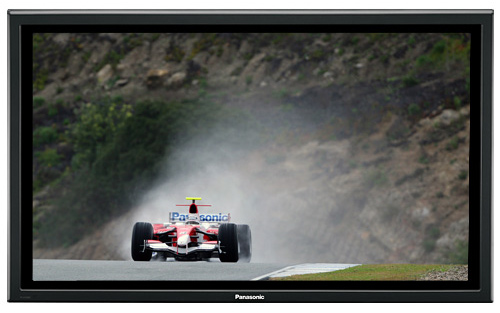

KEY POINTS - TH65PF10UK Panasonic 65 inch True HD 1080p Plasma Tv Screen:
Screen Size 65 inch Diagonal
Resolution 1920x1080p
Aspect Ratio 16:9
Contrast Ratio 10,000:1
Inputs accepts full 1080p signal via
HDMI
Includes BNC male to RCA female adapters
SUMMARY - Panasonic th65pf10uk 65 inch True HD 1080p Plasma Tv Screen:
As versatile as it is reliable, the 65" TH-65PF10UK fits comfortably in home theater,
retail, production, digital signage, and education environments, to name a few. It
delivers vivid, full 1080p high definition images with twice as much image information -
2 million pixels, or 1920 vertical x 1080 horizontal - as conventional HD plasma
models. With a widescreen 16:9 aspect ratio and a 10,000:1 contrast ratio,
the TH-65PF10UK is an awe-inspiring display that won't let you down.
DETAILED SPECS - PANASONIC TH-65PF10UK 65 INCH TRUE HD 1080P PLASMA TV SCREEN:
Screen Size (Diagonal) 64.8 - inch
Aspect Ratio 16:9
Effective Display Area (WxH) 56.5" x 31.8"
Resolution 1920 x 1080 pixels
Pixel Pitch (HxV) 0.747 x 0.747 mm
Brightness 1,000 cd/m2
Contrast Ratio 10,000:1
Gradation 4,096 steps (equivalent)
Scan Rate Horizontal frequency 15-110 kHz Vertical frequency 48 - 120Hz
PC Signal Compatibility VGA, WVGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, WSXGA+, UXGA, WUXGA (UXGA and over resolution : compressed)
Supported Video Standards NTSC, PAL, PAL 60, SECAM, Modified NTSC
Input / Output
Fixed Terminals
PC IN Mini D-sub 15pin x1 Analog RGB/Component - Plug & Play (VESA DDC 2B)
AUDIO IN M3 jack x1
SERIAL D-sub 9-pin x 1 External Control, RS-232C compatible
Interchangeable Terminals
(Slot 1) Vacant
(Slot2: TY-FB10HMD) HDMI IN HDMI x 2
(Slot3: TY-42TM6A) COMPONENT IN BNC x3 AUDIO IN RCA pin jack x2
