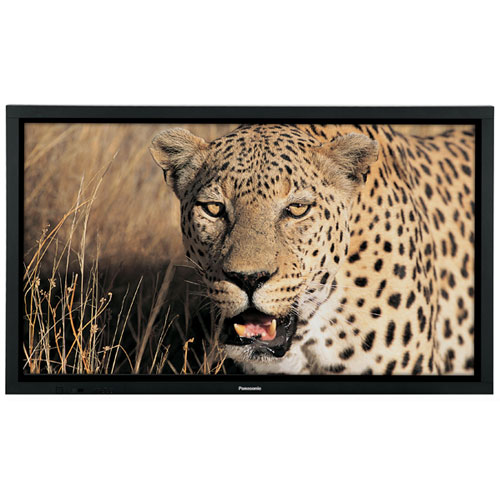

PANASONIC TH-65PF9UK 65 inch True HD 1080p Plasma TV Screen
Accessories
Click for Larger Image
FEATURES - Panasonic TH65PF9UK 65 inch True HD 1080p Plasma TV Screen:
Screen Size 65 inch Diagonal
Resolution 1920x1080p
Aspect Ratio 16:9
Contrast Ratio Max. 5000:1
Inputs accepts full 1080p signal via DVI and Component Video inputs (to display
HDMI devices in 1080p we recommend using a DVI to HDMI adapter cable)
Includes BNC male to RCA female adapters
OVERVIEW - Panasonic
th65pf9uk 65 inch True HD 1080p Plasma TV Screen:
With pristine 1080p, full HD resolution, the
Panasonic TH-65PF9UK 65" Professional Series plasma display delivers
breathtaking images with true-to-life color and incredible detail. The
TH-65PF9UK displays 2.07 million pixels, twice as many as standard HD
models, and features a high contrast ratio of up to 5,000:1 and 16-bit
processing for an outstanding 4,096 steps of color gradation. With the
new Super Cinema mode, the 1080p plasma display reproduces images with
a true, film-like ambiance.
Ideal for applications that require extremely clear, detailed images
on a larger display area, the TH-65PF9UK is highly suited for use in
production facilities, control rooms, observation, museums, board
rooms and much more. The TH-65PF9UK comes standard with hi-res capable
DVI-D Input, PC Input (15pinHD), Audio Input (for PC), Serial Control
(RS-232C) Input, BNC Component Video/RGB Input + Audio Input. There is
an available slot for another optional terminal board, or you can
remove the standard boards and mount up to three optional boards.
PC IN Mini D-sub 15pin x 1 Analog
RGB / Component
- Plug & Play (VESA DDC 1/2B)
AUDIO IN M3 jack x 1
SERIAL D-sub 9-pin x 1 External control, RS-232C compatible
Interchangeable
Terminals
(Slot1) Vacant
(Slot2:TY-FB9FDD) DVI-D IN DVI 24 pin x 1
AUDIO IN M3 jack x 1
(Slot3:TY-42TM6A) COMPONENT IN BNC x 3 Analog RGB / Component
AUDIO IN (L/R) RCA pin jack x 2
Power Requirements
AC 120 V, 50Hz/60Hz
Power Consumption
790 W
Power off condition
0.1 W
Stand-by condition
Save Off 1.0
W, Save On 0.8 W
Audio Output
20 W [10 W + 10 W]
Dimensions
(W x H x D)
61.2" x 36.4" x
3.9" (1,554 x 925 x 99 mm) (exclusive protruding portion)
Weight approx
163.1lbs (74 kg)
Cabinet color
Black
Temperature
32°F - 104°F
Humidity
20 % - 80 % (Non
condensation)
Altitude
0 - 9,100 feet ( 0 - 2,800m )
FCC
Part 15 Class-B, ICES-003
UL6500 Ver.2
Power Requirements
DC 3V (UM3 battery
x 2)
Operation distance
approx. 23 feet (7m) in front of
plasma display
Weight
approx. 4.6 oz
(130g) including batteries
Remote controller -
Batteries - Fixing Band x 2- AC Power cord - Operating
instruction book
