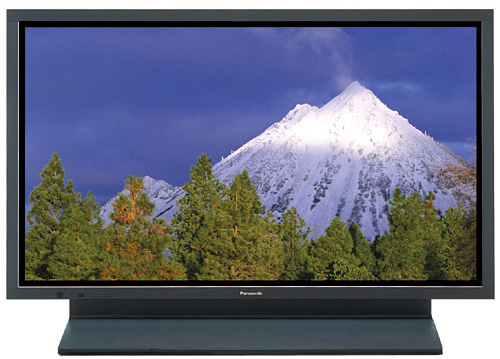

Click For Larger Image
(shown with optional table stand)
Plasma
Add-ons
Price
Wall Mount (PSM-H2458)
Speakers (TY-SP65P7W-K)
Table Stand (TY-ST65-K)
Panasonic TY-42TM6Z RCA Component Video Card
Panasonic TY-42TM6D DVI with HDCP
Video Card
Panasonic
TY-FB7HM HDMI Video Card
Panasonic TH-65PHD7UY 65-inch HDTV Ready Flat
Panel Plasma TV
OVERVIEW -Panasonic th65phd7uy 65 inch HDTV Plasma
TV Display
Real MACH System: The Industry's Best Overall Picture
Quality
Panasonic developed two new advanced components and
integrated them in a synergetic way to form what we call the
Real MACH system. The MACH Crystallizer provides the best
driving characteristics for the display device. The MACH
(Multi-facet Asymmetrical Configuration Hyper-pixel) Panel
then delivers the image's full quality potential. Together,
these Panasonic plasma display technologies reproduce images
with the gradation and sharpness levels that are best suited
to the way the human eye perceives objects. The result is
picture quality and image depth that make for a high-impact
viewing experience.
FEATURES - Panasonic th65phd7uy hdtv plasma
monitor
Up to 3,000:1 contrast ratio - New Real Black Drive System
provides deeper, richer blacks and enhances image clarity
and realism
2,048 shades of gradation - New Super Real Gamma System
provides superior performance at brightness levels where the
human eye sees best
Full time 3.62 billion (maximum 8.52 billion) displayable
colors
10% brighter images - New Multi-Facet Asymmetrical
Configuration Hyper-Pixel (MACH) Panel features bounded cell
structure to improved light-emitting efficiency and
intensity
60,000-hour panel life - New MACH Panel boasts a long
service life of 60,000 hours
1366 x 768 resolution
16:9 widescreen aspect ratio
Over 160 degree viewing angle
Flexible A/V and IT system configurations - composite,
component, RCA, BNC, PC, RGB, SDI, HD-SDI, HDMI, DVI-D w/HDCP,
Twisted-Pair Cable, and wireless presentation terminal
boards available
Adaptive Gain Control - raises contrast while suppressing
noise by detecting and boosting only the image edges,
resulting in high contrast and high signal/noise ratio
3D Color Management System - reproduces vibrant colors and
natural skin tones
Active Interlace/Progressive Conversion System - reduces
interlace to progressive conversion noise that often occurs
when reproducing tiny movements, resulting in better
vertical resolution.
Dual Picture Mode - simultaneously display images from two
different sources in Picture And Picture, Picture Out
Picture, and Picture In Picture modes
4x Digital Zoom - divide the screen into zones and enlarge
images up to 400%
Built-In Video Wall Processor - set up 2x2, 3x3, or even 4x4
multi-screen plasma walls
Newly developed phosphor boosts resistance to static-image
burning to the same level as CRT displays
Fanless Quiet Operation
Includes 5 BNC male to RCA female adapters
Host of stands and mounting options available
Networked MPEG-2 player available
SPECIFICATIONS - Panasonic TH-65phd7uy Plasma
Tv Screen
Screen Size Diagonal
(Effective) W x H
65˝ (1,645 mm) 56.5˝ x 31.7˝
(1,434 x 806 mm)
Screen Aspect
16 : 9 Wide
Number of Pixels
1,049,088 (1366 x 768)
Pixel Pitch (H x V)
1.05 x 1.05 mm
Displayable Colors
3,620 million colors
Contrast Ratio
3000 : 1
Viewing Angle
More than 160° Horizontal /
More than 160° Vertical
Color System
NTSC/PAL/SECAM/PAL 60Hz/M-NTSC
Audio Output
20 W (10 W x 2)
On-Screen Display
US English/UK
English/Spanish/French/German/Italian/Chinese/Japanese
Screen Coating
AR (Anti-Reflection) Coating
Power Supply
AC 120 V, 50/60Hz
Power Consumption
Stand-by Save On:
695 W 0.8 W, Off:
1.0 W
Dimensions (W x H x
D)
61.2˝ x 36.4˝ x 3.9˝
Weight
179.7 lbs. (81.5 kg)
Operating Temperature
32°F — 104°F (0°C —
40°C)
Operating Humidity
20% — 80% (Non
condensation)
EMI Regulations
FCC Part 15 Class A
Digital Equipment
Safety Standards
UL6500/C-UL (CAN/CSA-E65-94)
Composite Video Input
BNC coaxial x 1, 1.0
Vp-p (75 ohms or high impedance)
Composite Video Output
BNC coaxial x 1, 1.0
Vp-p (75 ohms or high impedance)
S-Video Input
S terminal x 1, Y: 1
Vp-p (75 ohms), C: 0.286 Vp-p (75 ohms)
