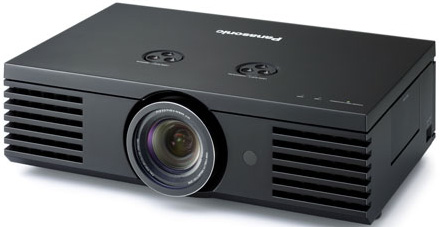

Panasonic PTAE1000U 1080p Lcd Projector panasonic pt-ae1000u

SUMMARY - Panasonic ptae1000u 1100 ANSI Lumens 1080p HD Home Theater Video Projector:

Panasonic is bringing image quality to even greater heights by offering full HDTV. The new PT-AE1000U is a full-HD compatible home theater projector that achieves a remarkable 11,000:1 contrast ratio -- best in its class. Developed with the quality and precision that are needed to allow use by Hollywood professionals in the moviemaking process, the PT-AE1000U features three LCD panels that display beautiful 1,080p high-definition pictures in remarkable detail. With the new PT-AE1000U, Panasonic gives you the ultimate home theater experience.

DETAILED SPECS - PANASONIC PT-AE1000U 1080P PROJECTOR:

Power supply

100–240 V AC, 50/60 Hz

Power consumption

240 W (Approx. 0.08 W in standby mode with fan stopped)

Amps

2.8 A–1.2 A

LCD panel

Panel size

0.74˝ (17.78 mm) diagonally

Aspect ratio

16:9 aspect ratio

Display method

Transparent LCD panel (x 3, R/G/B)

Drive method

Active matrix

Pixels

2,073,600 (1,920 x 1,080) x 3, total of 6,220,800 pixels

Lens

Powered zoom (2x)/powered focus, F 1.9 - 3.2, f 22.4 mm–44.8 mm

Lamp

165 W UHM lamp

Brightness

1,100 lumens

Contrast

11,000:1 (full on/full off)

Centre-to-corner uniformity ratio

85%

Colors Full color

(1,073,741,824 colors)

Projection size

1,016–5,080 mm (40–200 inches) diagonally, 16:9 aspect ratio

Throw distance

1.2 m–12.0 m (3´11˝–39´4˝)

Screen aspect ratio

16:9 (4:3 compatible)

Scanning frequency for RGB

Horizontal: 30–70 kHz,

Vertical: 50–87 Hz

Dot clock: 150 MHz or less

YPBPR signal compatibility

525i (480i), 525p (480p), 625i (576i), 625p (576p), 750 (720)/50p, 750 (720)/60p, 1,125 (1,080)/24p, 1,125 (1,080)/50i, 1,125 (1,080)/50p, 1,125 (1,080)/60i, 1,125 (1,080)/60p

Color system

PAL, PAL-M, PAL-N, PAL 60, SECAM, NTSC, NTSC 4.43

Optical axis shift

4 Horizontal ±40% and vertical ±100%

Keystone correction range

Vertical: approx. ±30°

Installation

Ceiling/desk, front/rear

OSD languages

(menu selection) English, French, German, Spanish, Italian, Chinese, Korean, Russian, Swedish, Danish, Norwegian, Polish, Czech, Hungarian, Portuguese, Thai

Terminals

HDMI IN 19-pin HDMI connector x 2

PC (RGB) IN D-sub HD 15-pin (female) x 1 R, G, B: 0.7 Vp-p (1.0 Vp-p for Sync on G), 75 ohms HD/SYNC, VD: TTL, high impedance (positive/negative polarity)

COMPONENT IN RCA pin (Y, PB/CB, PR/CR) x 2, Y: 1.0 p-p, 75 ohms

S-VIDEO IN PB/PR (CB/CR): 0.7 Vp-p, 75 ohms Mini DIN 4-pin x 1, Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms

VIDEO IN RCA pin x 1, 1.0 Vp-p, 75 ohms

SERIAL Mini DIN 8-pin x 1 (RS-232C based)

Power cord length

3 m (9´10˝)

Cabinet material

PC, ABS

Dimensions

5 460 x 130 x 300 mm

(W x H x D)

(18-1/8˝ x 5-1/8˝ x 11-25/32˝)

Weight

7.2 kg (15.9 lbs.)

Operating environment

Temperature: 0°–40°C (32°–104°F) Humidity: 20%–80% (no condensation)

Remote control unit

Power supply

3 V DC (UM-3 (AA) battery x 2)

Operation range

Approx. 7 m (23´) when operated from directly in front of the signal receptor

Dimensions

52 x 200 x 28.5 mm

(W x H x D)

(2˝ x 6-15/16˝ x 7/8˝)

Weight

170 g (6 oz.) (including batteries)

Supplied accessories

Power cord, Wireless remote control unit, Batteries for remote control (UM-3 x 2)
