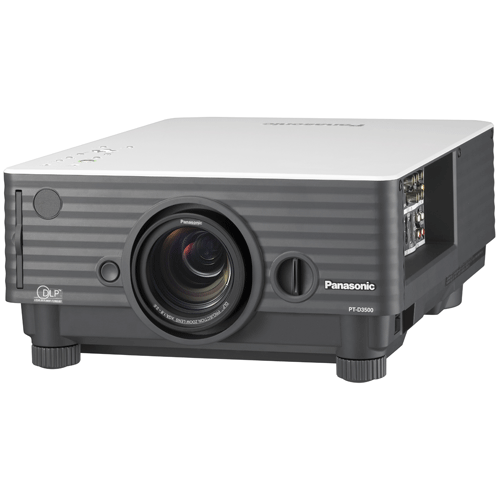

Panasonic PTD3500U DLP Video Projector panasonic pt-d3500u

Power supply:

100–240 V AC, 50/60 Hz

Power consumption:

410 W (410 VA) (10 W during standby mode with fan stopped)

DMD™ device:

Panel size:

0.7˝ diagonal (4:3 aspect ratio)

Display method:

DMD™ x 1, DLP™ system

Pixels:

786,432 (1,024 x 768) x 1, total of 786,432 pixels

Lens:

Powered zoom/focus lenses (1–1.36), F 1.7–2.0, f 25.6–33.8 mm

Lamp:

300 W UHM™ lamp

Screen size:

50–600 inches

Brightness:

3,500 lumens (contrast mode: high)

Contrast:

1,600:1 (full on/full off, contrast mode: high)

800:1 (full on/full off, contrast mode: normal)

Resolution:

RGB:

1,024 x 768 pixels

(1,600 x 1,200 pixels compatible, compression mode)

Video:

560 TV lines

Scanning frequency:

RGB:

Horizontal: 15–91 kHz, Vertical: 50–85 Hz,

Dot clock: Less than 108 MHz

YPB PR (YCB CR ):

480i: fH 15.75 kHz; fV 60 Hz, 576i: fH 15.63 kHz; fV 50 Hz,

480p: fH 31.5 kHz; fV 60 Hz, 576p: fH >31.25 kHz; fV >50 Hz,

720/60p: fH >45 kHz; fV >60 Hz,

1035/60i: fH >33.75 kHz; fV >60 Hz, 1080/60i: fH >33.75 kHz; fV >60 Hz,

1080/50i: fH >28.13 kHz; fV >50 Hz

S-Video/Video:

Horizontal: 15.75/15.63 kHz, Vertical: 50/60 Hz,

(PAL, PAL60, PAL-M, PAL-N, SECAM, NTSC, NTSC4.43)

Optical axis shift:

Horizontal (manual) and vertical (powered),

horizontal: 6:4– 4:6, vertical: 0:10 –10:0

Keystone correction range:

Vertical: ±30°

Installation:

Ceiling/floor, front/rear

Terminals:

DVI-D IN:

DVI-D 24-pin x 1

DVI-D AUDIO IN:

M3 (L, R) x 1, 0.5 Vrms

RGB1 IN:

5 BNC x 1

R, G, B:

G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75Ω >, B, R: 0.7 Vp-p, 75Ω

HD, VD/SYNC: TTL (positive/negative)

Y, PB >, PR >:

Y: 1.0 p-p (sync signal included), 75Ω >, PB >, PR >: 0.7 Vp-p, 75Ω

RGB1 AUDIO IN:

M3 (L, R) x 1, 0.5 Vrms

RGB2 IN:

D-sub HD 15-pin x 1

R, G, B:

0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75Ω >, B, R: 0.7 Vp-p, 75Ω

HD, VD/SYNC: 75Ω >, TTL (positive/negative polarity)

Y, PB >, PR >:

Y: 1.0 p-p, 75Ω >, PB >, PR >: 0.7 Vp-p, 75Ω

RGB2 AUDIO IN:

M3 (L, R) x 1, 0.5 Vrms

VIDEO IN:

RCA pin x 1, 1.0 Vp-p, 75Ω

VIDEO AUDIO IN:

RCA pin (L, R) x 1, 0.5 Vp-p, 75Ω

S-VIDEO IN:

Mini DIN 4-pin x 1, Y: 1.0 Vp-p, C: 0.286 Vp-p, 75Ω

S-VIDEO AUDIO IN:

RCA pin (L, R) x 1, 0.5 Vp-p, 75Ω

SERIAL IN:

D-sub 9-pin x 1 (RS-232C compliant) for external controller

REMOTE 1 IN:

M3 jack x 1 for wired remote control

REMOTE 2 IN:

D-sub 9-pin x 1 for external control (parallel)

LAN:

RJ-45 x 1

Power cord length:

3.0 m (9.8´)

Cabinet material:

Molded plastic (ABS/PC)

Dimensions (W x H x D):

332 x 168 x 425 mm (13-1/16˝ x 6-5/8˝ x 16-23/32˝)

Weight:

7.9 kg (17.4 lbs)

Operating temperature:

0°–40°C (32°–104°F)

Operating humidity:

20%–80% (no condensation)
