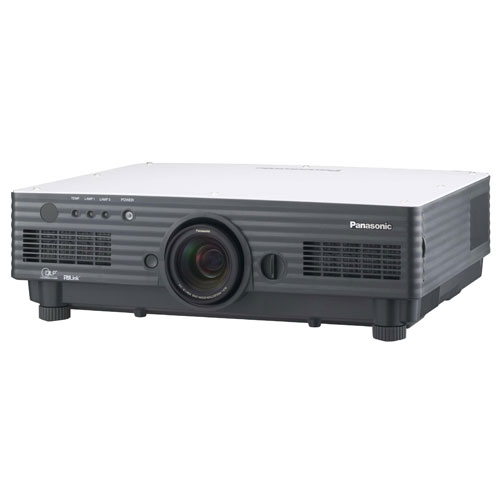

Panasonic PTD5600U Dlp Projector panasonic pt-d5600u

KEY POINTS - PTD5600U Panasonic 5000 ANSI Lumens Dual Lamp DLP Video Projector:

Native 1024 x 768 XGA resolution

5,000 ANSI lumens brightness

Up to 2000:1 contrast ratio

Vivid Color Control technology for higher uniformity of brightness by as much as 15%

3D Color Management automatically corrects color saturation, hue and brightness, resulting a more accurate image reproduction

BriteOptic dual-lamp system reduces downtime

Weighs an industry-leading 32 lbs (with lens) for easy installation and improved portability

Optional long-life lamps - each providing up to 4,000 hours of use (in low lamp mode)

Side access to dust filter and back-panel access to lamps for easy maintenance

Optional lenses with easy lens replacement

Multiple inputs terminals including DVI-D (w/HDCP)

Wired LAN system

SUMMARY - Panasonic ptd5600u 5000 ANSI Lumens Dual Lamp DLP Video Projector:

The Panasonic PT-D5600U projector takes image quality, reliability and performance to an even higher level. Building on the highly reliable DLP single-chip technology, the PT-D5600U uses newly designed features to deliver even more spectacular image reproduction, in a low maintenance, high performance package -- two trademarks that you have come to expect from Panasonic.

Designed to deliver stunning image quality in an easy-to-move package weighing only 32 lbs, the Panasonic PT-D5600U projects a bright and crisp 5,000 lumens at a crystal clear 1024 x 768 resolution. . And with innovative technologies like our proprietary Liquid Cooling System and our Vivid Control technology, you'll enjoy bright, clear projected images in virtually any location and environment. This makes the PT-D5600U ideal for conference rooms, auditoriums, theaters, and houses of worship where you're making more than a presentation -- you're making a difference.

DETAILED SPECS - PANASONIC PT-D5600U DLP PROJECTOR:

Main Unit

Panel size

0.7˝ diagonal (4:3 aspect ratio)

Display method

DMD x 1, DLP system

Pixels

786,432 (1,024 x 768) x 1, total of 786,432 pixels

Lamp

300 W UHM lamps (x 2) (dual lamp system)

Brightness

5,000 lumens (dual lamp, high power mode)

Centre-to-corner uniformity ratio

90%

Contrast

2,000:1 (full on/full off, contrast mode: high)
1,000:1 (full on/full off, contrast mode: normal)

Screen Size

50-600 inches

Optical axis shift

Horizontal (manual) and vertical (powered), Horizontal: ±10% (6:4 – 4:6), vertical: 0– 50% (0:10 –10:10)

Keystone correction range

Vertical: ±30° (with standard lens)

Installation

Ceiling/floor, front/rear

Lens

Powered zoom/focus lenses (1:1.8–1:2.5), F 1.7–2.0, f 25.6–33.8 mm

Scanning frequency

S-Video/Video

Horizontal: 15.75/15.63 kHz, Vertical: 50/60 Hz, (NTSC, NTSC4.43, PAL, PAL60, PAL-N, PAL-M, SECAM)

PC (RGB)

Horizontal: 15–91 kHz, Vertical: 50–85 Hz, Dot clock: 108 MHz or lower

YPBPR (YCBCR)

480i: fH 15.75 kHz; fV 60 Hz, 576i: fH 15.63 kHz; fV 50 Hz,

480p: fH 31.5 kHz; fV 60 Hz, 576p: fH 31.25 kHz; fV 50 Hz,

720/60p: fH 45 kHz; fV 60 Hz, 720/50p: fH 37.5 kHz; fV 50 Hz,
1035/60i: fH 33.75 kHz; fV 60 Hz, 1080/60i: fH 33.75 kHz; fV 60 Hz,
1080/50i: fH 28.13 kHz; fV 50 Hz

Terminals

DVI-D IN

DVI-D 24-pin x 1, DVI 1.0 compliant, HDCP compatible, for single link only

S-VIDEO IN

Mini DIN 4-pin x 1, Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms

VIDEO IN

BNC x 1, 1.0 Vp-p, 75 ohms

RGB 1 IN

BNC x 5

RGB 2 IN

D-sub HD 15-pin x 1

SERIAL IN

D-sub 9-pin x 1 (RS-232C compliant) for external controller

SERIAL OUT

D-sub 9-pin x 1 (RS-232C compliant) for external controller

REMOTE 1 IN

M3 jack x 1 for wired remote control or link control

REMOTE 1 OUT

M3 jack x 1 for link control

REMOTE 2 IN

D-sub 9-pin x 1 for external control (parallel)

LAN

RJ-45 x 1, compliant with PJLink, 10Base-T/100Base-TX

Technical

On-screen menu languages

9 languages: English, French, German, Spanish, Italian, Russian, Korean, Chinese, and Japanese

Noise

35 dB (high lamp power mode), 29 dB (low lamp power mode)

Dimensions (W x H x D)

530 x 167 x 429 mm (20-7/8˝ x 6-9/16˝ x 16-7/8˝) (without lens)

Operating temperature

0°–45°C (32°–113°F)

Operating humidity

20%–80% (no condensation)

Power supply

120 V AC, 50/60 Hz

Power consumption

770 W (770 VA) (10 W during standby mode with fan stopped)

Weight

14.5 kg (32.0 lbs) (with supplied lens)

Supplied Accessories

Power cord, Wireless/wired remote control unit, Batteries for remote control (x 2)
