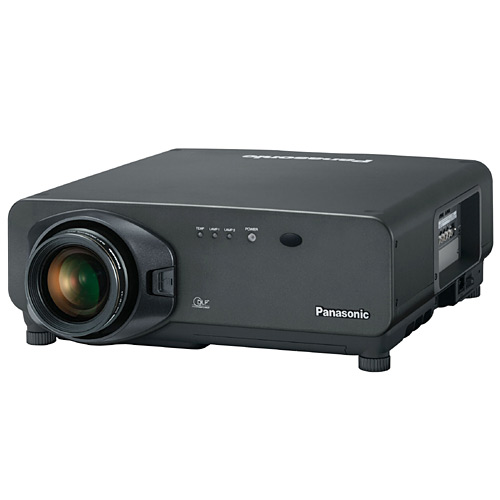

Panasonic PTD7700U Fixed Installation DLP Video Projector pt

Power supply:

North America

120 V AC, 60 Hz

Europe

220–240 V AC, 50/60 Hz

Power consumption:

800 W (800 VA) (North America: 12 W during standby mode with fan

stopped, Europe: 15 W during standby mode with fan stopped)

DMD device:

Panel size:

0.95˝ diagonal (4:3 aspect ratio)

Display method:

DMD (x 3, R/G/B), DLP™ system

Pixels:

1,470,000 (1,400 x 1.050) x 3, total of 4,410,000 pixels

Lens:

Optional powered zoom/focus lenses

Lamp:

300 W UHM™ lamps (x 2) (BriteOptic™ Dual Lamp System)

Screen size:

70–600 inches diagonally

Brightness:

7,000 lumens (dual lamp, high power mode)

Contrast:

4,000:1 (full on/full off, dynamic iris on)

Resolution:

RGB:

1,400 x 1,050 pixels

(1,600 x 1,200 pixels compatible, compression mode)

Video:

560 TV lines

Scanning frequency:

RGB:

Horizontal: 15–100 kHz, Vertical: 24–120 Hz,

Dot clock: 20 –162 MHz

YPBPR (YCBCR):

480i: fH 15.75 kHz; fV 60 Hz, 576i: fH 15.63 kHz; fV 50 Hz,

480p: fH 31.5 kHz; fV 60 Hz, 576p: fH 31.25 kHz; fV 50 Hz,

720/60p: fH 45 kHz; fV 60 Hz,

1035/60i: fH 33.75 kHz; fV 60 Hz, 1080/60i: fH 33.75 kHz; fV 60 Hz,

1080/50i: fH 28.13 kHz; fV 50 Hz, 1080/25p: fH 28.13 kHz; fV 25 Hz,

1080/24p: fH 27 kHz; fV 24 Hz, 1080/24sF: fH 27 kHz; fV 48 Hz,

1080/30p: fH 33.75 kHz; fV 30 Hz

S-Video/Video:

Horizontal: 15.75/15.63 kHz, Vertical: 50/60 Hz,

(PAL, PAL60, PAL-M, PAL-N, SECAM, NTSC, NTSC4.43)

Optical axis shift*:

Horizontal: ±30%, Vertical: ±50%, powered

Keystone correction range:

Vertical: ±40° (with the ET-D75LE2)

Terminals:

RGB1 IN:

BNC x 5

R, G, B:

0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75Ω,

HD/VD/SYNC: 1.4 Vp-p–5.0Vp-p, 75Ω Ω(positive/negative)

Y, PB, PR:

Y: 1.0 p-p, 75Ω, PB,/PR: 0.7 Vp-p, 75Ω

RGB2 IN:

R, G, B:

0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75Ω,

HD/VD/SYNC: 75Ω, TTL (positive/negative pola

Y, PB, PR:

VIDEO IN:

BNC x 1, 1.0 Vp-p, 75Ω Ω

VIDEO OUT:

BNC x 1, 1.0 Vp-p, 75Ω, active through

S-VIDEO IN:

Mini DIN 4-pin x 1, Y: 1.0 Vp-p, C: 0.286 Vp-p, 75Ω

SERIAL:

D-sub 9-pin x 1 (RS-232C/422 compliant) for external controller

REMOTE 1 IN:

M3 jack x 1 for wired remote control or link control

REMOTE 1 OUT:

M3 jack x 1 for wired remote control or link control

REMOTE 2 IN:

D-sub 9-pin x 1 for external contro (parallel) x 1

Power cord length:

2.5 m

Cabinet material:

ABS/PC

Dimensions (W x H x D):

530 x 200 x 540 mm (20-7/8˝ x 7-7/8˝ x 21-9/32˝) (without projection lens)

Weight:

22 kg (48.5 lbs) (without projection lens)

Operating temperature:

0°–40°C (32°–104°F)

0°–35°C (32°–95°F) (dual lamp, lamp power: high)

Operating humidity:

10%–80% (no condensation)

Remote Control Unit

Number of keys:

32 keys, 46 functions

Power supply:

3 V DC (AA-size battery x 2)

Operation range:

Wireless: approx. 7 m when operated from directly in front of the signal

receptor), wired: approx. 15 m

Dimensions (W x H x D):

50 x 31 x 181 mm (1-31/32˝ x 1-7/32˝ x 7-1/8˝)

Weight:

Approx. 110 g (3.9 oz.) (including batteries)

Supplied Accessories

Power cord, Wireless/wired remote control unit, Remote control cable

(15 m), Batteries for remote control (x 2)

Optional Accessories:

Replacement lamp unit:

ET-LAD7700 (1 unit)

ET-LAD7700W (set of two lamps)

Replacement long-life lamp unit:

ET-LAD7700L (1 unit)

ET-LAD7700LW (set of two lamps)

Ceiling mount bracket:

ET-PKD75 (for high ceilings)

ET-PKD75S (for low ceilings)

Dual stacking mount bracket:

ET-DFD75

Carrying handle:

ET-HAD75

Zoom lens (1.5–2.0:1):

ET-D75LE1

Zoom lens (2.0–3.0:1):

ET-D75LE2

Zoom lens (3.0–5.0:1):

ET-D75LE3

Zoom lens (5.0–8.0:1):

ET-D75LE4

Zoom lens (8.0–15.0:1):

ET-D75LE8

Fixed-focus lens (0.8:1):

ET-D75LE5

DVI/Network board:

ET-MD77DV

Network board:

ET-MD77NT

SDI/Network board:

ET-MD77SD1 (480i,576i)

HD/SDI/Network board:

ET-MD77SD3 (720/60p, 720/50p, 1035/60i, 1080/60i, 1080/50i,1080/25p,

1080/24p, 1080/24sF, 1080/30p)

Wireless remote receiver:

ET-RMRC2

Optional board slot:

ET-MD77NT

LAN:

RJ-45 x 1, 10Base-T/100Base-TX, for network

ET-MD77DV

DIV-D IN:

DVI-D 24-pin x 1, DVI 1.0 compliant, HDCP compatible

EDID1: 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/25p,

1080/24p, 1080/24sF, 1080/30p

EDID2: VGA (640 x 480) Å| U-XGA (1,600 x 1,200)

LAN:

RJ-45 x 1, 10Base-T/100Base-TX, for network

ET-MD77SD1

SERIAL IN:

BNC x 1
4:2:2 digital serial component signal, SMPTE 259M compliant: 480i, 576i

SERIAL OUT:

BNC x 1, active through

LAN:

RJ-45 x 1, 10Base-T/100Base-TX, for network

ET-MD77SD3

HD SERIAL IN:

BNC x 1

4:2:2 digital serial component signal, SMPTE 259M compliant: 480i, 576i

HD digital serial component signal, SMPTE 292M compliant:720/60p, 720/50p, 1035/60i, 1080/60i, 1080/50i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p

LAN:

RJ-45 x 1, 10Base-T/100Base-TX, for network
